Introduction
This article provides a detailed explanation on how to measure the area of a selected area.
The area calculation function can be used to measure "Surface area" or "Horizontal area," depending on the area you wish to measure.
Procedures and Explanation
-

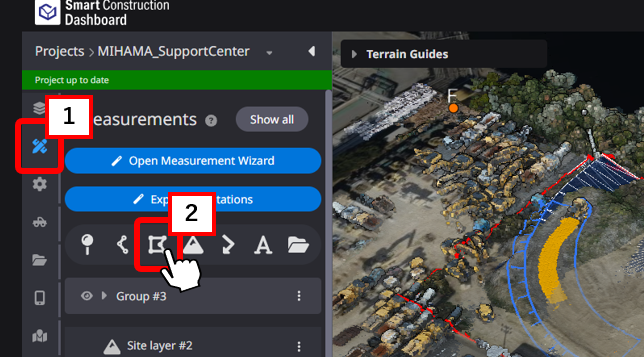

Click on the 【"1"measurement icon.】
-
Select the 【"2"polygon】

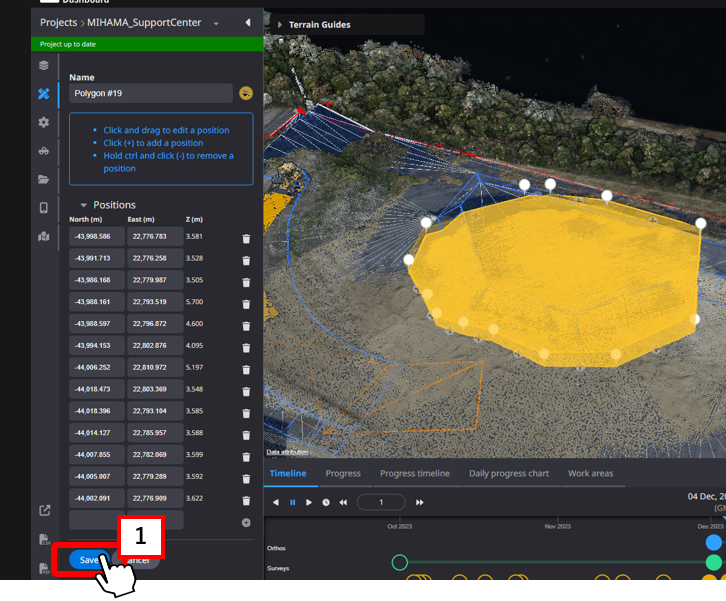

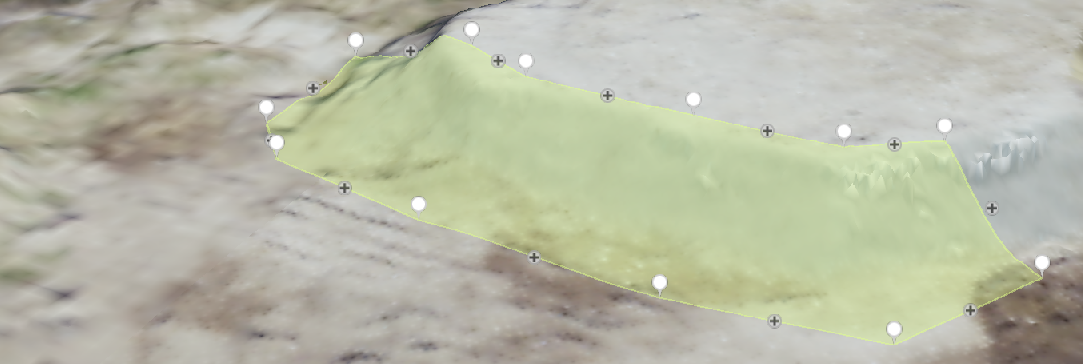

Left mouse click to enclose the desired area, right mouse click to exit and 【"1"save.】Click here to customize annotation information.3. Click on 【"1"Add new measurement.】
-

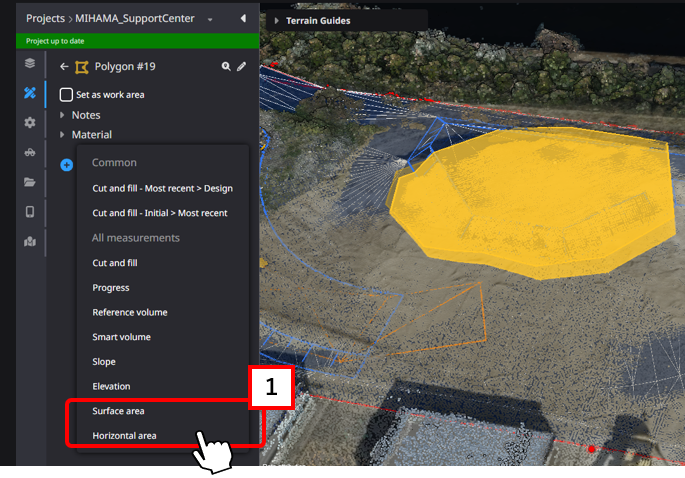

Select 【"1"Surface area or Horizontal area】 to measure.
Supplementation

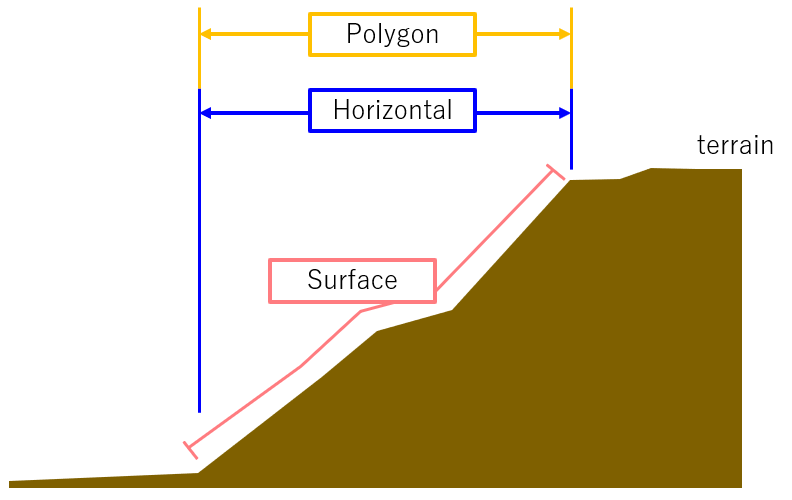

Image of Surface area and Horizontal area.
2024/2/19
Annotation Output Function
Annotation ranges created in a project can be output as DXF data
Target annotation icons
Marking, line segment, polygon, arrow, text
Output result
If multiple annotations are checked in one output, each annotation will be output as one integrated DXF file.
-

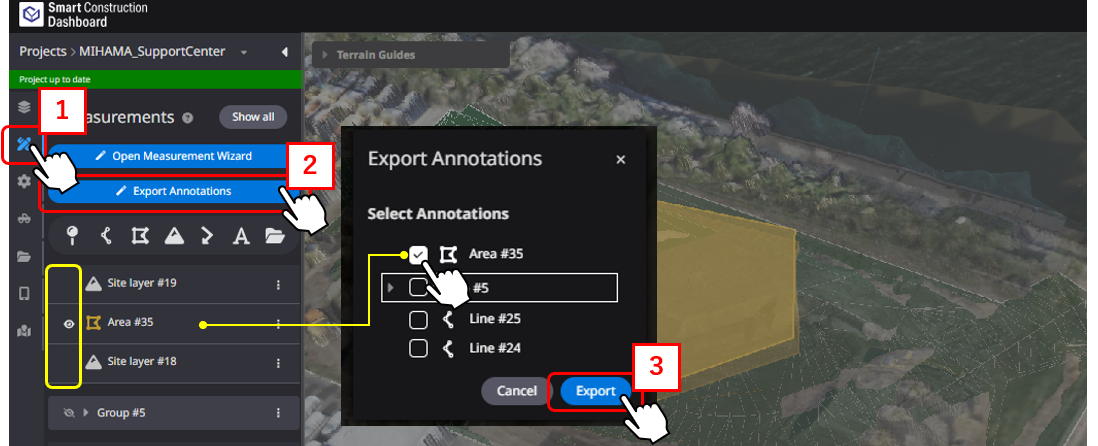

From the 【"1" Measurement,】 click on the 【"2" Export Annotations.】
-
On the appearing screen, a list of annotations that have been created will be displayed then check the annotations you wish to output, and then click the 【“3" Export】 button.
Default Settings
Annotations with the display ON (eye symbol) will be checked in the output items, while annotations with the display hidden (eye symbol with slash) will not be checked.
