How to measure cross sections on terrain data

Introduction

This article provides a detailed explanation on how to measure cross sections on selected lines.

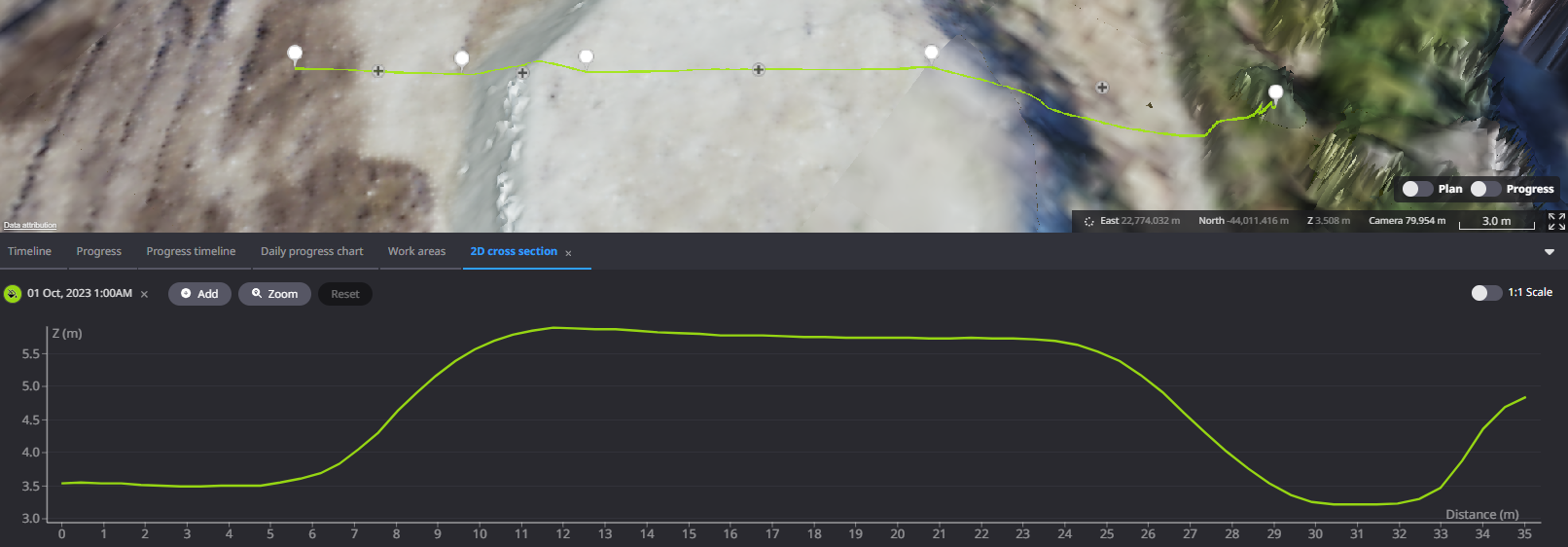

You can use annotation and measurement to display cross sections from terrain data

36778052503065




Procedures and Explanation

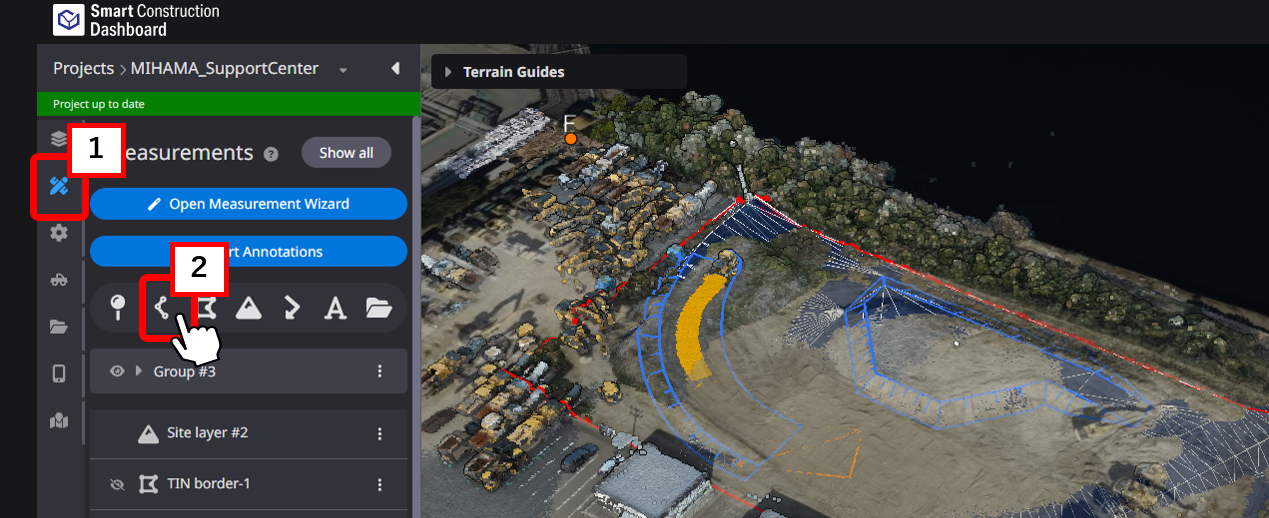

  1. Click on the 【"1"measurement icon】 in the side panel.



  1. Select 【"2"line segment】 from the annotations.Click the left mouse button to draw a section or transect line at the desired location, then right-click to close and 【"1"save.】To customize the annotation information, click here.

36778052503833

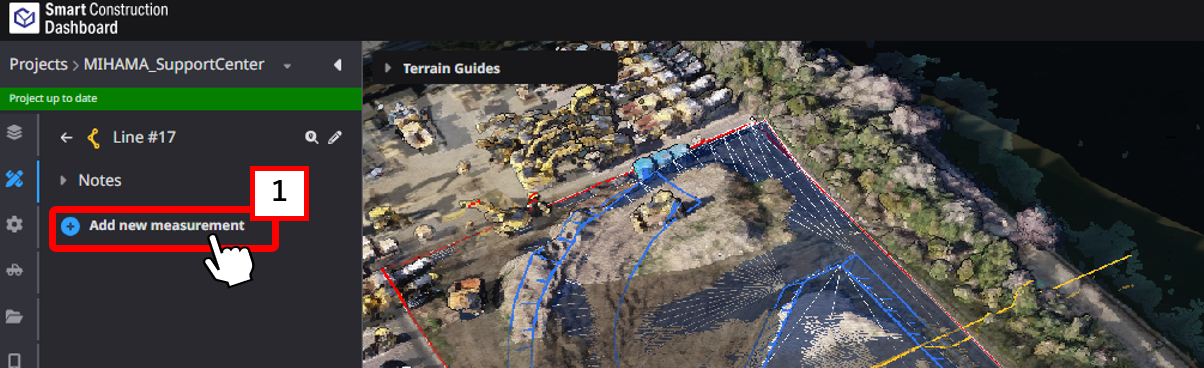

  1. Click on 【"1"Add new measurement.】

36778052508185

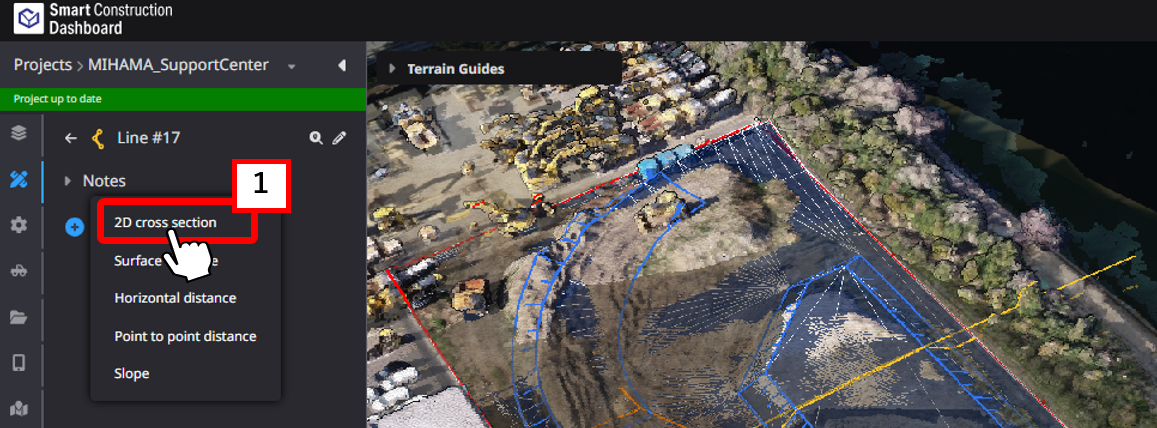

  1. Select the 【"1"2D cross section.】

36778038015001

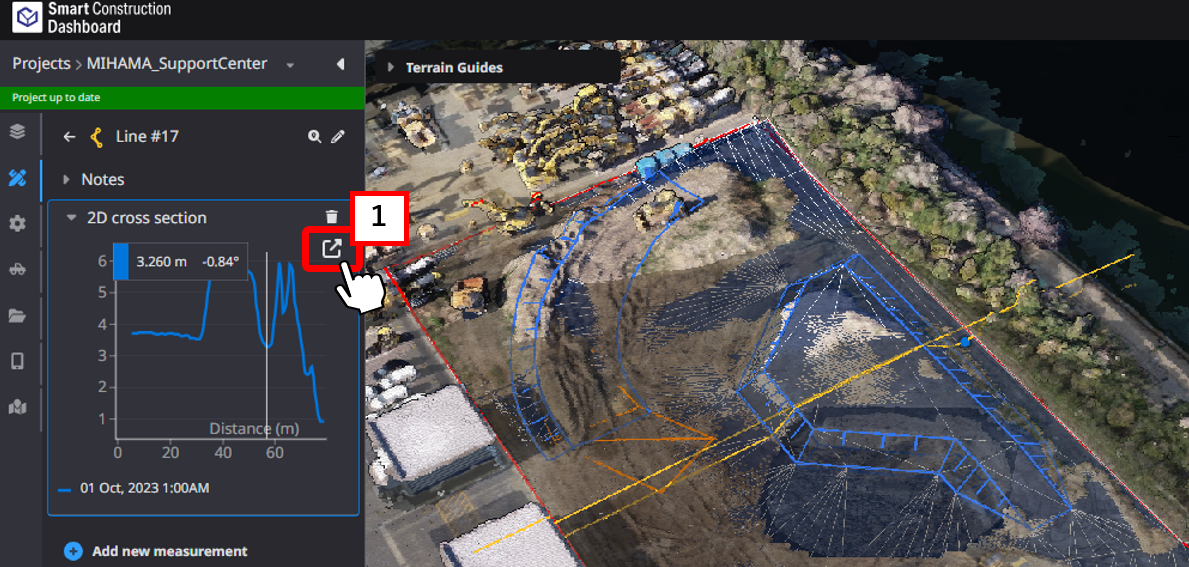

  1. Click on the 【"1"zoom button】 to display the data in the under panel.

36778038012185



1:1 Scale function

Cross-sectional scale can be displayed at 【"1" 1:1.】Cross section resolution is at 50 cm pitch intervals.

36778052507417

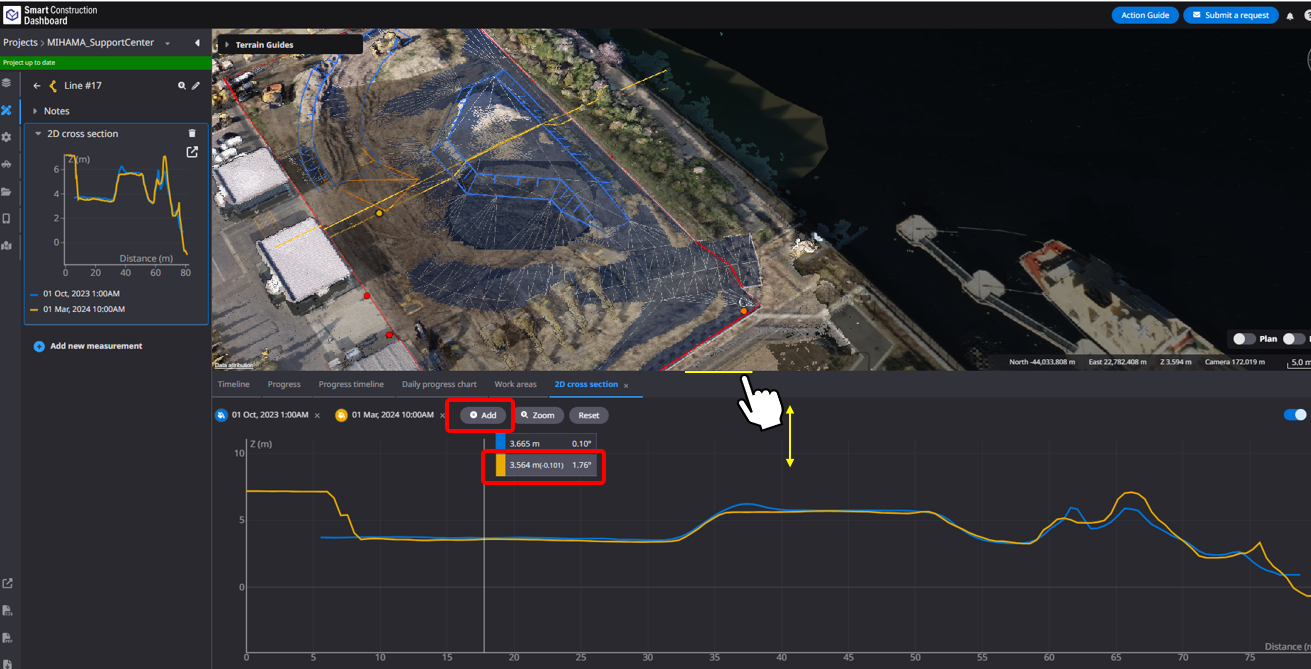

Multiple terrain and design data can be added and compared.

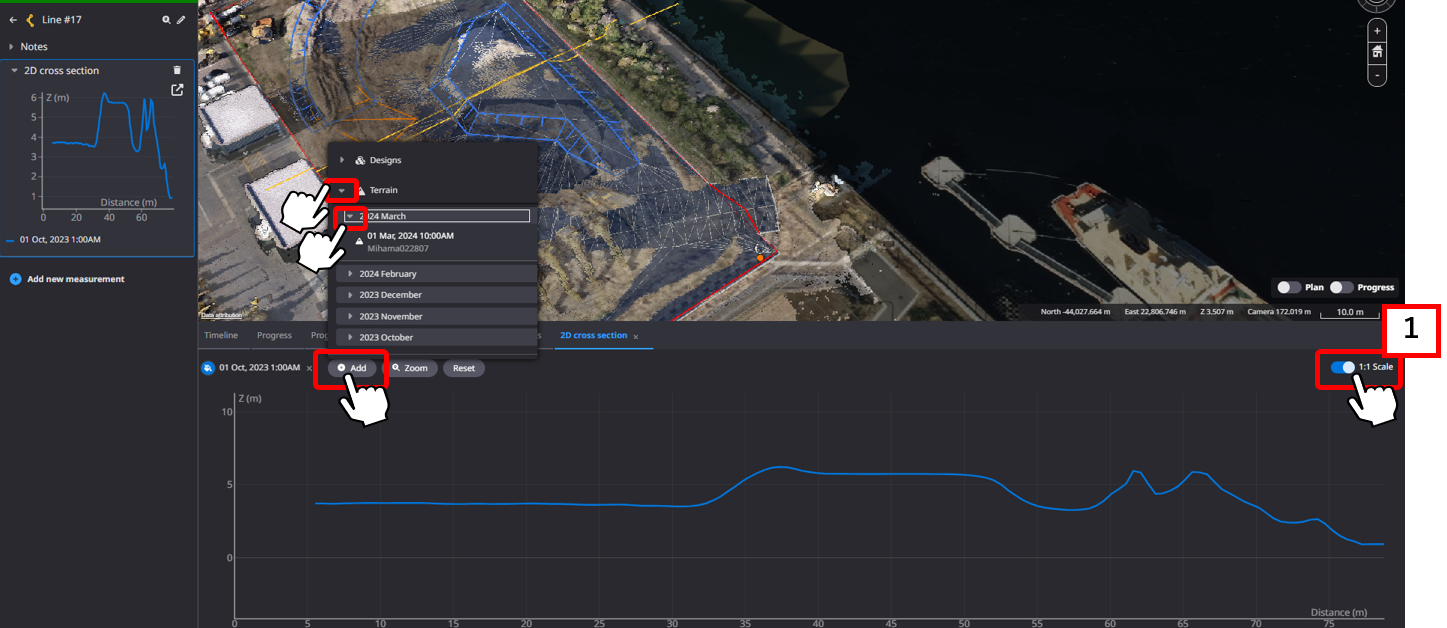

Selecting the data to be compared from the "Add" icon, the height difference from the first section added will be displayed.

36778052509465




Supplementation

Cross Section View (view point)
in case of the direction is North

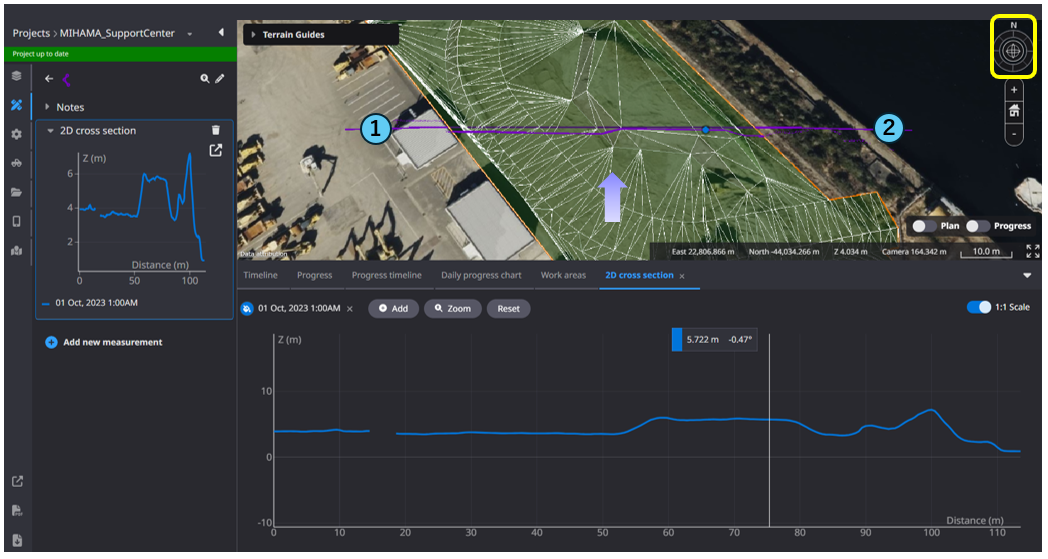

Draw lines in the order of ➀ and ②,you will see the cross section in the direction of the arrow.

in case of the direction is NorthDraw lines in the order of ➀ and ②, you will see the cross section in the direction of the arrow.Cross-sectional view (display value)The horizontal line below is used as a reference to determine and display the + direction and the - direction based on the inclination of the cross section. 【In the case of angle setting】Adjustment of display screen

36778038006937

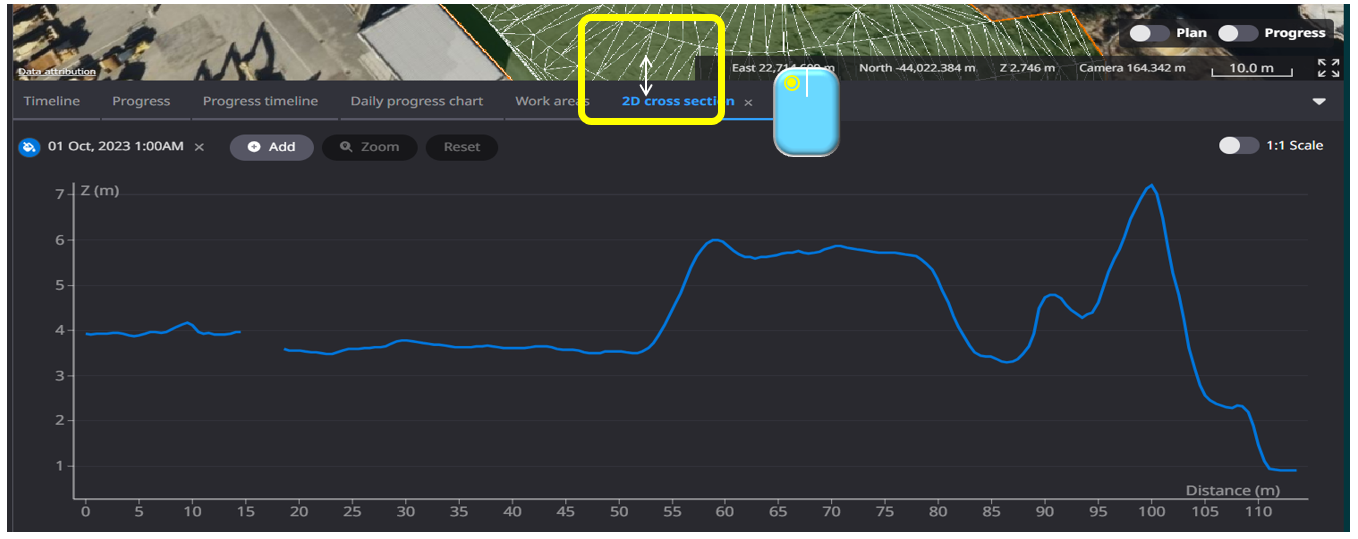

・To increase the size of the under panel display screen, drag the top of the under panel (indicated by an arrow) up.
