How to change the coordinate system (localisation/ projection)

Introduction

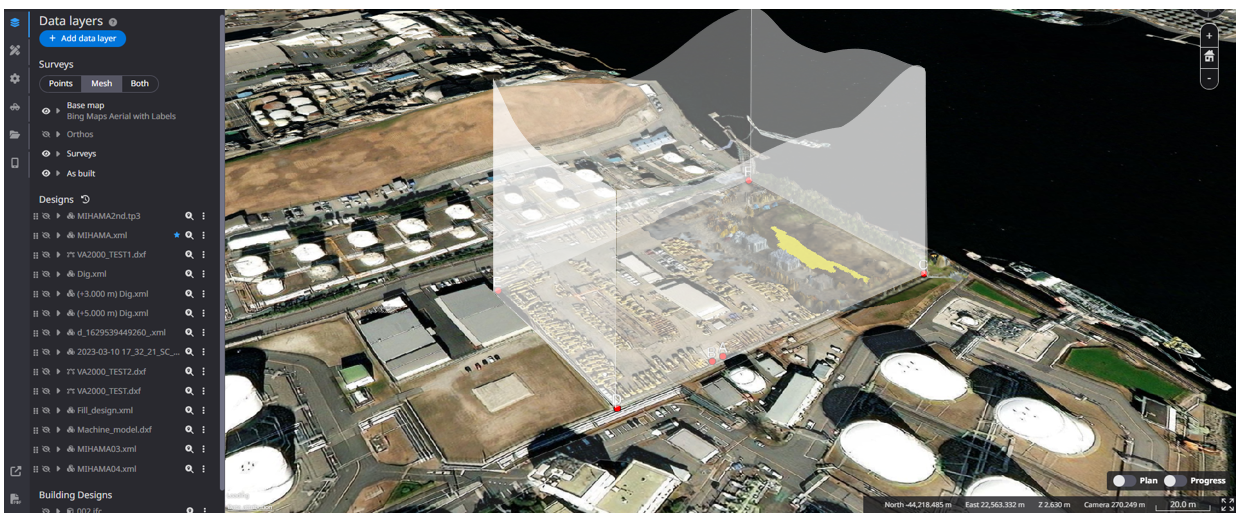

This article provides a detailed explanation on how to change the coordinate system (localization/projection).

Changing the coordinate system is mainly used when expanding the construction range or matching the coordinate system used during drone survey.

Moreover, by aligning the machinery used on-site with the survey data, you can obtain more accurate information.

36772945802393



Procedures and Explanation

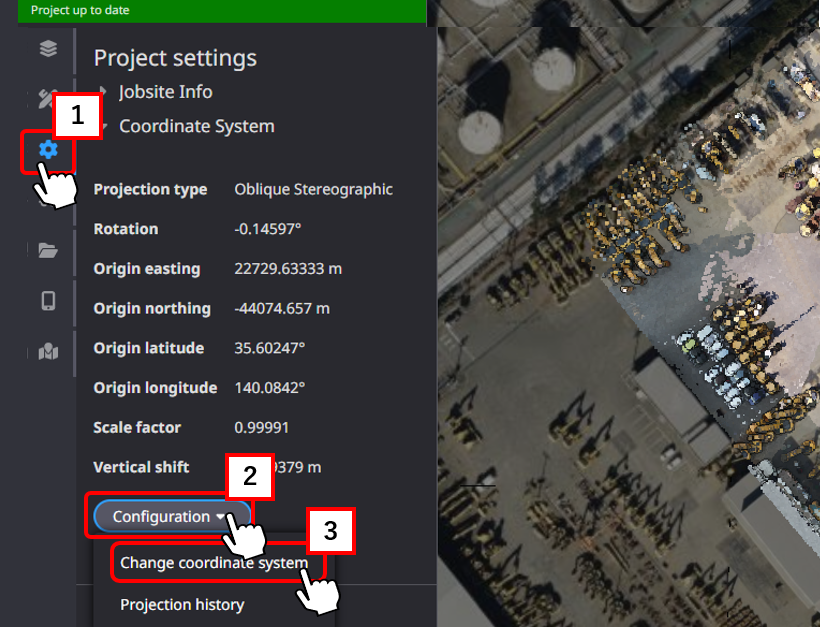

  1. Click the 【"1"settings icon】 on the side panel.



  1. Select the coordinate system from "Project Settings" and click  【"2"Configuration"】



  1. Select  【"3"Change coordinate system】 if you want to change the file.


*Past change history can be checked in "Coordinate System History".

36772970116377

  1. Change the coordinate system

For localization

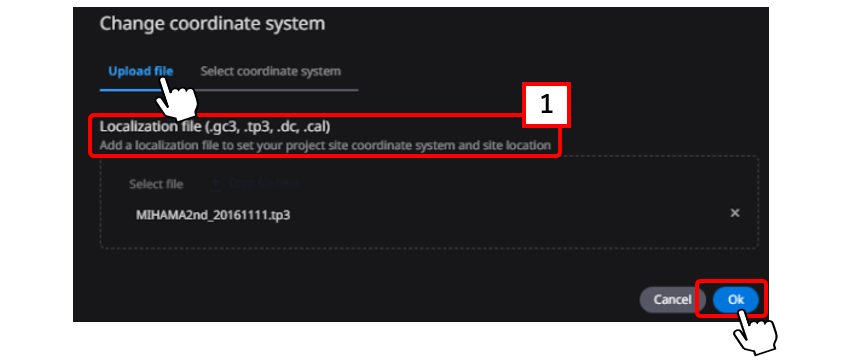

  1. 【"1"Drag and drop the additional file or upload it from a local folder】 and click 【OK.】

36772945805081

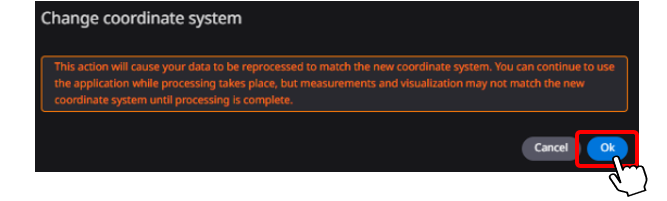

  1. Click 【OK】 to reflect the changes.For projection1') Click "Select coordinate system" to set the projection and select 【"1" Locate your site.】

36772970135961

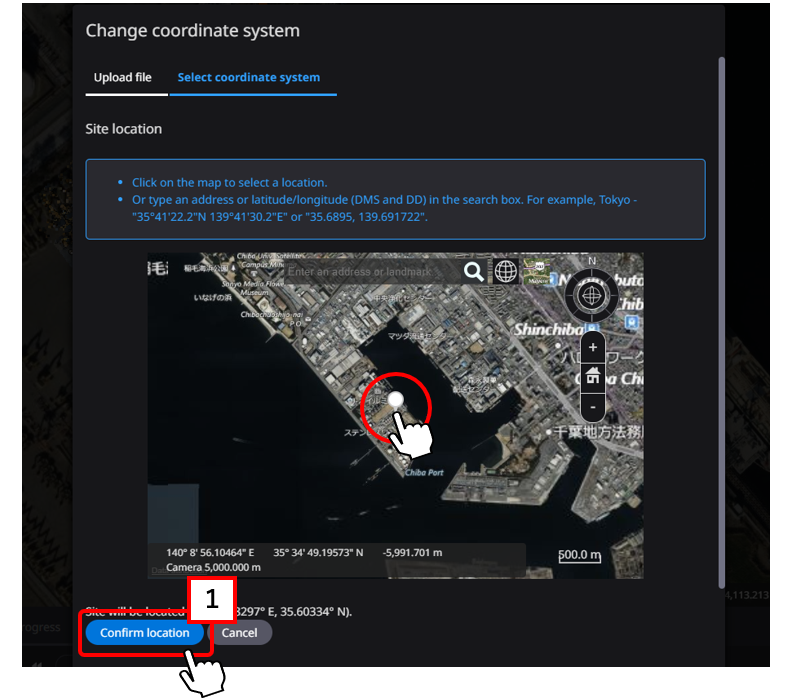

2') Set construction location by pinning, click 【"1"Confirm location】 then "OK."

36772945806873

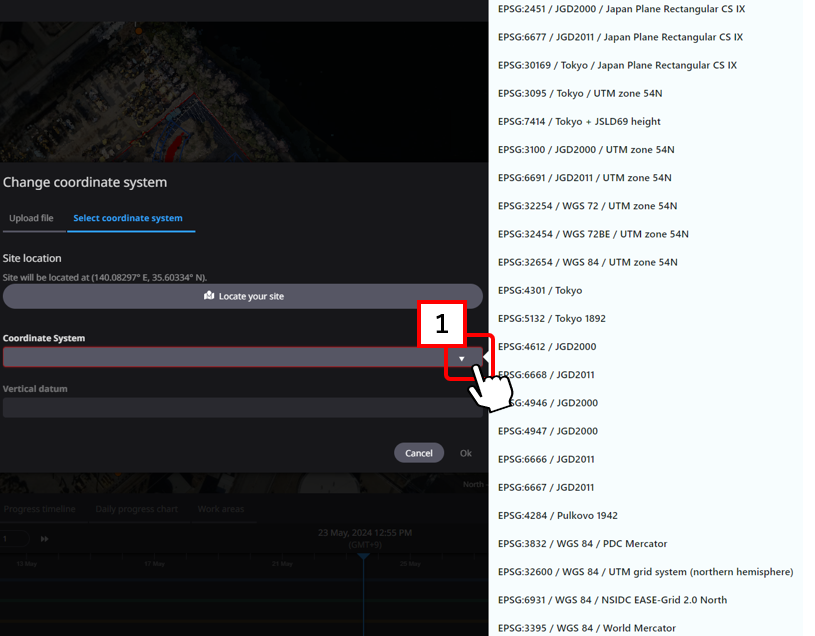

3') Select the 【"1" Coordinate system.】

36772970146969
