Introduction
This article provides a detailed explanation on how to set up a batch soil volume control for a selected area.
Using the work area in the measurement function, you can check the soil volume distribution with reference to the soil volume difference.
Procedures and Explanation
-

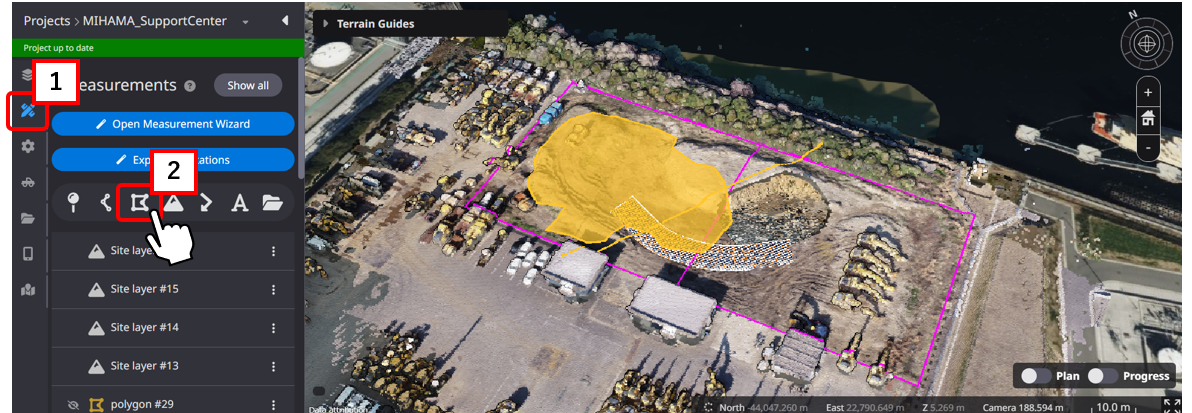

Click on the 【"1" measurement icon】 in the side panel.
-
Use the 【"2" Polygon】 to enclose the area you want to manage the soil volume.
-

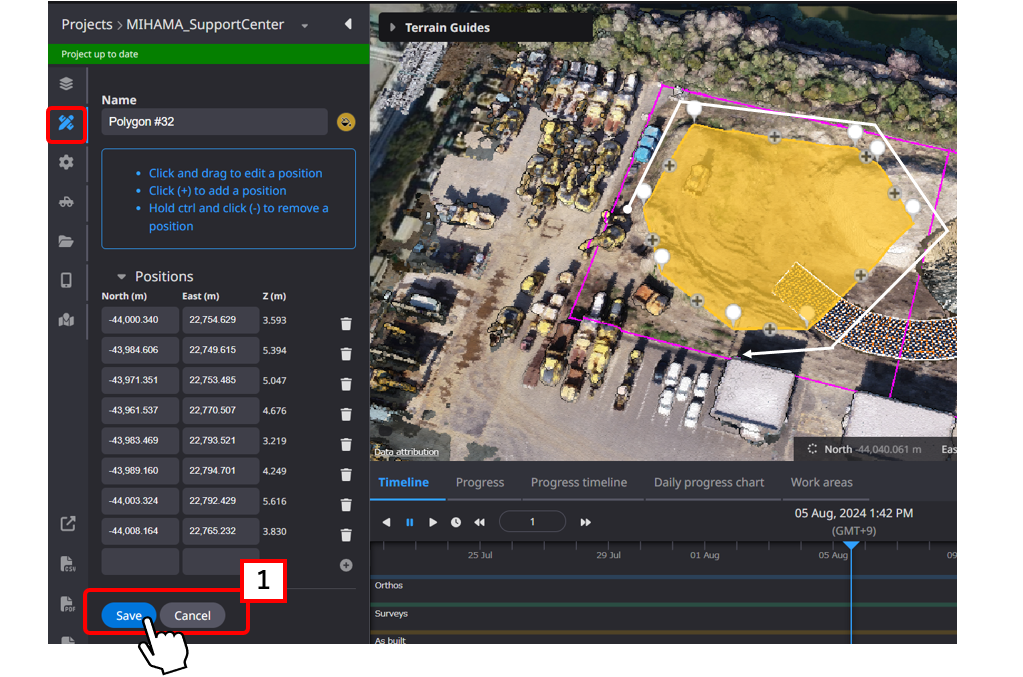

When the managing area is decided, click 【"1" Save button.】
-

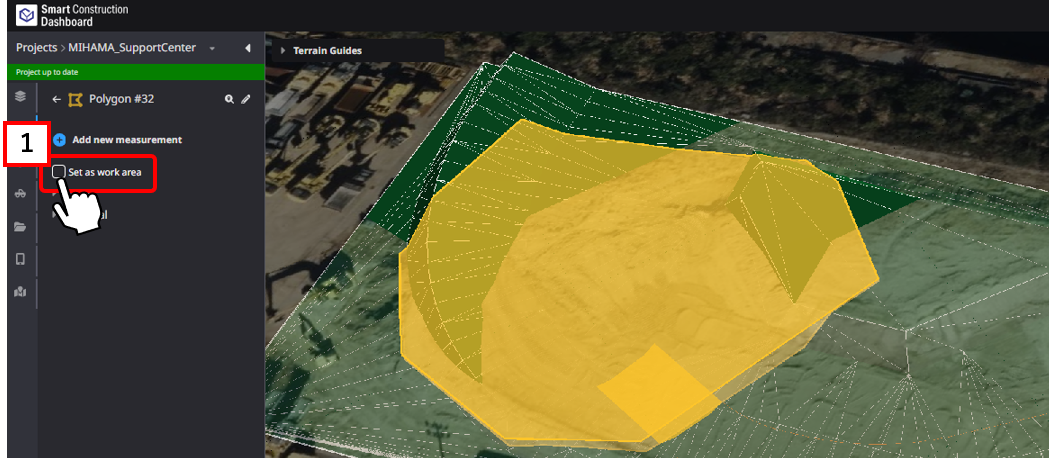

After saving, 【"1" check ”Set as work area."】
-

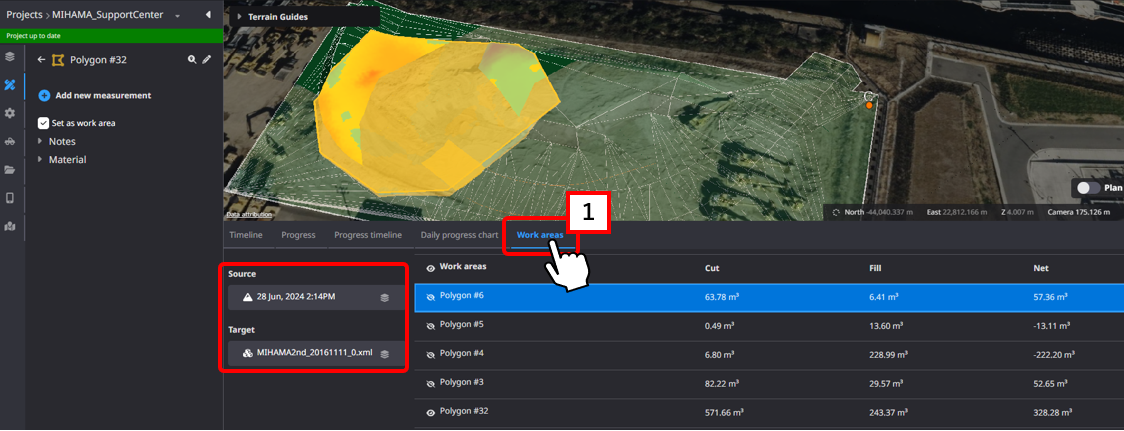

After checking, the fill, cut, and difference amount for each set area will be displayed in the 【”1" Work areas】 tag in the under panel.
The reference shape and target shape data can be replaced and recalculated.
Supplementation

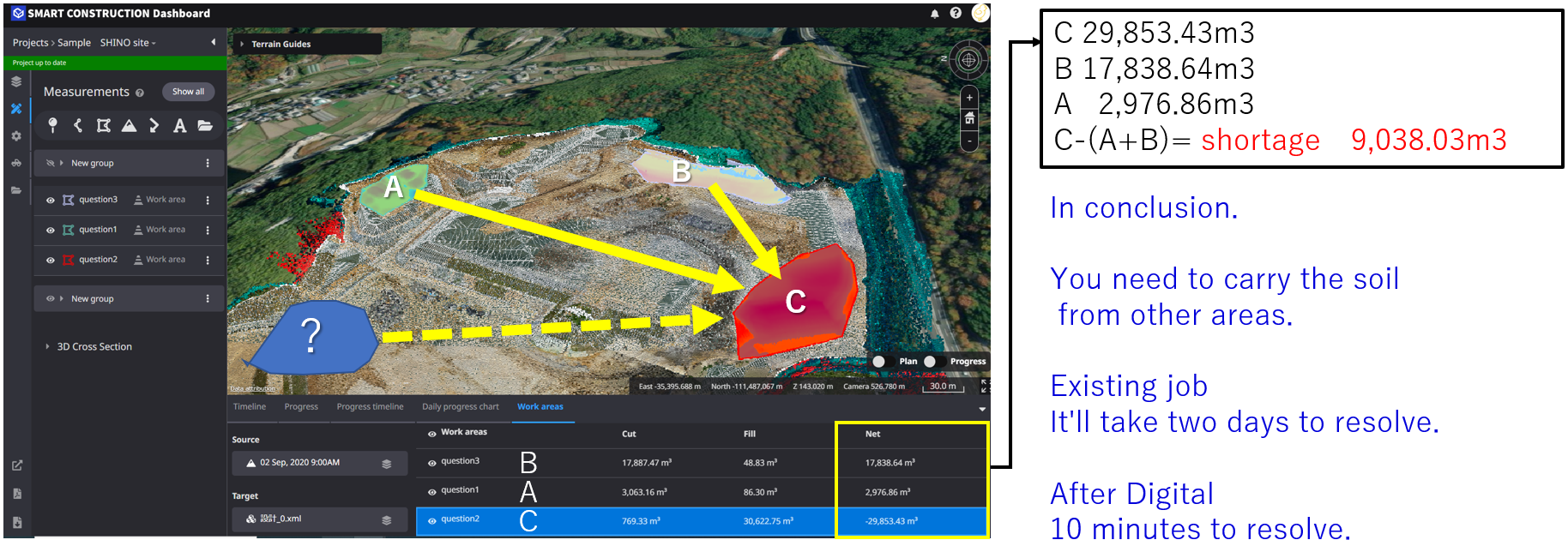

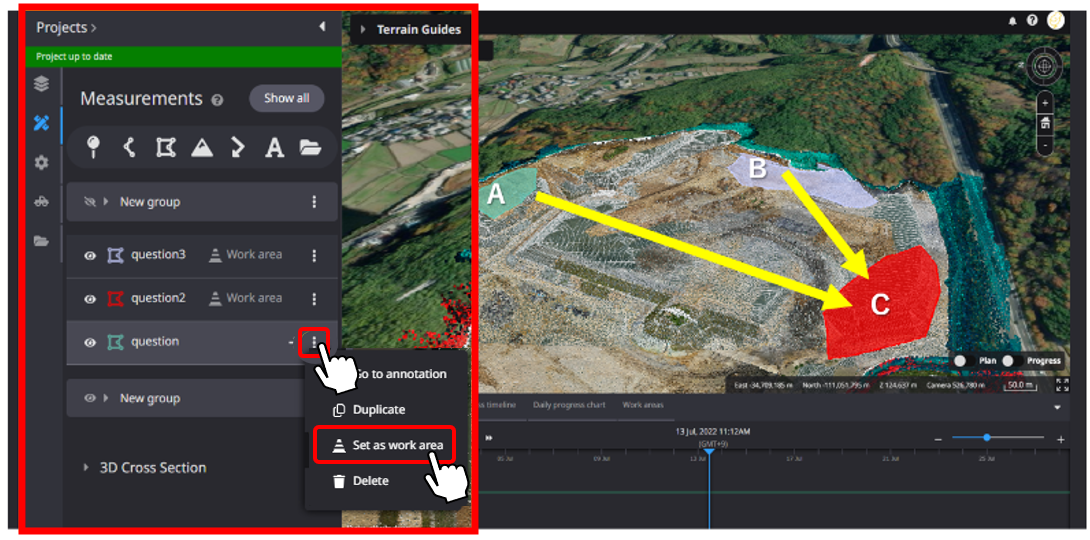

Work areas can also be saved from the menu. Saved work areas can be used to check and calculate soil volume allocations at once.
