Introduction
This article provides a detailed explanation on how to create a new project.
Setting up a new project is the initial step when using the Smart Construction Dashboard. This process is essential for every job site.
Procedures and Explanation
-

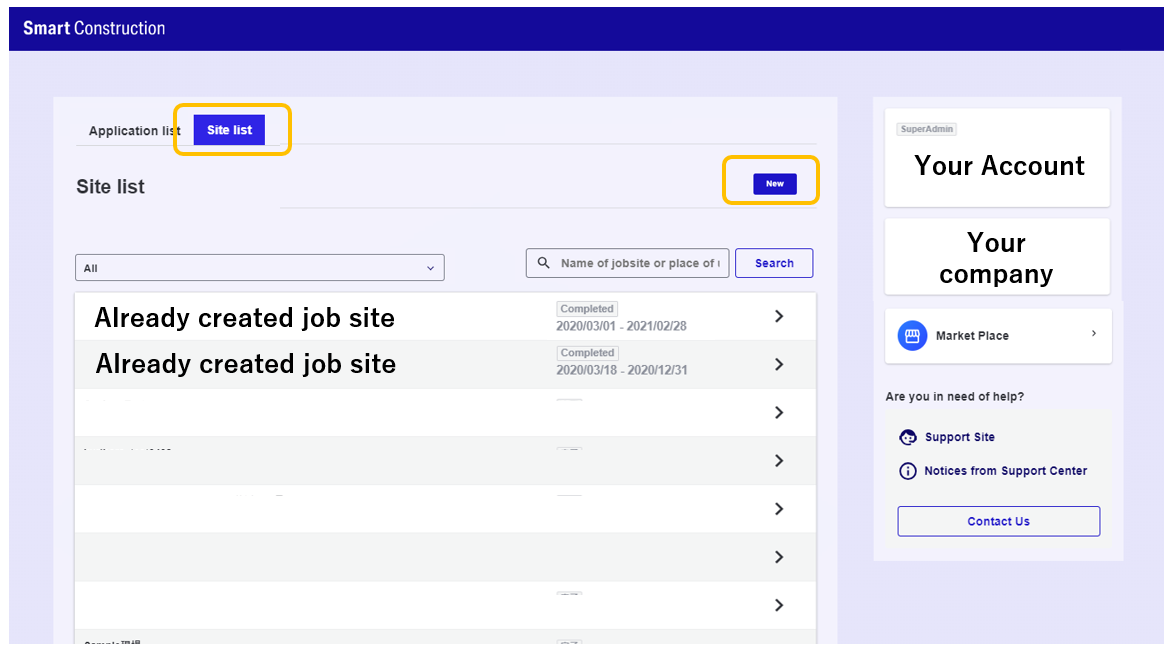

Create a job site in the 【Site list】 page of the 【Smart Construction Portal】.
Application list/ Site list

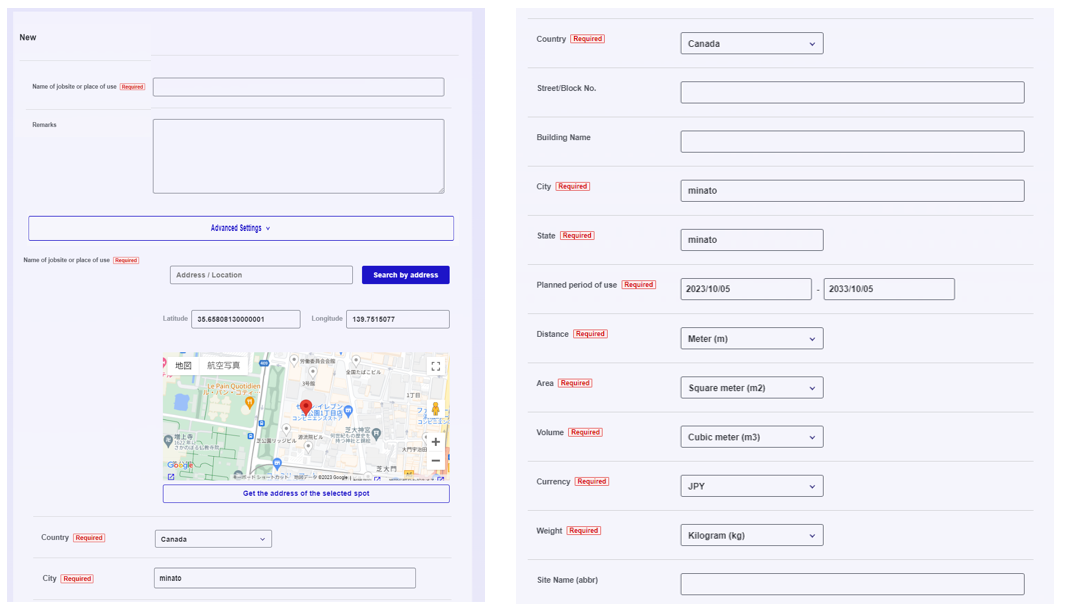

２．Enter the name to be displayed as the project site, proceed to 【Advanced Settings】 and enter the required fields.Other input information is optional.

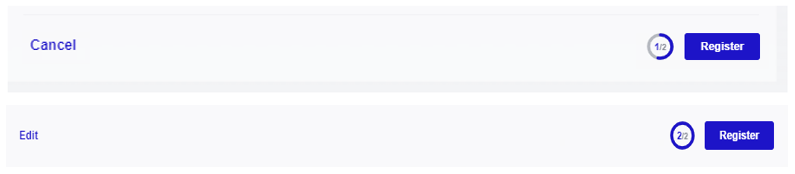

３．After entering the required items, click 【Register】, confirm the registration details, and click again.４．Click the 【Application list】 and select the purchased 【Smart Construction Dashboard】.

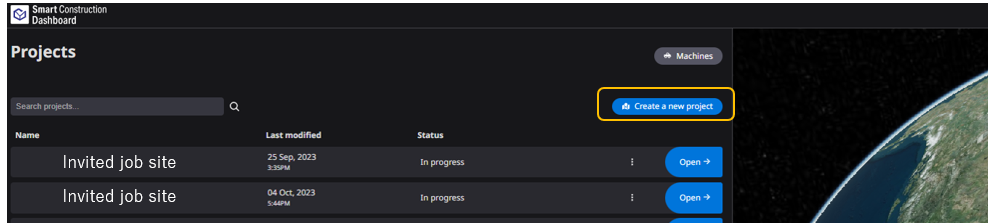

５．Click the 【Create a new project】.

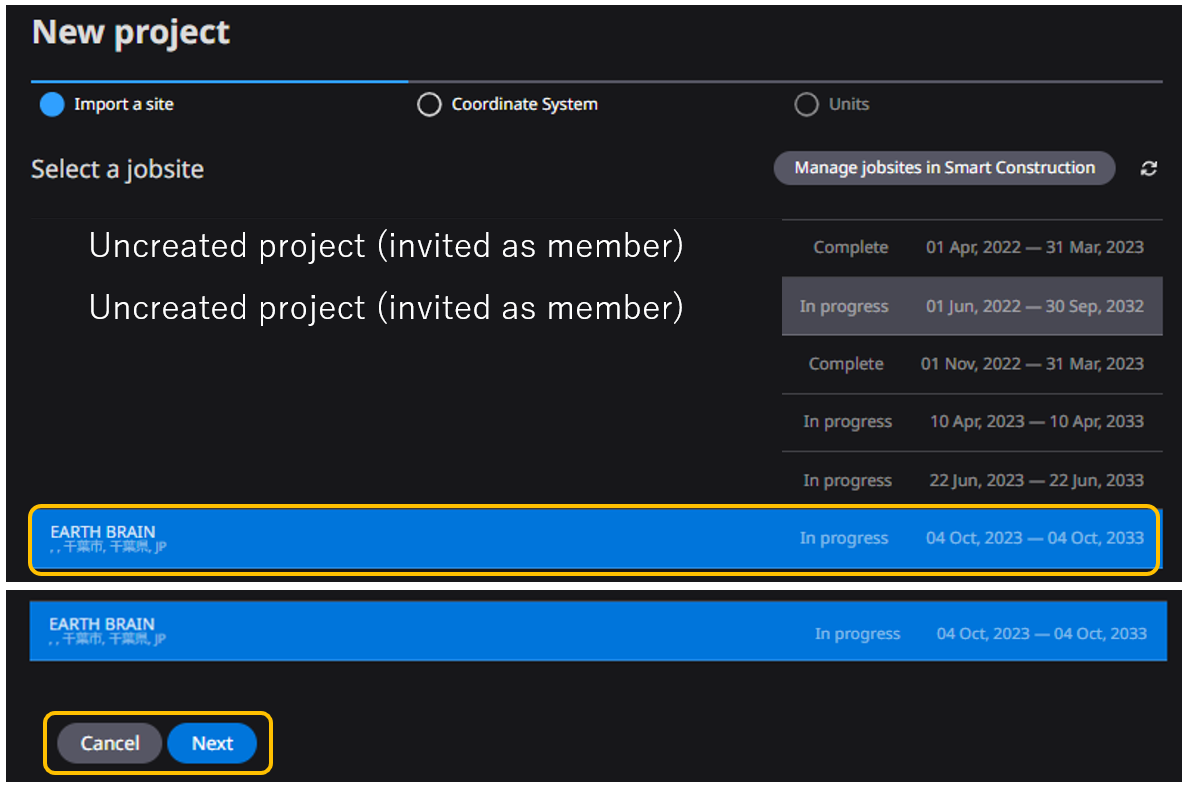

１）Select the created project and click 【Next】.(Created and invited project are already in the list.)２）Import localization file or use projection to create a project.*Localization and projection type can be changed even after creating the project.Localization file・Import the localization file and click 【Next】Projection

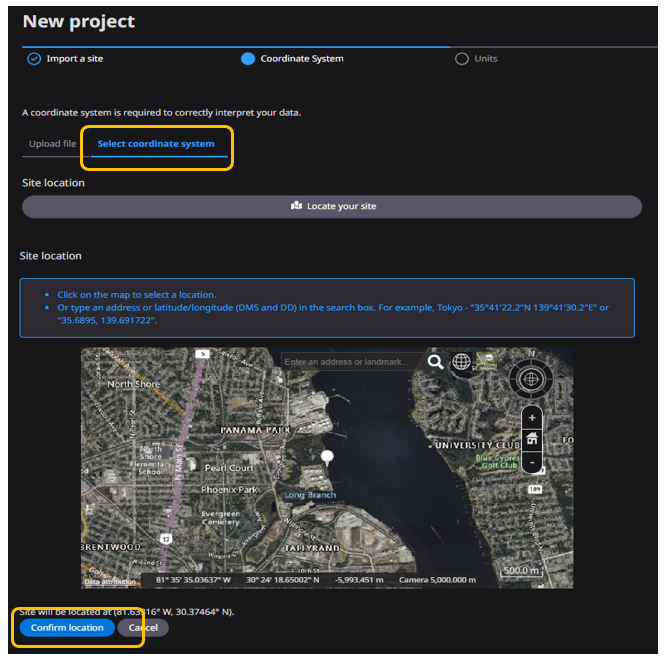

・Click 【Select coordinate system】 and locate your site on the map and install the parameter file.

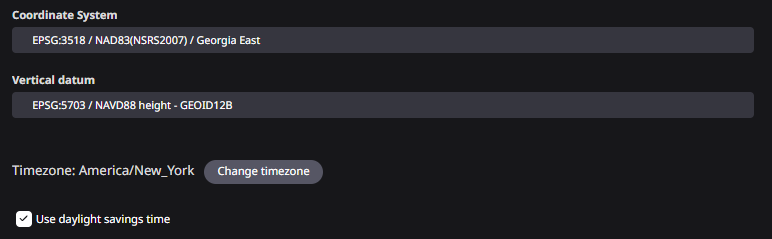

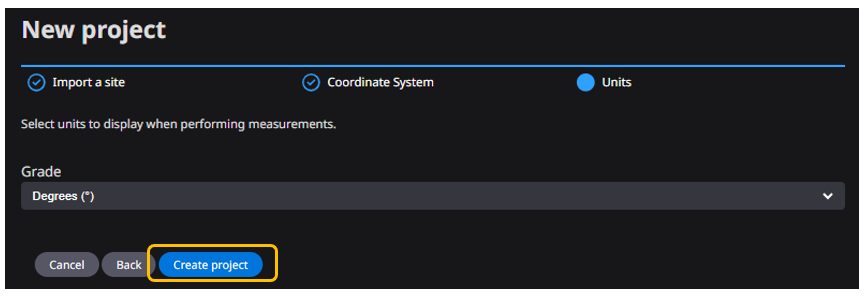

Coordinate System / Vertical detum３）Set the units to be displayed in the project site and click 【Create project】, the creation site will be displayed in the list.
