August 2024 Release - New Functions & Bug Fixes

#	Content	Target Function	Overview

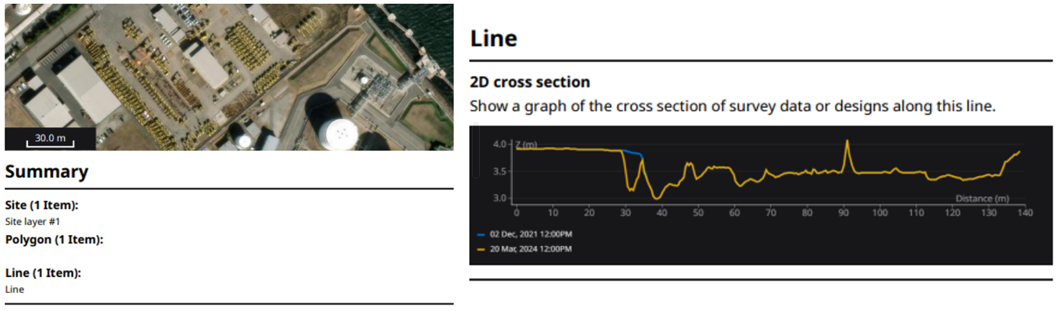

1	New	PDF report	The following improvements have been made to the PDF report -A summary page has been added to make it easier to understand the overall status of the project. -A legend has been added to the 2D cross sections. Details of release items 1. Improve PDF reporting. The following improvements have been made to make PDF reports easier to understand. Added summary page The summary page of the report can now be displayed. Added legend for 2d cross section When displaying a 2d cross section view, legend is now displayed in the lower left corner of the image.

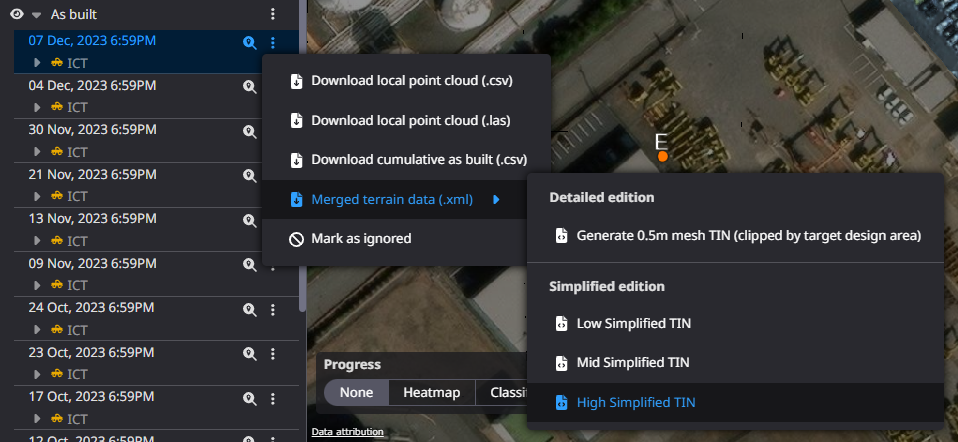

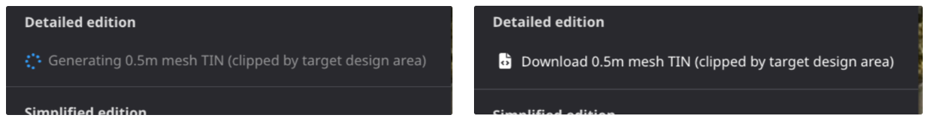

2	New	Data layer	It is now possible to clip (extract) more detailed data within the target design when downloading the integrated terrain in LandXML format. Details of release item Data is extracted and downloaded based on the selected design data within the target design area. It is now possible to download more detailed data (0.5m mesh TIN). How to use Select the option button for each survey data or construction history data within the data layer. Choose “Download merged...” from the options menu. In the expanded menu, select the “Generate 0.5m mesh TIN data (clipped by target design area)” button. The data generation process will begin. Once data generation is complete, the button name will change to “Download 0.5m mesh TIN data (clipped by target design area).” Click the button to start the download. UI Change with this release In the options menu, change the wording from “Merged terrain data.(xml)” to "simplified edition" In the expanded menu, relocate the item Low/ Mid / High simplified TIN In preparation　　　　　　　　　　　　　Ready for download
3	Bug fix	Data layer	The As-built process was sometimes not completed. This has been corrected so that the process will be completed correctly.
4	Bug fix	Measurement	When displaying the heatmap of the measurement, the following problems could occur -The heatmap is displayed slightly out of alignment with the target surface. -Incorrect heatmaps are displayed when heatmaps are displayed during tiling. (This problem occurred only for users outside of Japan) Corrected to display the heatmap properly.
5	Bug fix	Measurement	When downloading annotations as DXF files, the following problems could occur -Annotation order and folder structure were not correct. -The conversion process hangs up in the middle. Above problems were corrected so that the files could be converted and downloaded correctly.
6	Bug fix	other	When downloading screenshots from the left sidebar, screens could not be downloaded correctly. This has been fixed properly.
7	Bug fix	Data layer	Linework could not be converted to annotations when the layer name contained double-byte characters. This has been corrected so that it can be converted correctly.
8	Bug fix	Data layer	The calculation results of the smart volume sometimes changed according to the height of the camera on the 3D map. This has been corrected so that the result of calculation become same.

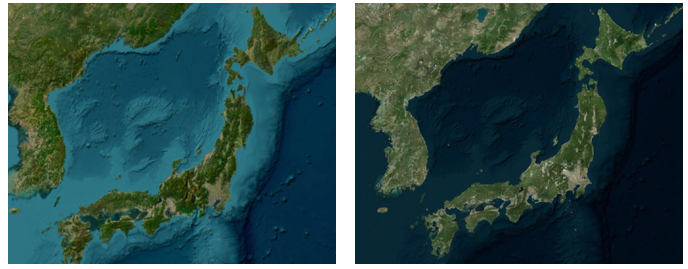

9	Others	Data layer	Changed the base Map The base map has been changed. New Before
