iMC Dozer - Transportation Requirements

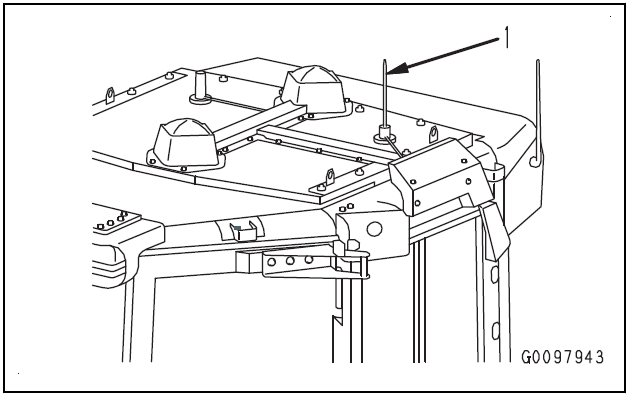

Remove radio antenna

Recommend removing radio antenna (1) pre-transporting machine to prevent damage to antenna.

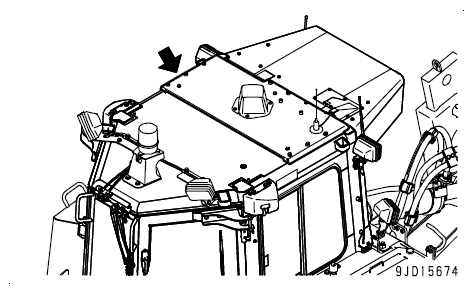

Remove bracket for GNSS Antenna

1. Stop machine on level ground

2. Turn the starting switch to OFF position

3. Turn the battery disconnect switch to OFF position

4. Remove the bracket for GNSS antenna
