Setting up a Perform Gear selection event in iControl

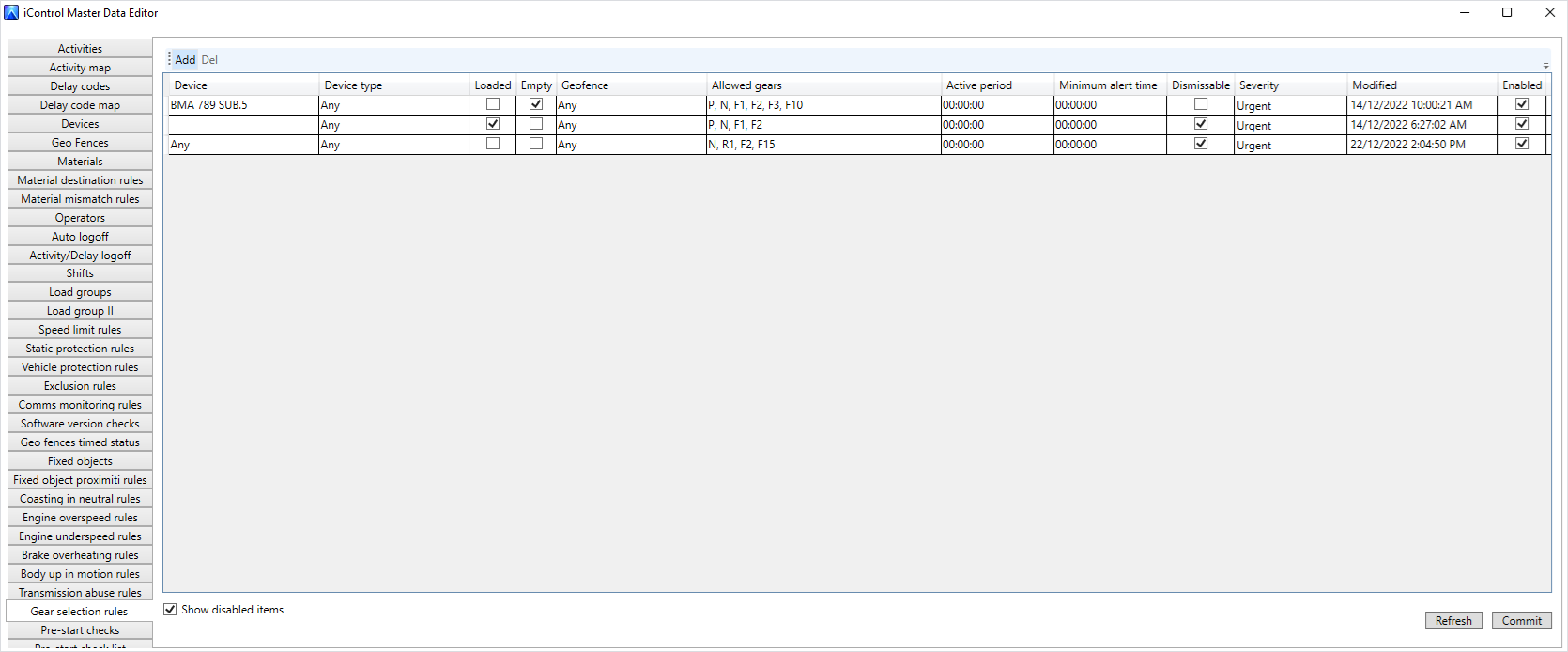

Open the Master Data Editor in iControl, then select the Gear selection rules tab.

Click Add in the top-left corner to add a new entry.

In the Device column, select a device for the Gear selection event, or select Any to apply the event to all devices.

In the Device type column, select a device type for the Gear selection event, or select Any to apply the event to all device types.

Select the Loaded check box to only apply the rule to loaded haul trucks, or select the Empty check box to only apply the rule to empty haul trucks.

In the Geofence column, select a geofence for the Gear selection event, or select Any to apply the event to all geofences.

In the Allowed gears column, select the gears an operator is allowed to use.

In the Active period column, enter how long (in seconds) the operator must have the wrong gear selected to start the event. If you enter a value of "0" the event starts as soon as the operator selects the wrong gear.

In the Minimum alert time column, enter how long (in seconds) the iVolve screen displays the alert.

Select the Dismissable check box to allow the operator to dismiss the alert; if this check box is clear, the alert cannot be dismissed and will display until the operator selects the correct gear.

In the Severity column, select Low, High, or Urgent from the drop-down menu to set the event's severity.

Select the Enabled check box to implement the rule; if this check box is clear, Perform will not monitor this event.

Click the Commit button in the bottom-right corner to save the rule, or click the Refresh button to discard it.
