Interface investigation for new deployments is the responsibility of the fleet owner and the specific OEM
For new site deployments a Smart Quarry Site Vehicle interface Investigation Process will be delivered to the fleet owner and the OEM.

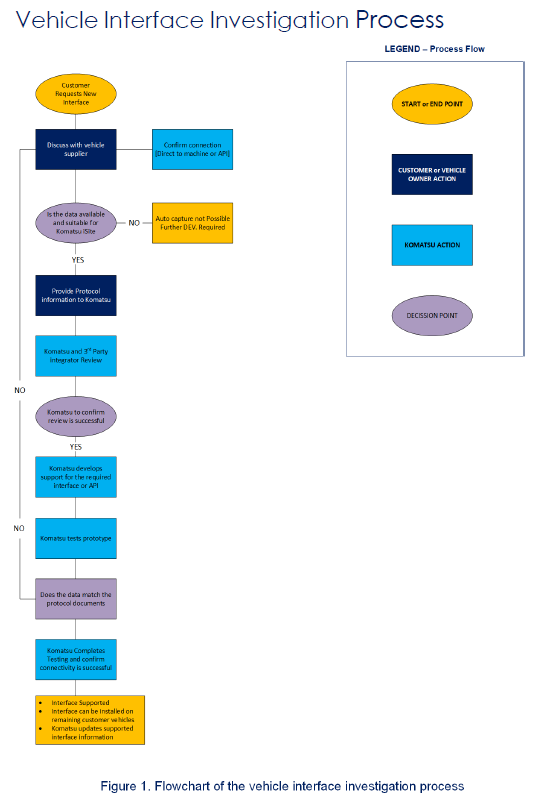

Smart Quarry Site Vehicle interface Investigation Process
Smart Quarry Site can capture information automatically on a variety of different makes and models of mobile construction and mining equipment. The Smart Quarry Site hardware and software connects to an OEM data bus on the machine (such as Komtrax and Komtrax Plus haul trucks). For machine not equipped with OEM data bus access for 3rd parties an OEM API can be the connectivity solution, where the API can be provided by the OEM.
Supported Vehicle for Smart Quarry Site
The vehicle list below has been installed with SQS hardware in the Global region’s - Australia, New Zealand, North America, Europe, Interfaces used for connection to construction and mining class machines vary, therefore data from machines will be confirmed at the time of site investigation and deployment.
Typical Interfaces:
INTERFACE REQUIREMENTS
Smart Quarry Site can read data from the following interfaces:
-
Ethernet
-
RS232
-
RS485 half or full duplex
-
CAN / J1939
-
API
Please check with your OEM on Controller health and 3rd party access available for integrators
Smart Quarry is All Makes Brand Agnostic - Fleet Management Solution
|
Machine |
Machine Type |
OEM |
Interface Type |
Interface type - Supported |
|---|---|---|---|---|
|
HM300-3 [E0] |
Articulated Truck |
Komatsu |
Komtrax |
RS232 PLM, J1939, API - Komtrax Translator Available |
|
HM300-5 [E0] |
Articulated Truck |
Komatsu |
Komtrax |
RS232 PLM, J1939, API |
|
HM400-3 [M0] |
Articulated Truck |
Komatsu |
Komtrax |
RS232 PLM, J1939, API |
|
HM400-5 [E0] |
Articulated Truck |
Komatsu |
Komtrax |
RS232 PLM, J1939, API |
|
HD405-8 |
Rigid Truck |
Komatsu |
Komtrax |
RS232 PLM, J1939, API |
|
HD465-7 [E0] |
Rigid Truck |
Komatsu |
Komtrax PLUS |
RS232 PLM, J1939 |
|
HD605-7 [E0] |
Rigid Truck |
Komatsu |
Komtrax PLUS |
RS232, J1939 PLM |
|
HD605-8 |
Rigid Truck |
Komatsu |
Komtrax PLUS |
RS232, J1939 PLM |
|
HD785-5 |
Rigid Truck |
Komatsu |
Komtrax PLUS |
RS232 [PLM1], J1939, Alternator SMU / Utilisation |
|
HD785-7E0 |
Rigid Truck |
Komatsu |
Komtrax PLUS |
RS232, J1939 PLM |
|
HD785-8 |
Rigid Truck |
Komatsu |
Komtrax PLUS |
RS232, J1939 PLM |
|
777G |
Rigid Truck |
CAT |
VIMS 3G, VIMS |
Supported SN#: TNM00441, TNM00814, TNM00813, GTRDR00309 |
|
777F |
Rigid Truck |
CAT |
VIMS 3G |
Supported SN#: JRP01125 |
|
WA500-6 |
Articulated Wheel Loader |
Komatsu |
Komtrax |
J1939, API - Komtrax Translator Available |
|
WA500-7 |
Articulated Wheel Loader |
Komatsu |
Komtrax |
J1939, API - Komtrax Translator Available |
|
WA500-8 [YL] |
Articulated Wheel Loader |
Komatsu |
Komtrax |
J1939, API |
|
WA600-6 |
Articulated Wheel Loader |
Komatsu |
Komtrax / Komtrax PLUS |
J1939, API - Komtrax Translator Available |
|
WA600-8 |
Articulated Wheel Loader |
Komatsu |
Komtrax PLUS |
J1939, API |
|
WA700-8 |
Articulated Wheel Loader |
Komatsu |
Komtrax PLUS |
J1939, API |
|
WA900-3 [E0, R] |
Articulated Wheel Loader |
Komatsu |
Komtrax PLUS |
J1939, API |
|
WA900-8 [R] |
Articulated Wheel Loader |
Komatsu |
Komtrax PLUS |
J1939, API |
|
CAT990K |
Articulated Wheel Loader |
CAT |
CDL |
CDL - Direct Connection |
|
CAT992G |
Articulated Wheel Loader |
CAT |
CDL |
CDL - Direct Connection |
|
CAT992K |
Articulated Wheel Loader |
CAT |
CDL |
CDL - Direct Connection |
|
PC490-11 [LC,SE] |
Crawler Excavator |
Komatsu |
Komtrax |
J1939, API [GW Controller] |
|
PC600-8 [LC, SE] |
Crawler Excavator |
Komatsu |
Komtrax |
J1939, API |
|
ZX690LCH-5 |
Crawler Excavator |
Hitachi |
CTFleet Link |
API |
|
PC700-11 [SE] |
Crawler Excavator |
Komatsu |
Komtrax |
J1939, API - Komtrax Translator Available |
|
PC850-8 [SE] |
Crawler Excavator |
Komatsu |
Komtrax |
J1939, API - Komtrax Translator Available |
|
R976 |
Crawler Excavator |
Liebherr |
Telematic |
API [Additional 3RD Party harness required for direct connection] |
|
PC1250-8 [R] |
Crawler Excavator |
Komatsu |
Komtrax PLUS |
J1939, API |
|
D275AX-5 [E0] |
Crawler Tractor |
Komatsu |
Komtrax |
J1939, API |
|
EX1900-6 |
Crawler Excavator |
Hitachi |
DTU |
Hitachi J1939 |
