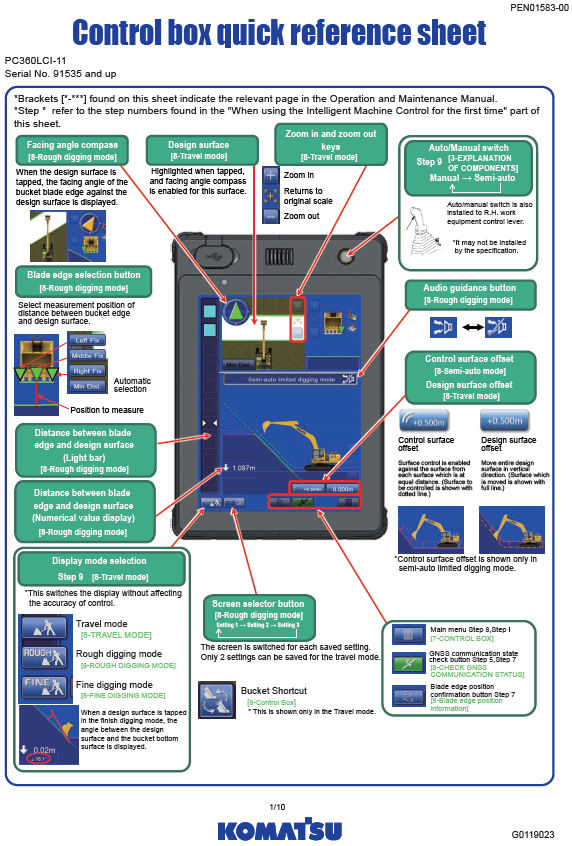

PH700 Control Box Monitor Quick Reference sheet 2.0 Excavator


















PC360LCI-11 QUICK REFERENCE SHEET 91535-UP PEN01583-00.pdf
