GNSS antennas must be removed prior to transporting any iMC Excavator to prevent damage to the components.
-

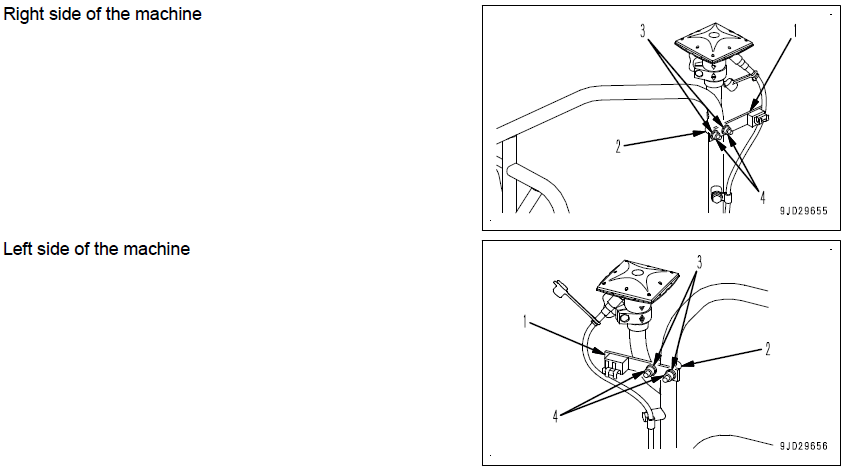

Install wiring harness fixing bracket (1) for transport to the antenna bracket with a U bolt, washer and nut (2) (3) (4).
-

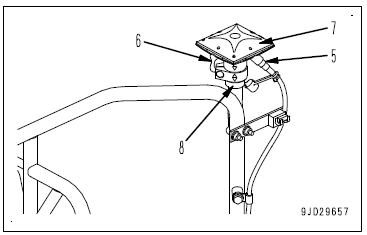

Loosen connector (5) for antenna installed to the handrail and disconnect the connector.
-
Loosen the antenna mounting knob (6) and remove the antenna (7) and bracket (8) from the handrail.
-

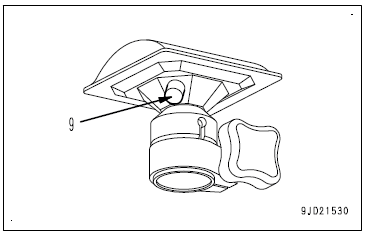

Install dustproof cap (9) to the connector to the antenna.
-
Install dustproof cap (10) for connector and fix to the transport bracket.
** Ensure no dust or water inside the either of the dustproof caps for the antenna and connector cable **
