Introduction
This article provides a detailed explanation on how to use the Smart Construction Fleet dedicated device.
It specializes in acquiring location information using high-performance GNSS and can provide real-time and historical information to a web application.
To use this function, at least one mobile device with Smart Construction Fleet application installed is required to log in.
-
The dedicated device does not have a manual button or voice function.
-

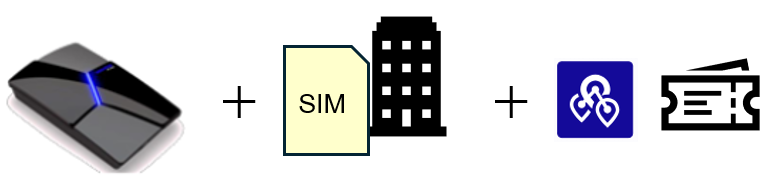

The Smart Construction Fleet Device requires not only the purchase of a license, but also the purchase of a dedicated communication service (SIM line activation).
-
After opening a SIM line, the same line cannot be reactivated once the license is cancelled.
Purchase of device SIM line activation Allocation of license IDs for the
number of devices used
Procedures and Explanation
-

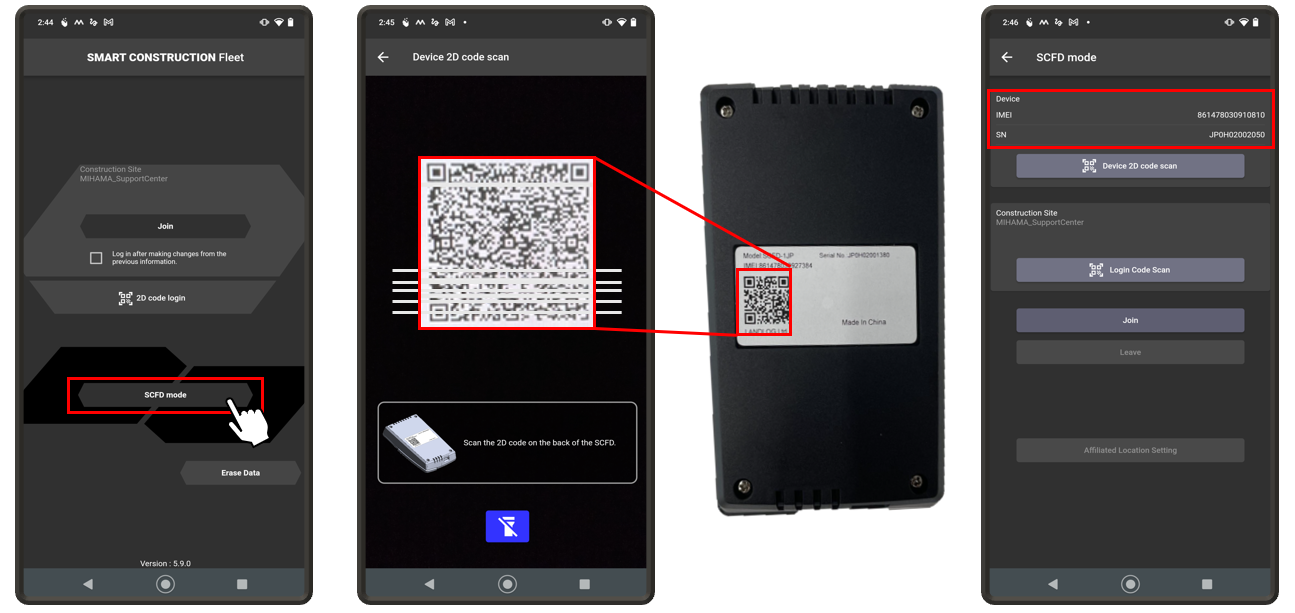

Read the QR code of the device via a mobile with the application installed.
-
Start the mobile application and tap the dedicated device mode to activate it.
-
Read the 2D code on the device or on the box.
-
After reading the code, confirm that the IMEI and SN number of the device are displayed on the mobile screen.
-
Log in to the project site via the 2D code and set your role
-

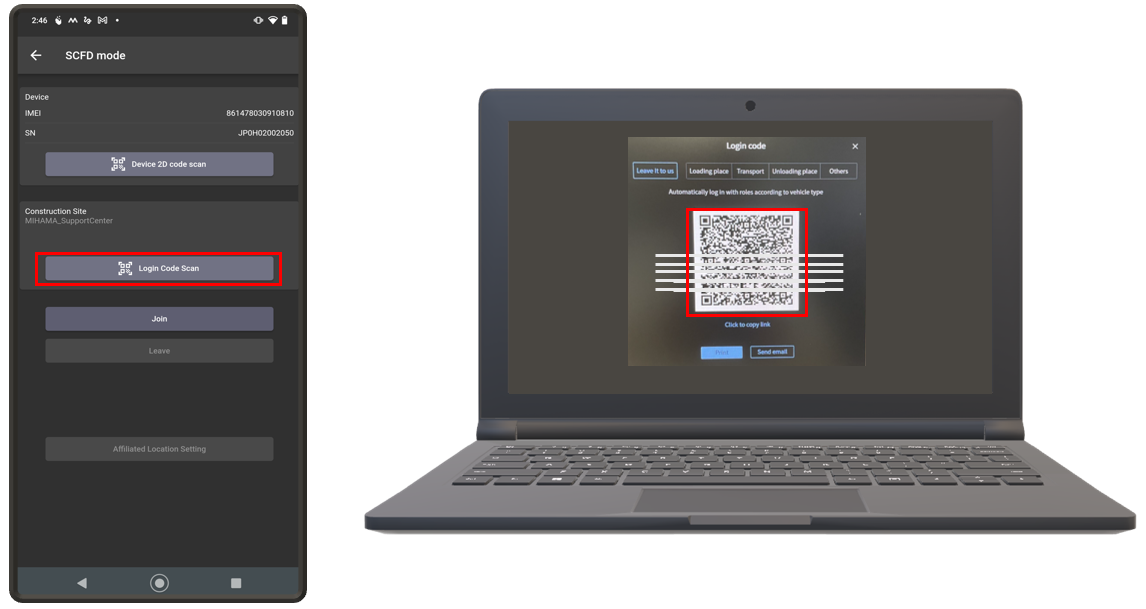

With the information on the dedicated device loaded, tap the "Login code scan" for logging in to the construction site or specific vehicle information to read the 2D code.
The 2D code can be displayed in one of the three patterns described in the supplementary information at the bottom of this article.
(The login code can also be printed out, so please make use of it according to your needs.)
-

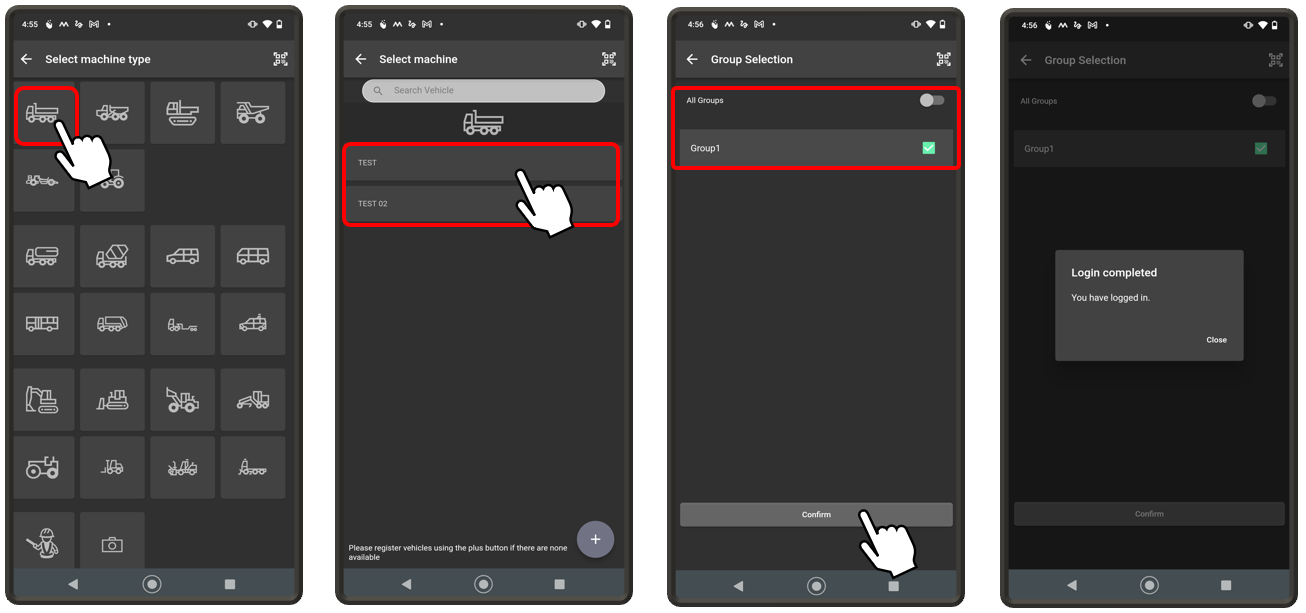

Tap the icon of the vehicle type that will be used.
-
Tap the vehicle to be logged in. (You can also search for a vehicle.)
-
Select the group you belong to and tap “Confirm” to move to the running mode screen.
(If no group has been created, the screen will not move to the group selection screen.)
Supplementation
Once you log in to the job site, the login information is saved in the application, so you can immediately go to the running screen by tapping the login button the second time or later.
*If you change the vehicle, you will need to read the 2D code again.

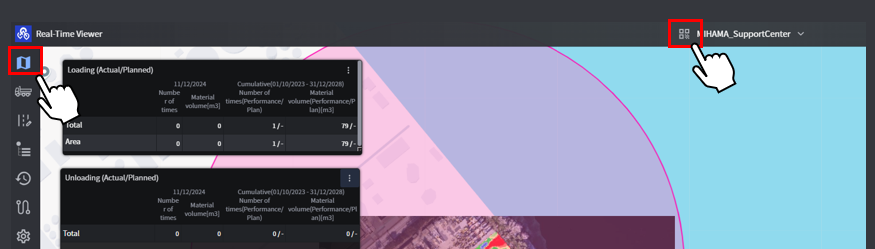

When logging in from the real-time viewer of project information

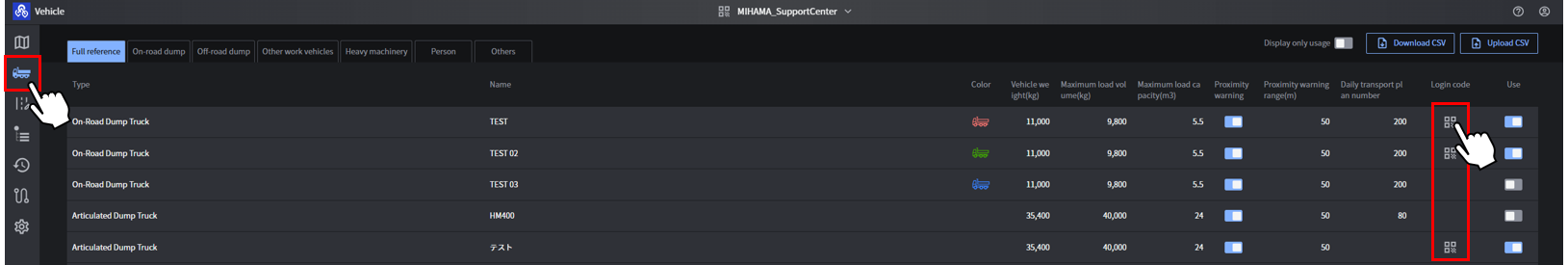

When logging in from the vehicle settings screen

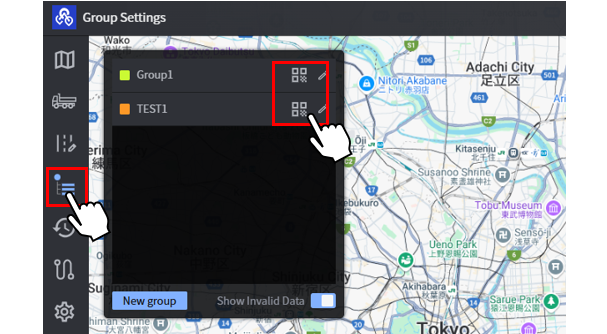

When logging in from a group settings screen
