Introduction
This article provides a detailed explanation on how to pre-register each dump truck to obtain information via mobile terminal.
By registering the detailed information of each dump truck on the web before logging in to the mobile terminal, the hauling results can be aggregated and managed on the web.
Procedures and Explanation
-

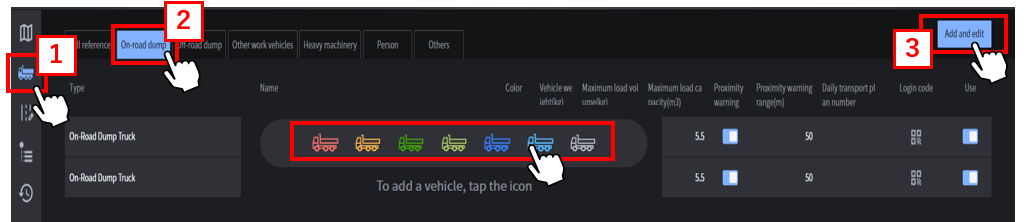

Select 【“1” Vehicle Settings】 and choose 【 “2” On-road dump.】
-
Click on 【“3” Add and edit】 and select the icon for any dump truck vehicle.
Only for on-road dump trucks, you can choose the icon color.
When registering, enter the maximum loading capacity of each dump truck according to the vehicle inspection certificate, which will be converted to the amount of loading and unloading per dump truck.
-

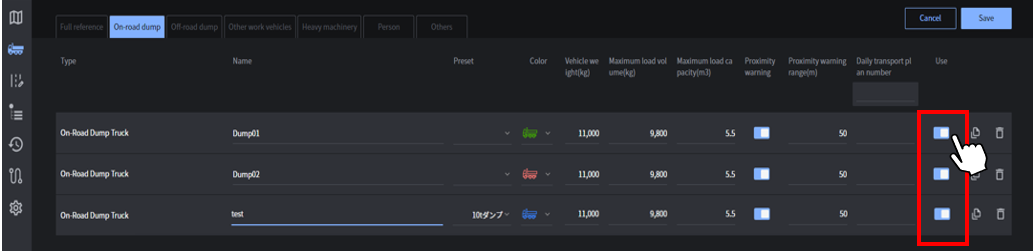

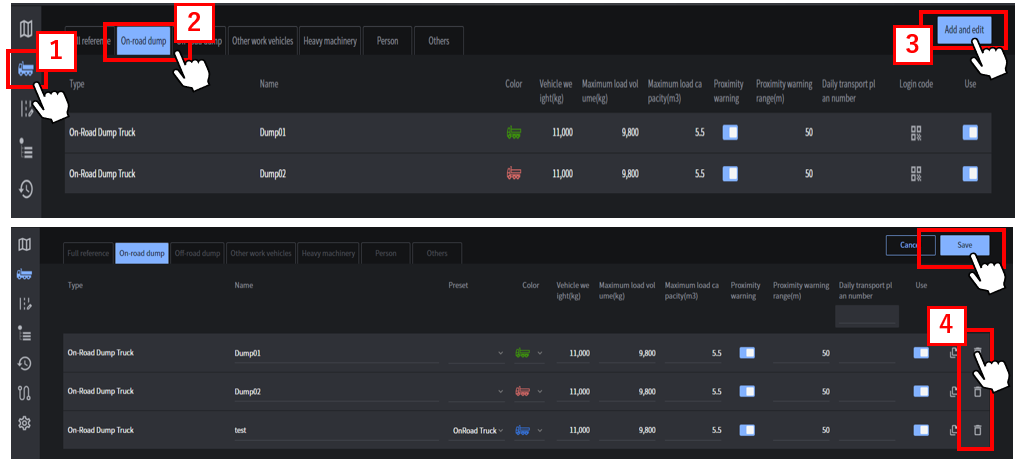

Dumps used on a daily basis can be controlled by selecting ON or OFF, which displays the list when logging in on the mobile device side according to the web settings.Editing and Deleting MethodsHow to edit1. Select 【“1” Vehicle Settings】 and choose 【 “2” On-road dump.】
-
Click on 【“3” Add and edit】 to edit each dump.
How to delete
-
Click 【“4” trash icon】 for the target dump truck then ”Save" it.
Supplementation

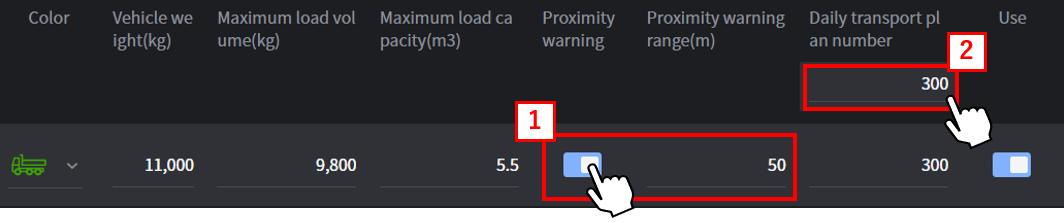

Detailed settings (dump)
【"1" Proximity warning】
A warning will be displayed if a dump truck enters within the set warning range.
【"2" Daily transport plan number】Set the number of planned daily hauls (optional) to compare the operating status with the number of planned hauls in the real-time viewer.
Batch registration by CSV
-

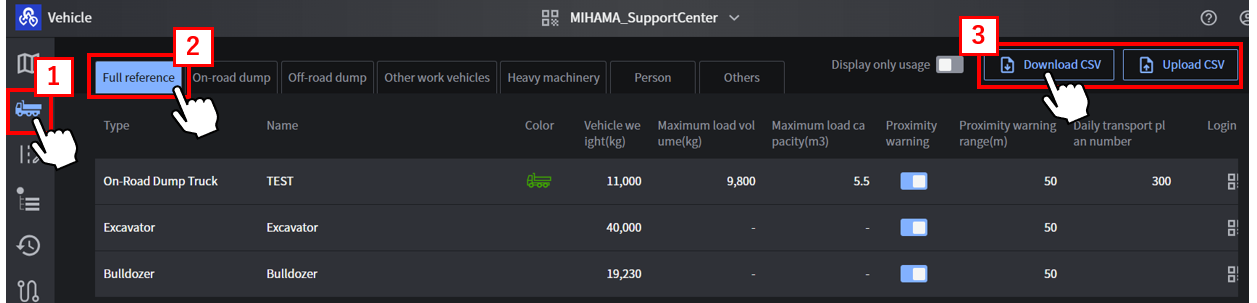

Select 【"1" Vehicle Settings,】 then choose 【"2" Full reference.】
-
Click 【“3” Download CSV.】
Open the downloaded file, add more lines to the dump file to be used if necessary, and then upload the file.

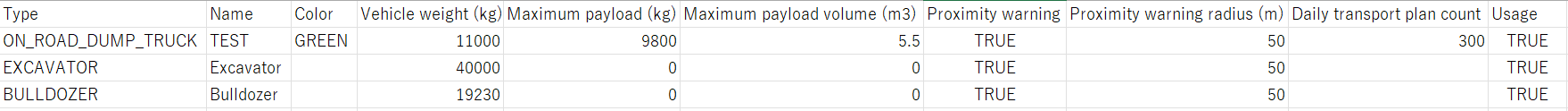

Example of CSV format

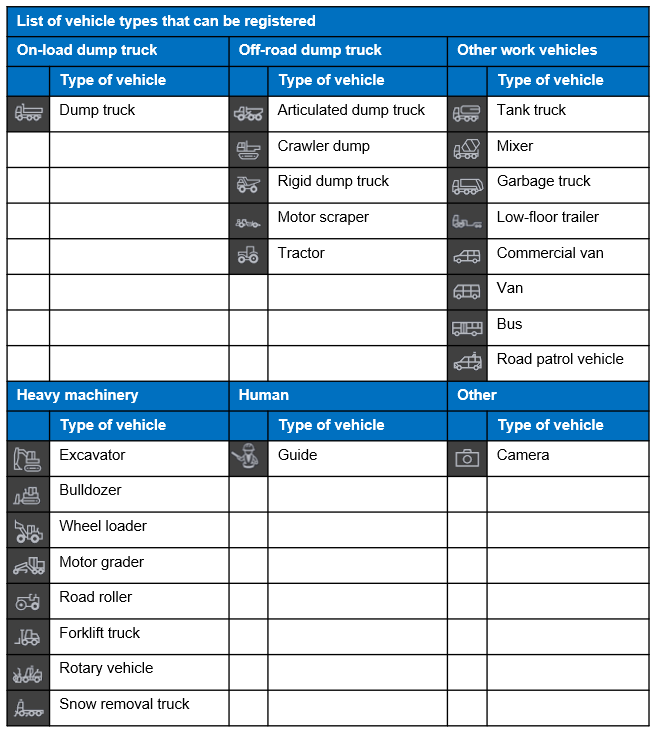

Vehicle types available for registration as of July 2024
