Introduction
This article provides a detailed explanation on how to display routes in a real-time viewer or mobile application.
This function allows site managers and drivers to check in real time whether they are operating the correct route on a daily basis.
*There is no navigation function.
Procedures and Explanation
Creating a route
There are three ways to create a route.

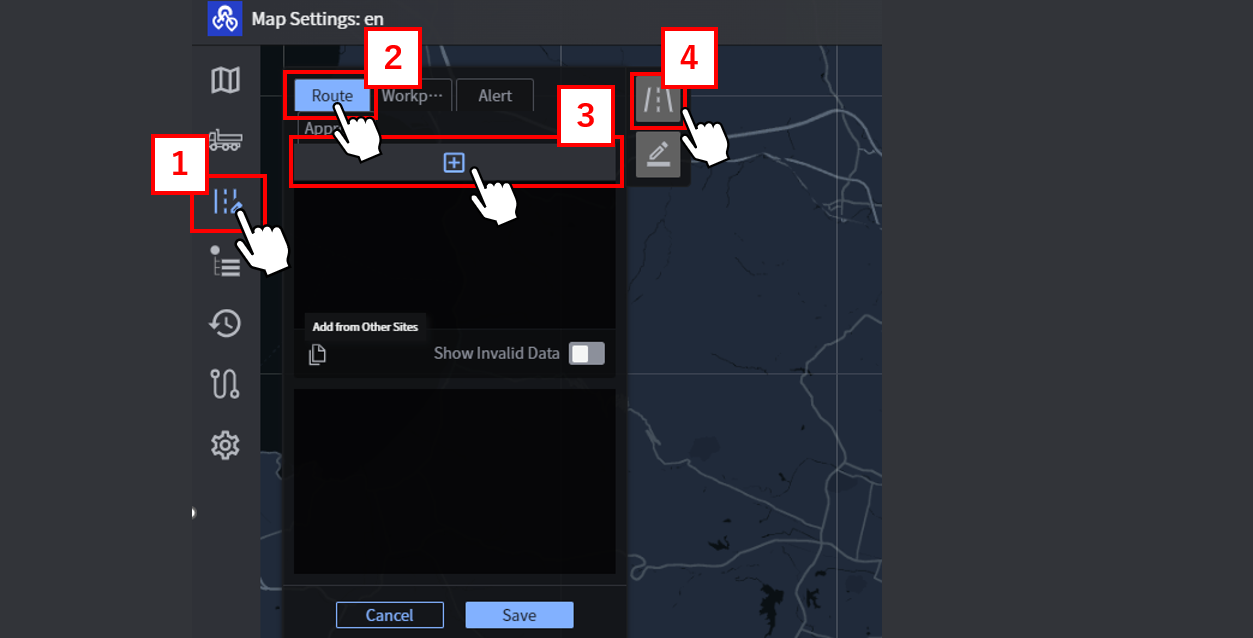

To create a route along a road
-
【"1" Display the map setting screen,】 and click 【“2” “Route.】
-
Click on 【“3” + mark 】 to add a new route.
-
Select the 【“4” road icon】 to turn on “Route along the road”.
-

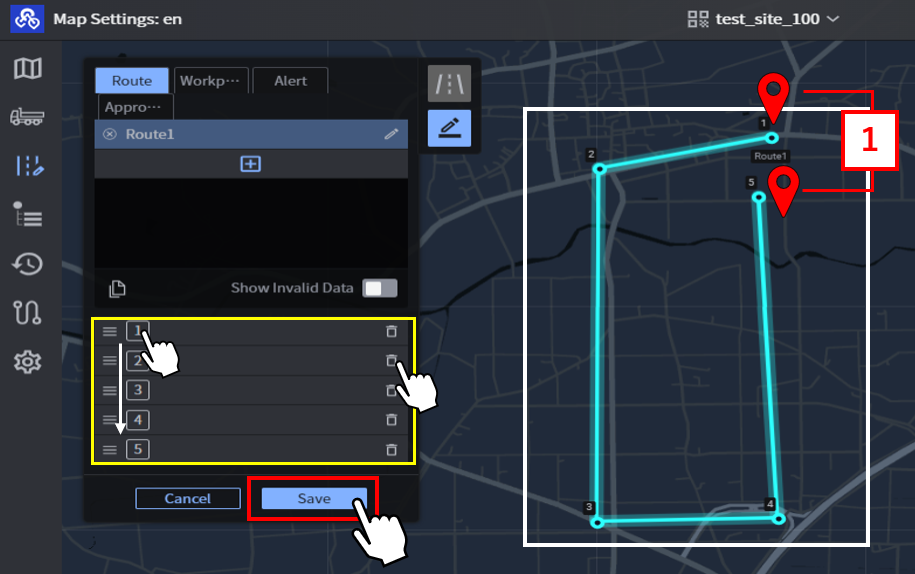

【"1" Click on the start and end points of the route】 on the road map.
Each time you click on a road point on the map, the route between the pins will be automatically searched and generated.
If necessary, click at intersections, etc.
-
When you have completed the route, click “Save”.
*You can change the order of the pins you clicked on when creating a route, and delete pin numbers.
How to change the order of pins
If you hold down the mouse button on (1) and release it on (3), the pin (1) will become the third pin.
How to delete a pin
Click on the trash can next to a pin to delete it.

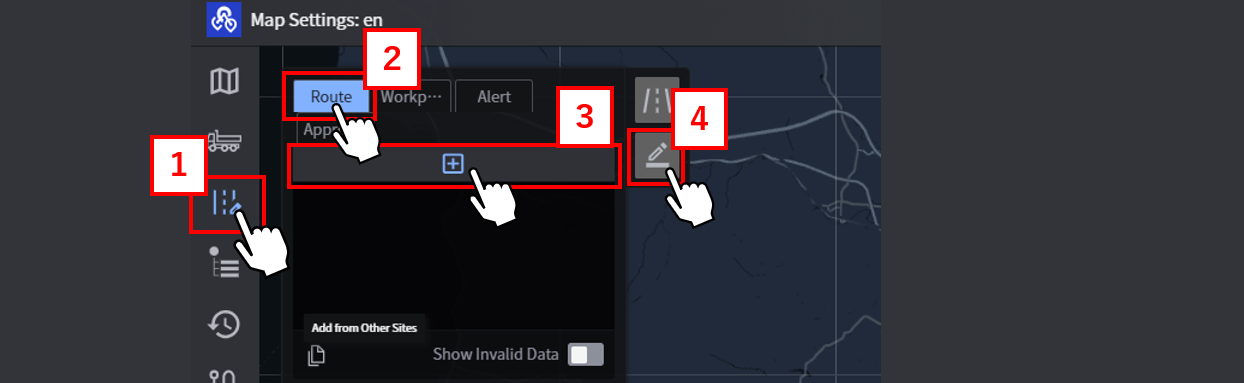

To create a hand-drawn route
(in places where there are no roads on the map, riverbeds, built-up areas, or planned construction sites)
-
【"1" Display the map setting screen,】 and click 【“2” “Route.】
-
Click on 【“3” + mark 】 to add a new route.
-
Select the 【"4" Pencil icon】 to set “Hand-drawn route.”
-

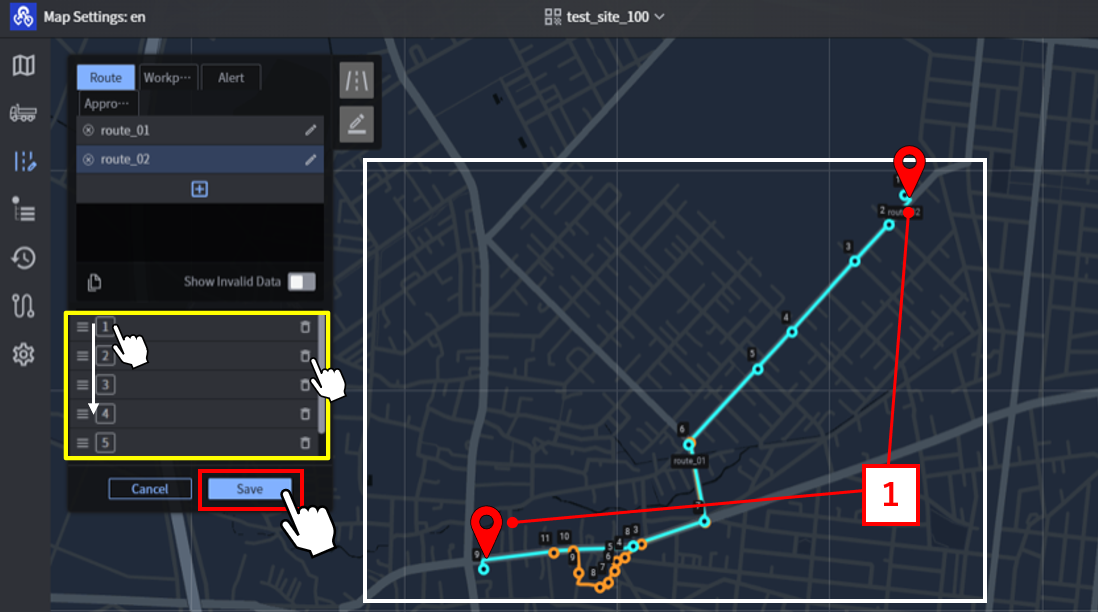

【"1" Click on the route in order of change from the starting point.】
Each time you click on a road point on the map, the route between the pins will be connected consecutively and a route will be generated.
Click at intersections, etc.
-
When you have completed the route, click “Save”.
*You can change the order of the pins you clicked on when creating a route, and delete pin numbers.
How to change the order of pins
If you hold down the mouse button on (1) and release it on (3), the pin (1) will become the third pin.
How to delete a pin
Click on the trash can next to a pin to delete it.

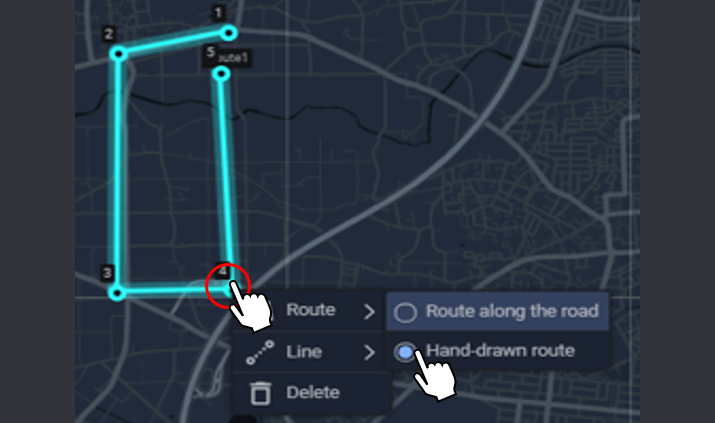

How to switch route creation
-
Click on a pin to change the input way between “Route along the road” and “Hand-drawn route”.

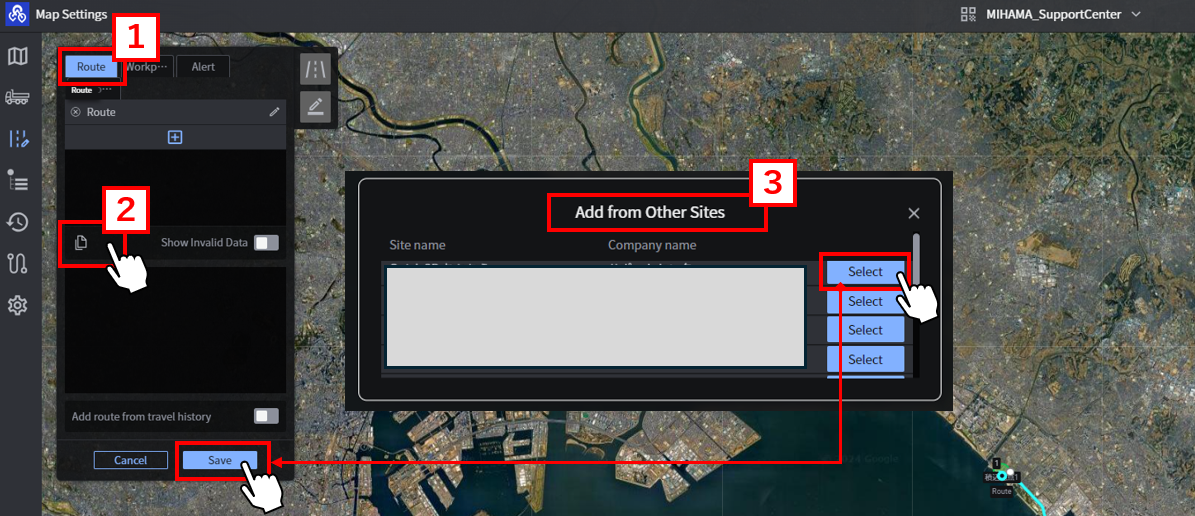

To copy a route from another job site
If you have already used Smart Construction Fleet and have a job site with a route set up, you can copy it.
-
Display the map settings screen and click on 【“1“ Route.】
-
Click on 【“2” copy mark】 to display 【"3" Add from Other Sites.】
-
Select the job site you want to copy from, and click “Save” after confirming the route.
*The sites where your account is registered as “Site Supervisor” will be listed.
*The route will not overwrite the originally created route.
Supplementation

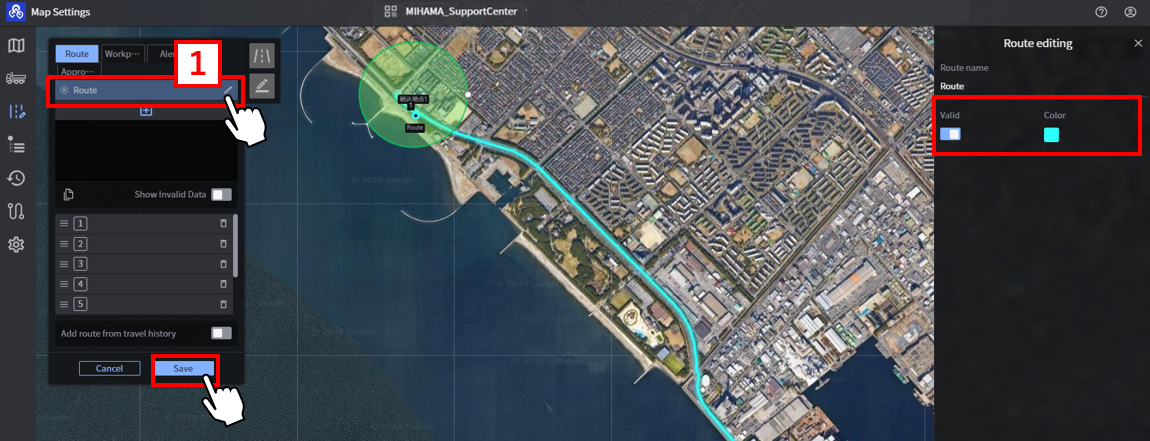

Editing the name and changing the color of a route
-
【"1" Select the route you want to edit, click the pencil icon】 and click “Save” after editing.
You can change the route name, enable/disable the route, and change the color.
If you disable a route, it will be hidden from the administration screen and mobile app.
