1.0.11.3 contains new features that also requires controller firmware update. Please run Pilot Updater app prior to installing 1.0.11.3.
New Features
Support for Tiltrotators
This software release allows for certain tiltrotator models to be supported in 3DMG for guidance functions.
The following tiltrotator brands are supported:
-
Steelwrist
The following brands will be added in near future:
-
Engcon
-
Rototilt
Controller firmware must be updated to v2.3.4 to support Tiltrotator function
Additional hardware is required to connect to the tiltrotator’s interface. Contact Komatsu Smart Construction for more information.
View Options for Tilt Bucket and Tiltrotator Bucket
There is now a toggleable option for the view mode of certain views when a tilting bucket or a tiltrotator bucket is selected. This feature is designed to support flexibility for operators.
Section View

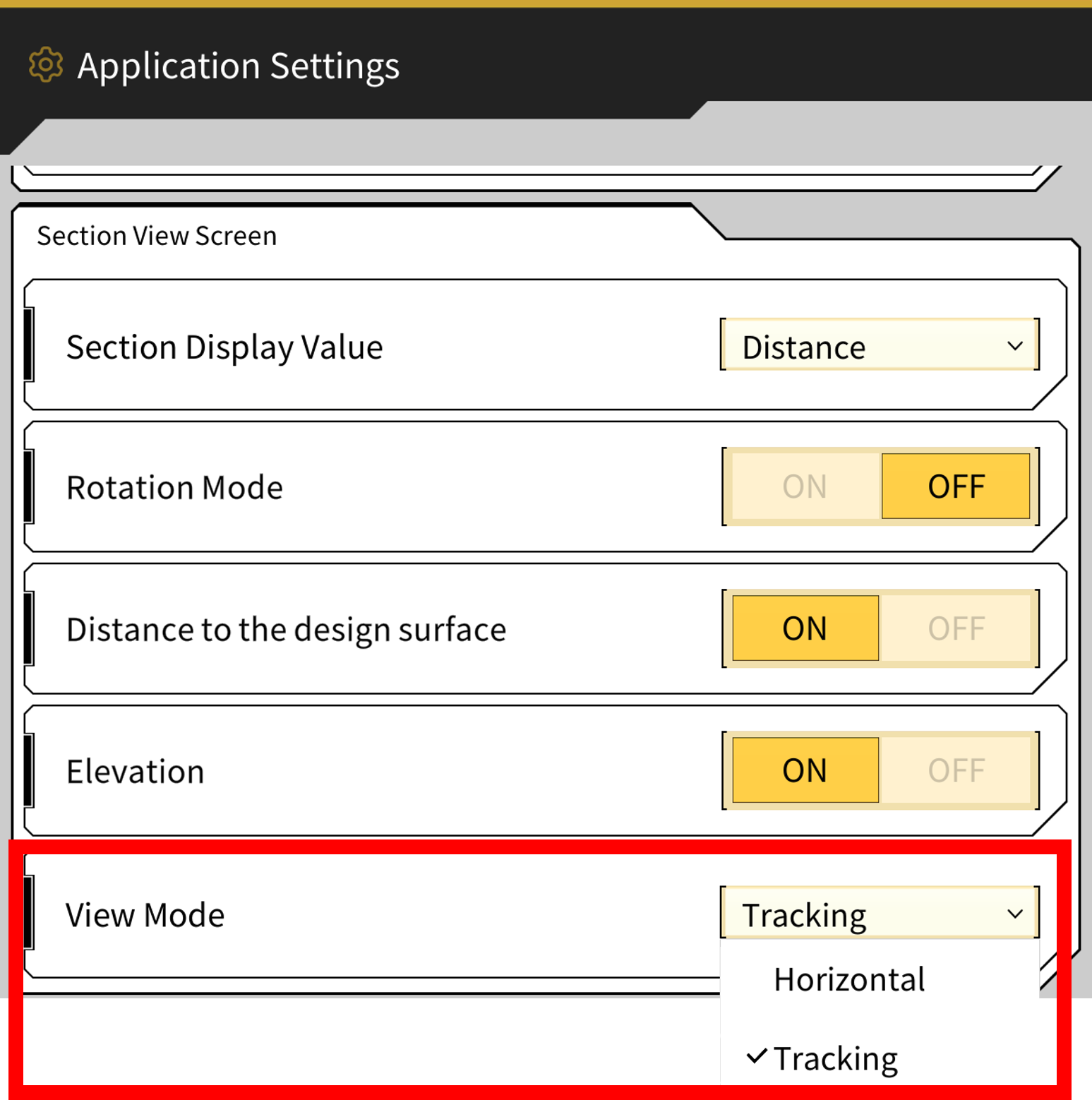

The setting can be changed in the Applications Settings menu under “Section View Screen”

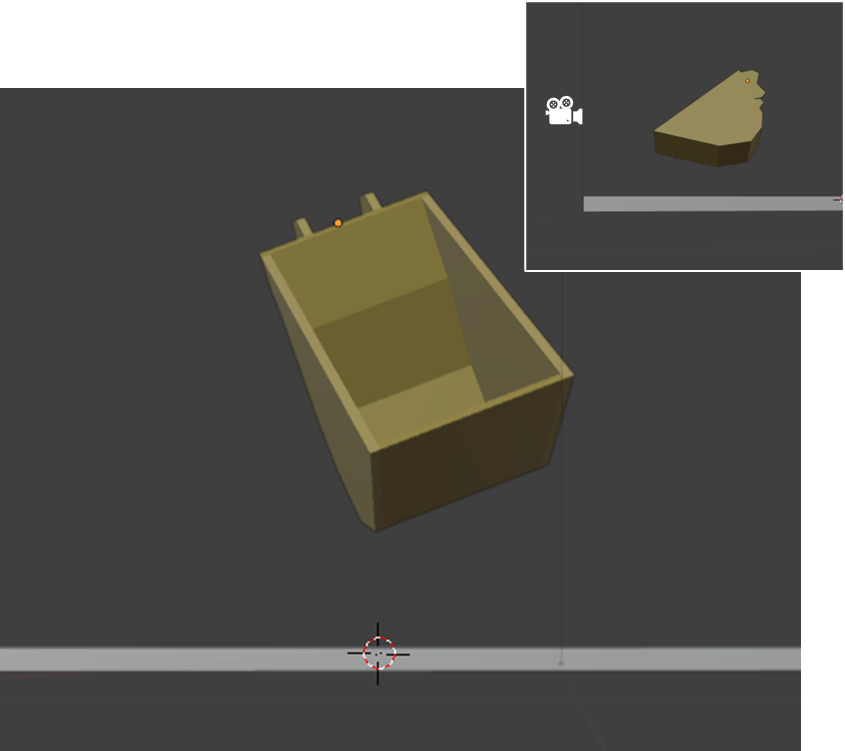

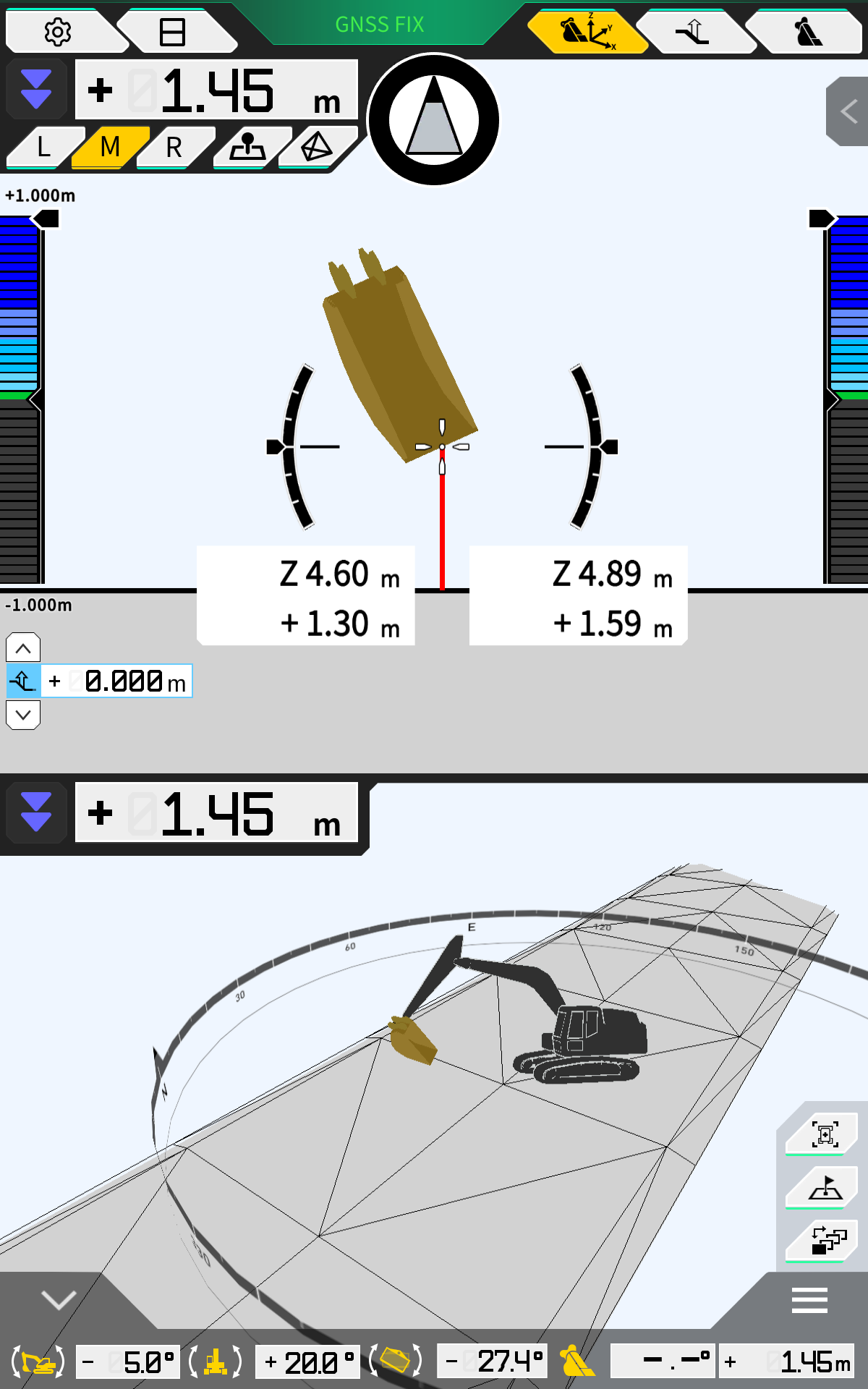

Horizontal (Default)

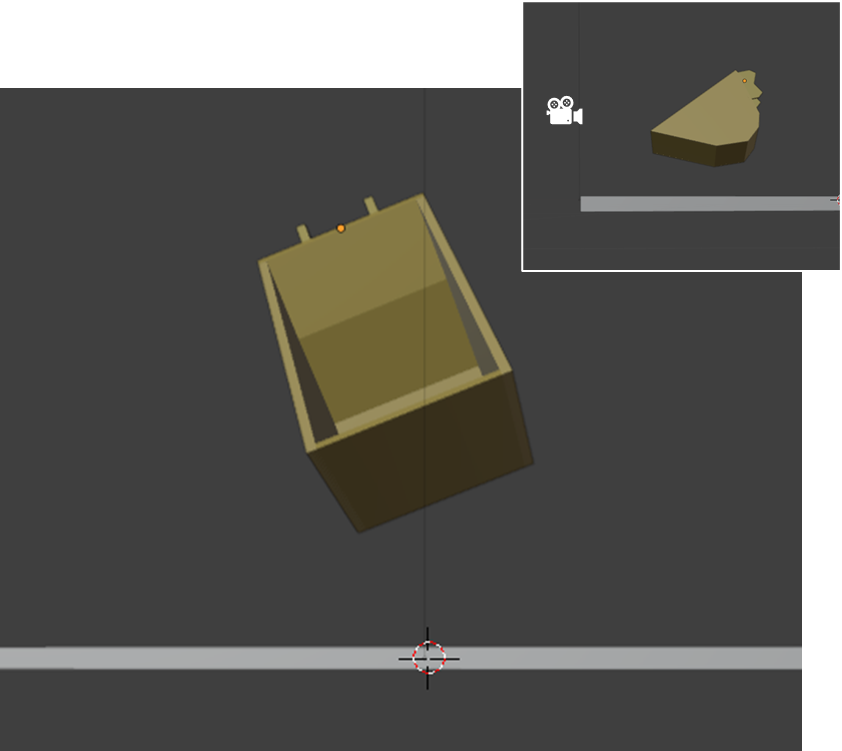

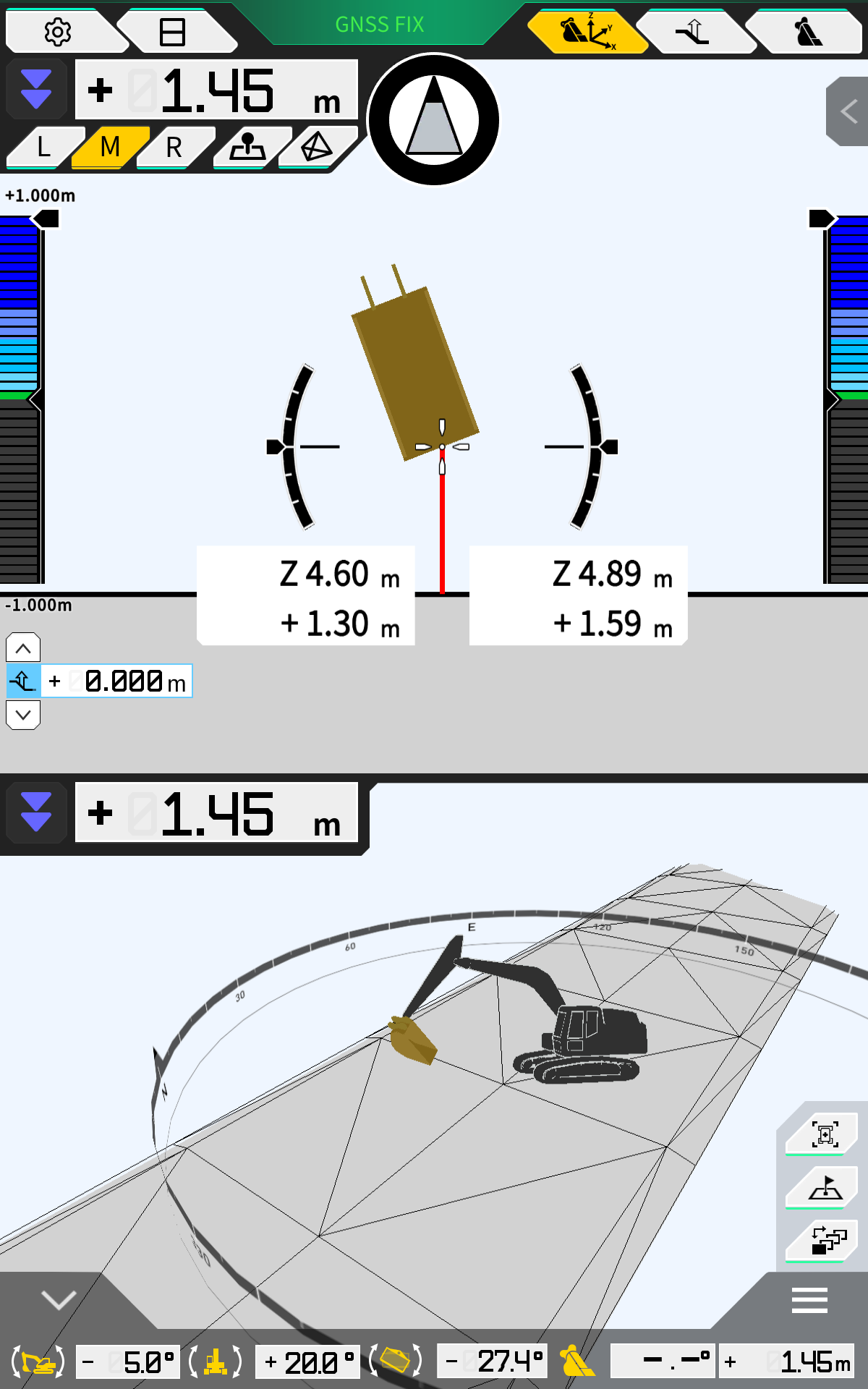

Tracking

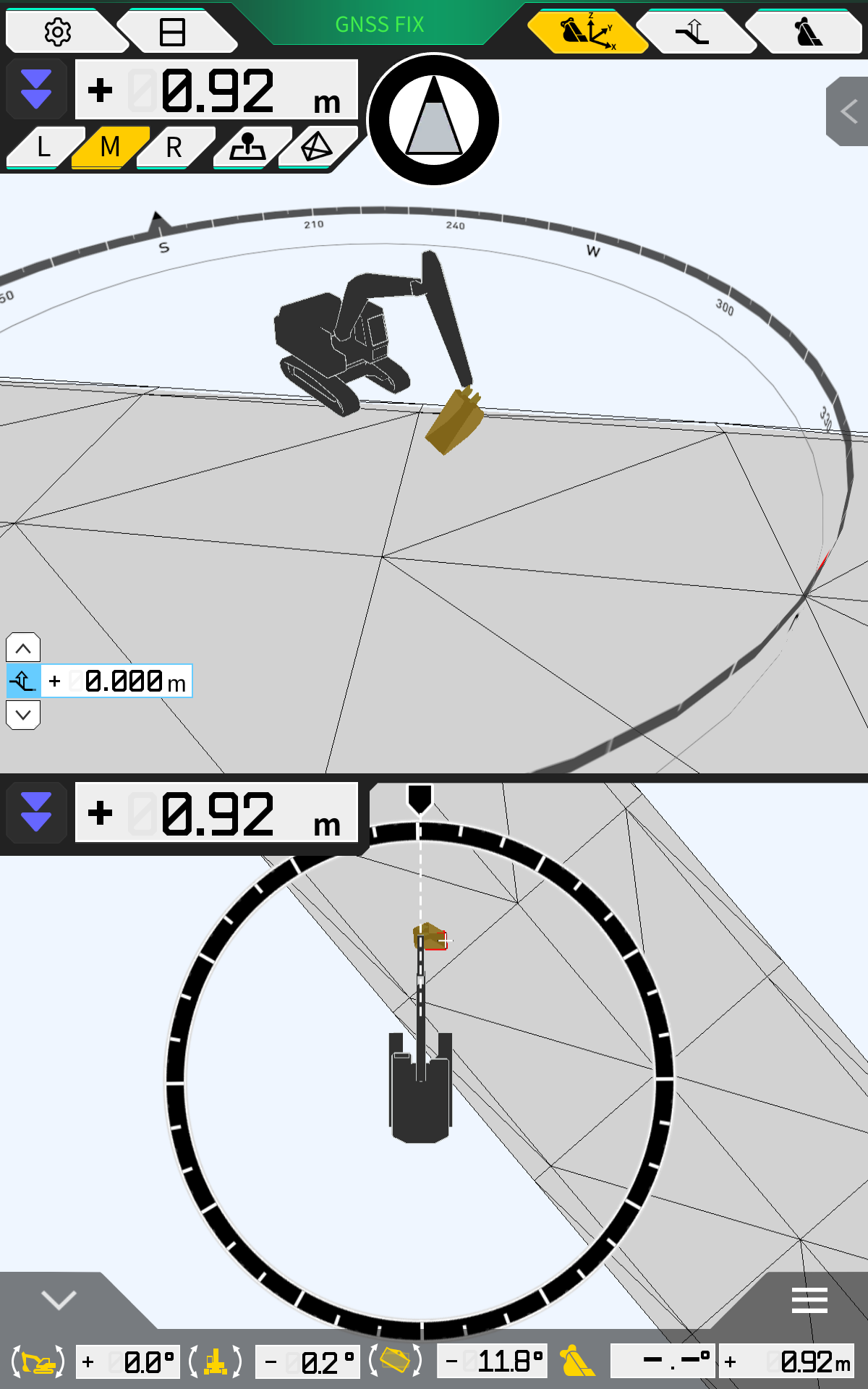

Profile View

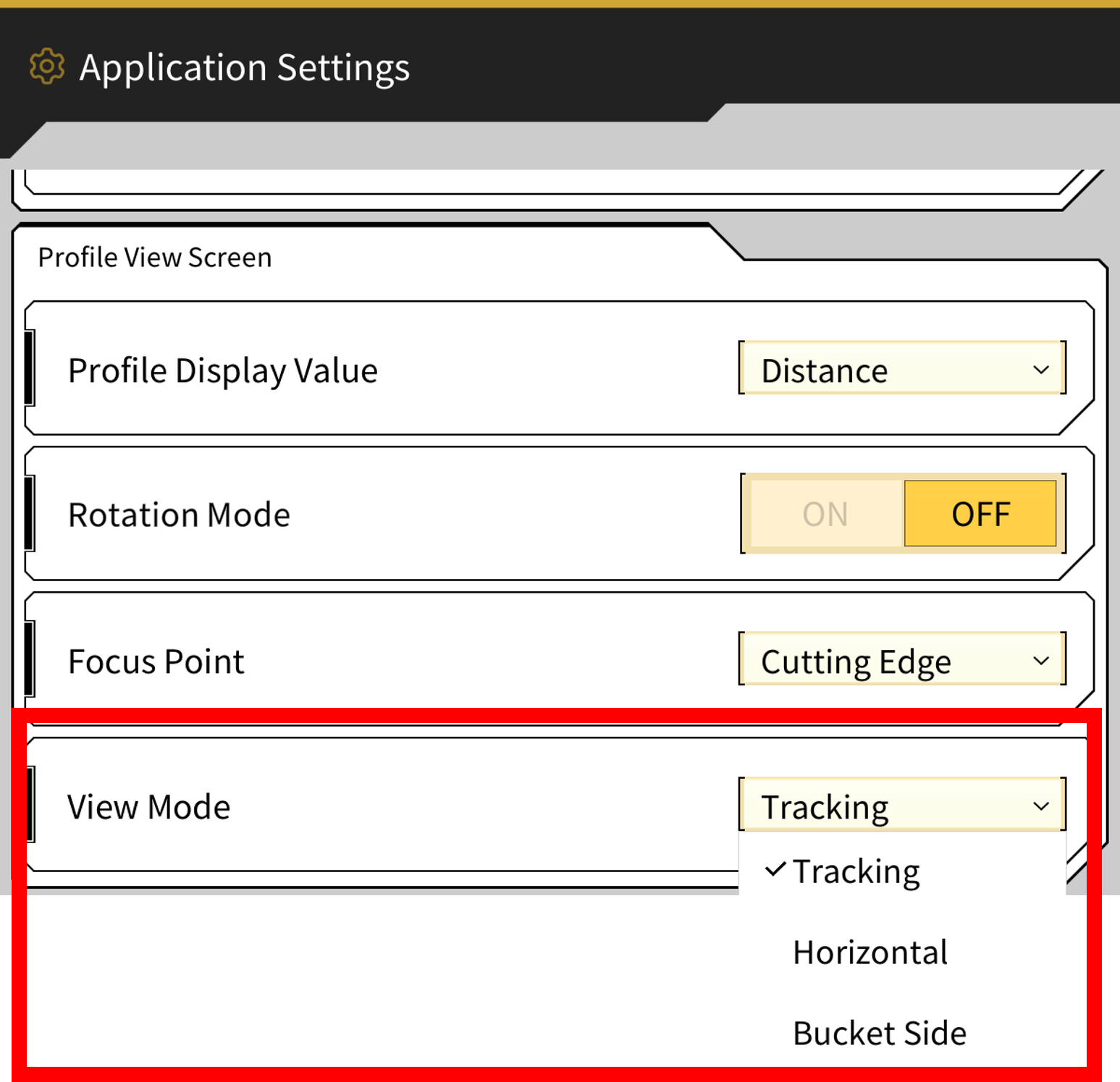

The setting can be changed in the Applications Settings menu under “Profile View Screen”

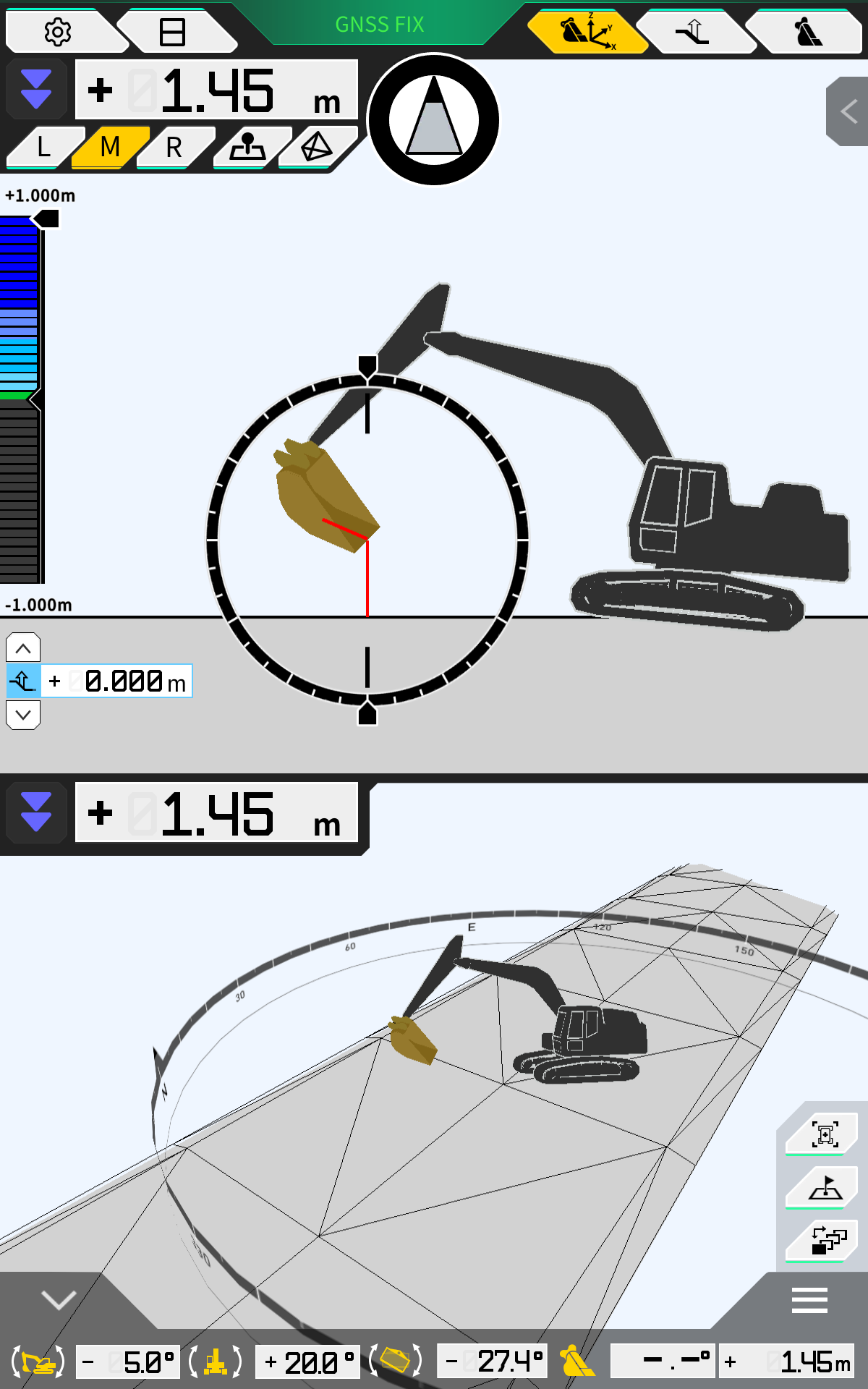

Tracking (Default)

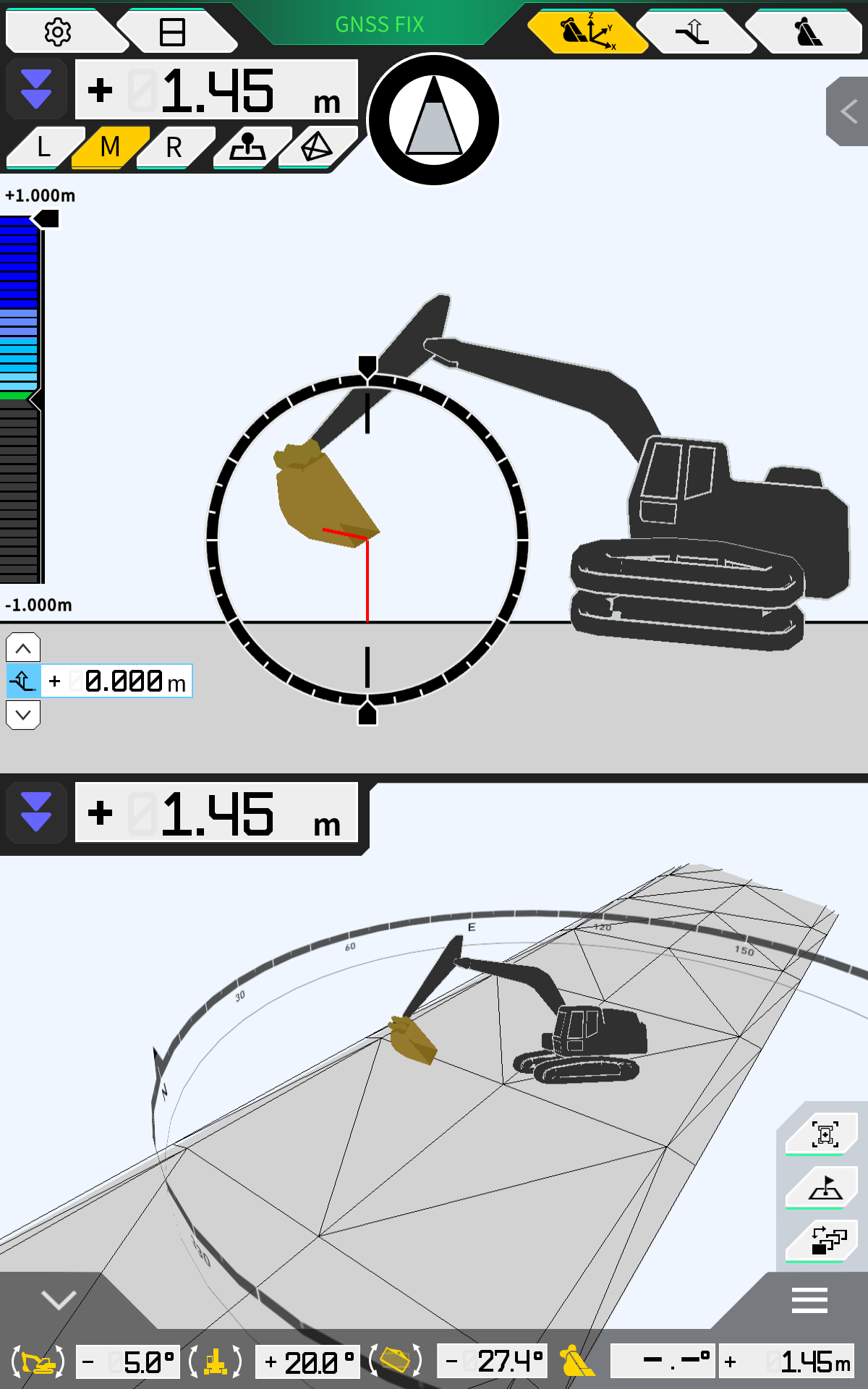

Horizontal

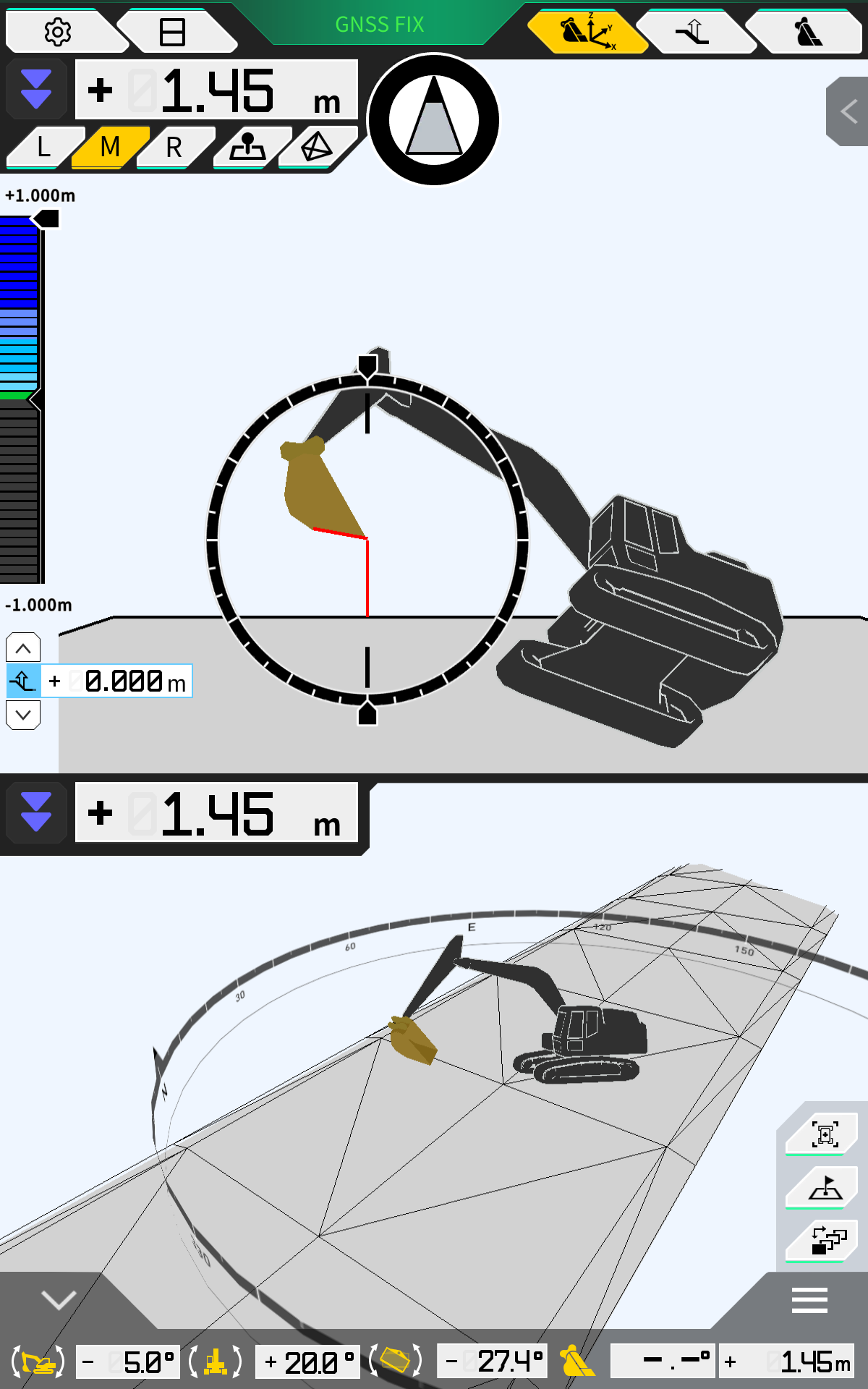

Bucket Side
Payload Meter

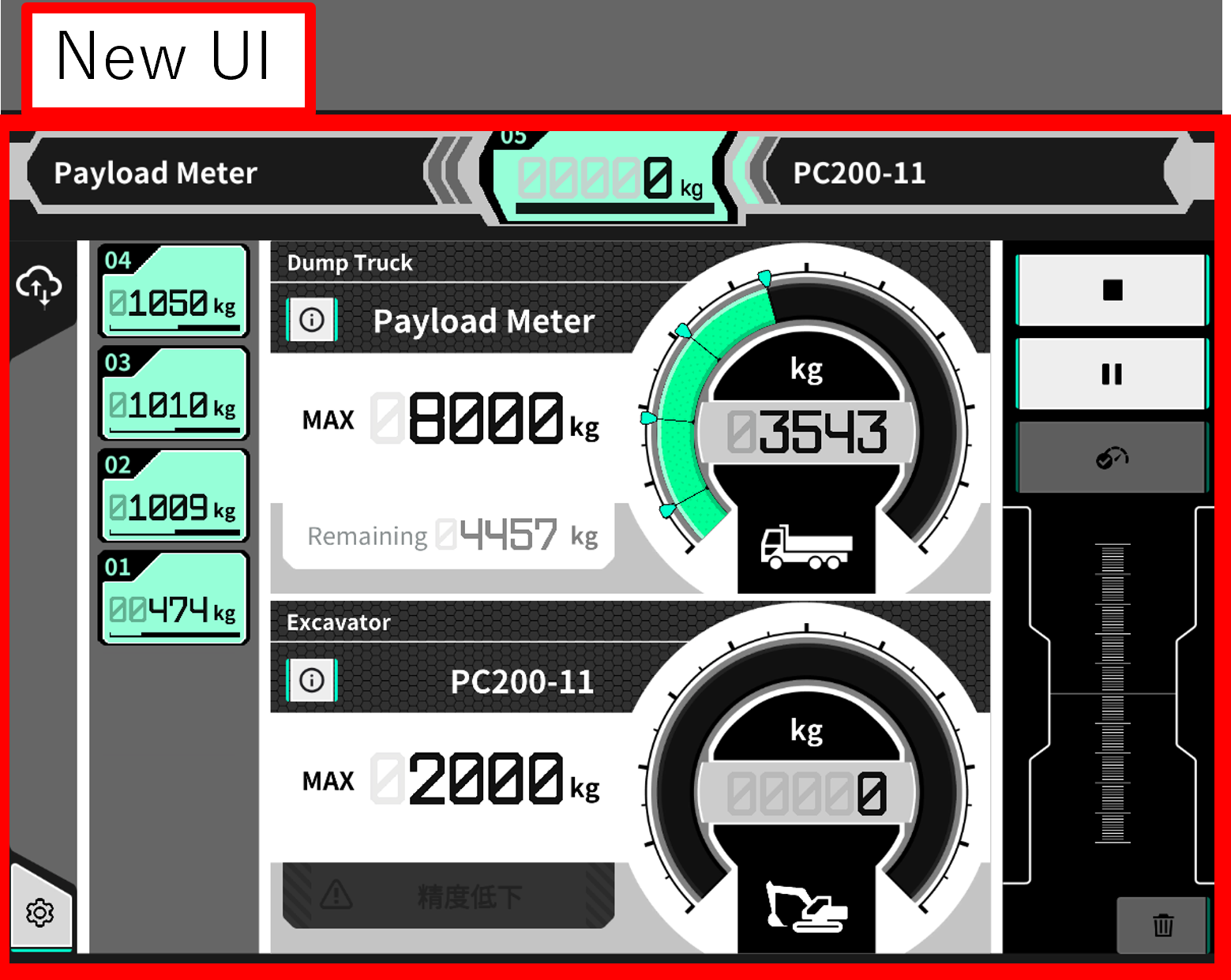

Main UI Redesign
The main Payload user interface has been updated and reconfigured to make space for new features.

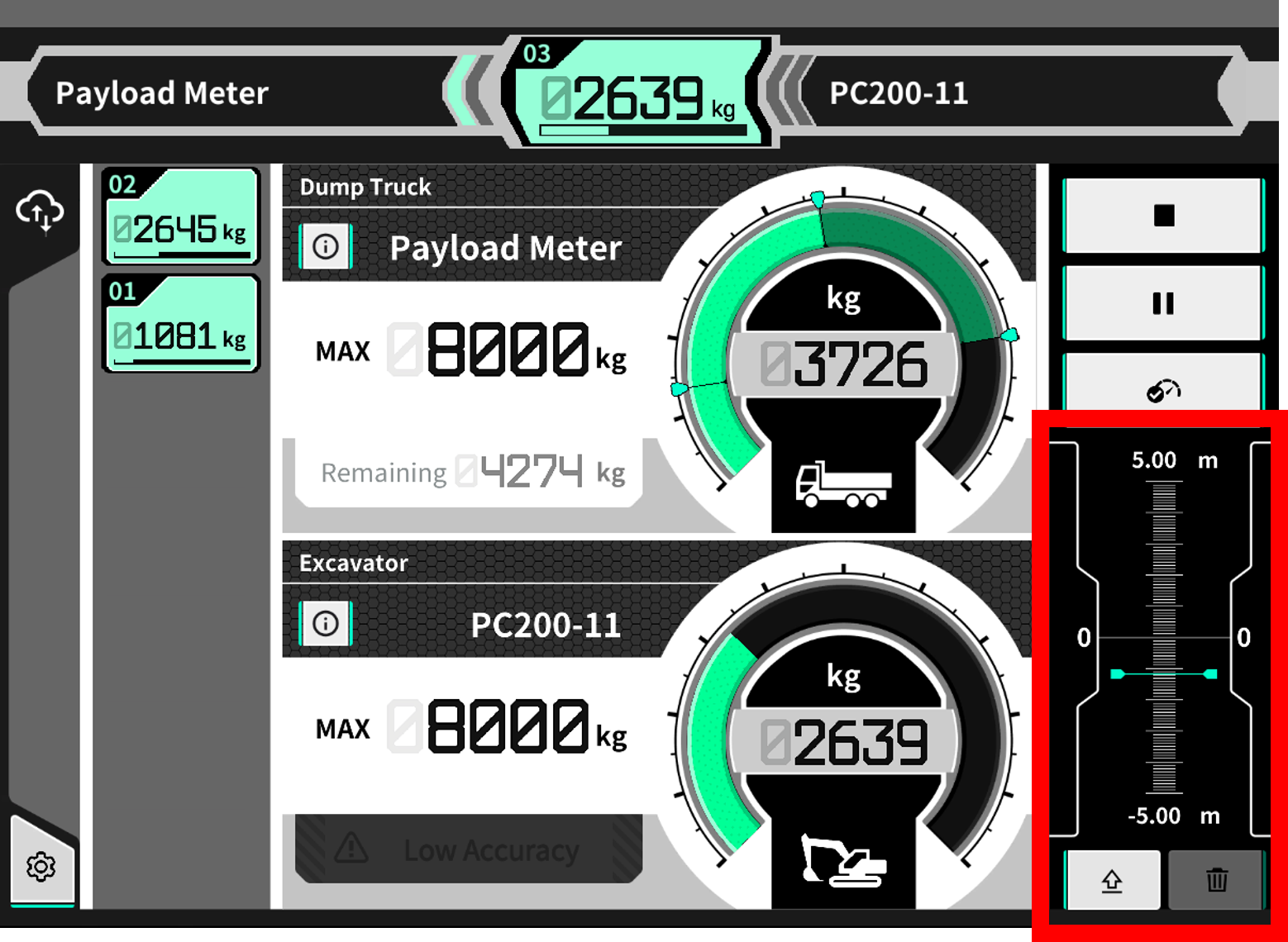

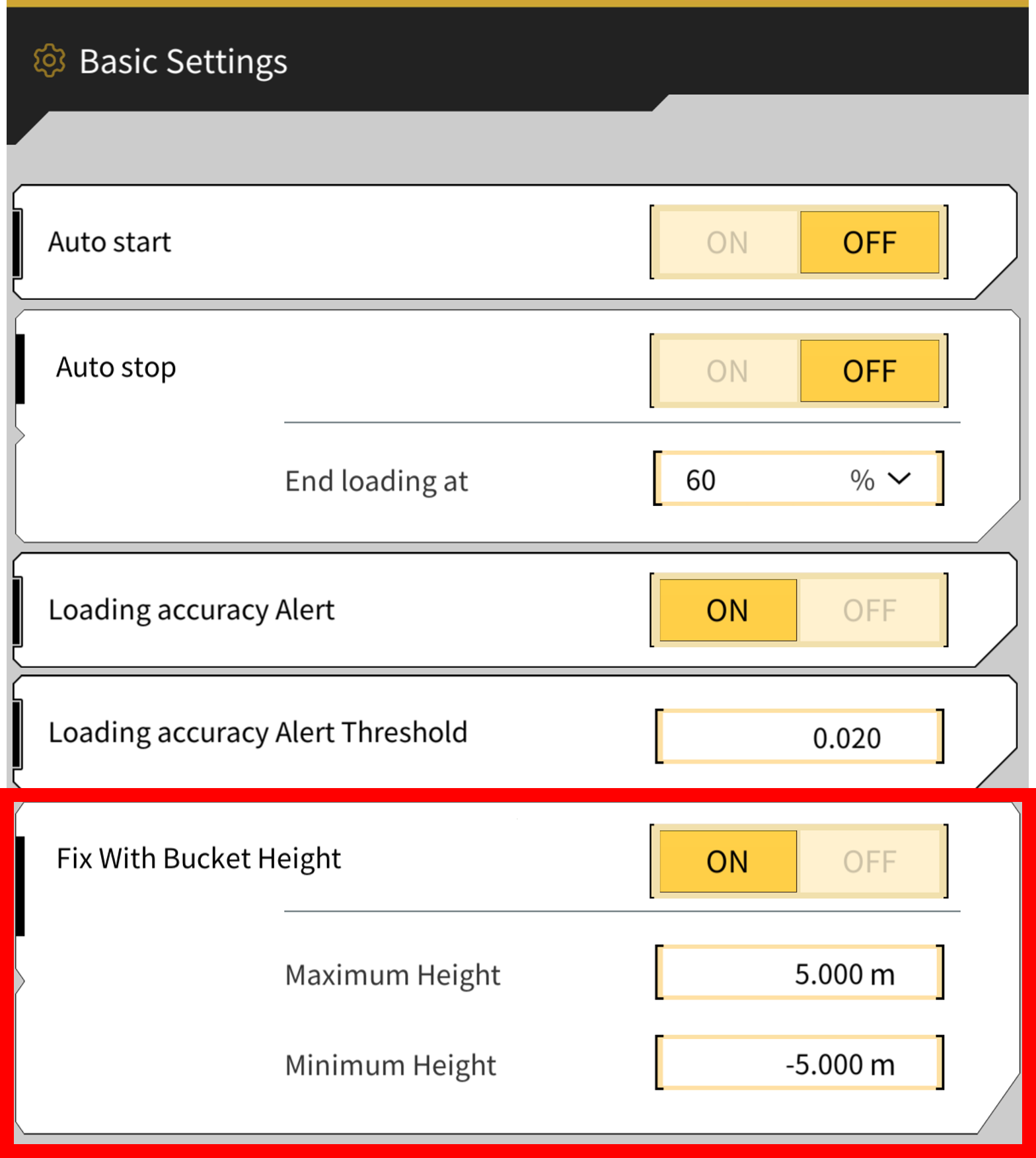

Set Height for Load Trigger
There is now an option to set a pre-defined lift distance above a user-defined zero point in order to trigger the final payload result.
Other updates and Bug Fixes
-
Added toggle between angle/cut fill to 3D view screen
-
Modified the threshold for creating design surfaces from linework so that the user can change it
-
Added support for additional languages
-
Fixed a bug where “ratio” and “%” values for slope of simple design surface changed between creating and editing
