SC Fleet Lite V5 for Payload Reporting

Set up Project (Customer Portal & SC Fleet Lite)

  1. Create a site in Customer Portal

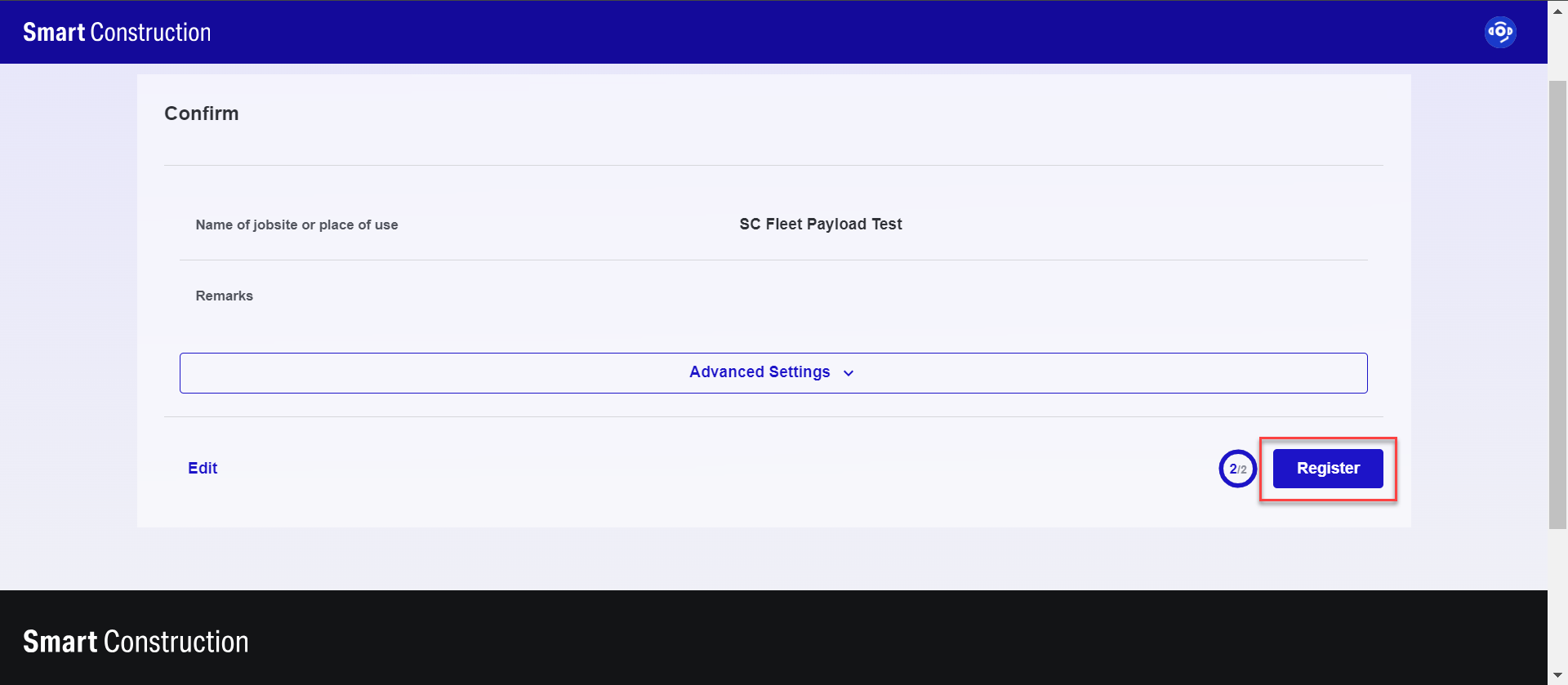

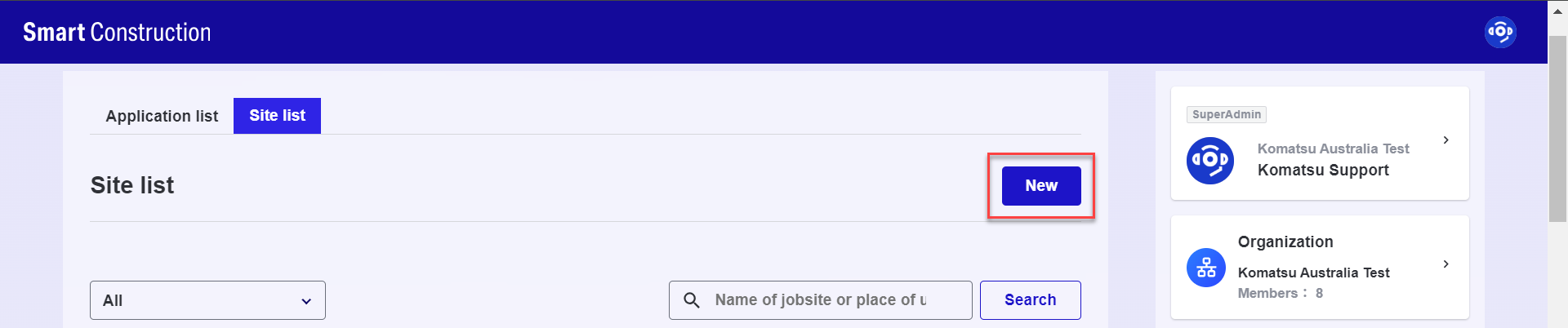

  1. Enter required site information to register it


Create a site with Customer Portal before setting a project on SC Fleet Lite. To acquire Payload results from SC Pilot, the same site needs to be imported into SC Fleet Lite as SC Pilot.

  1. Activate Project in SC Fleet Lite

    1. Log on SC Fleet Lite

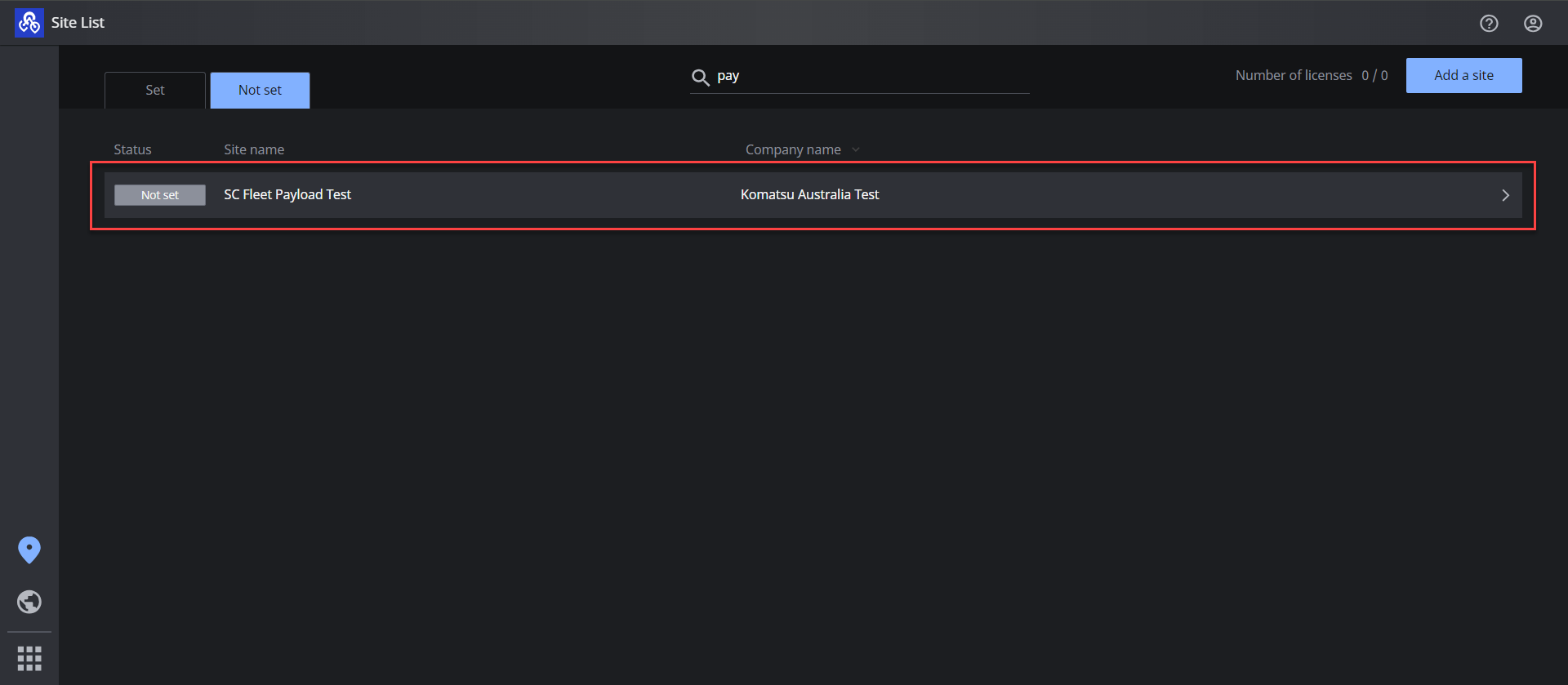

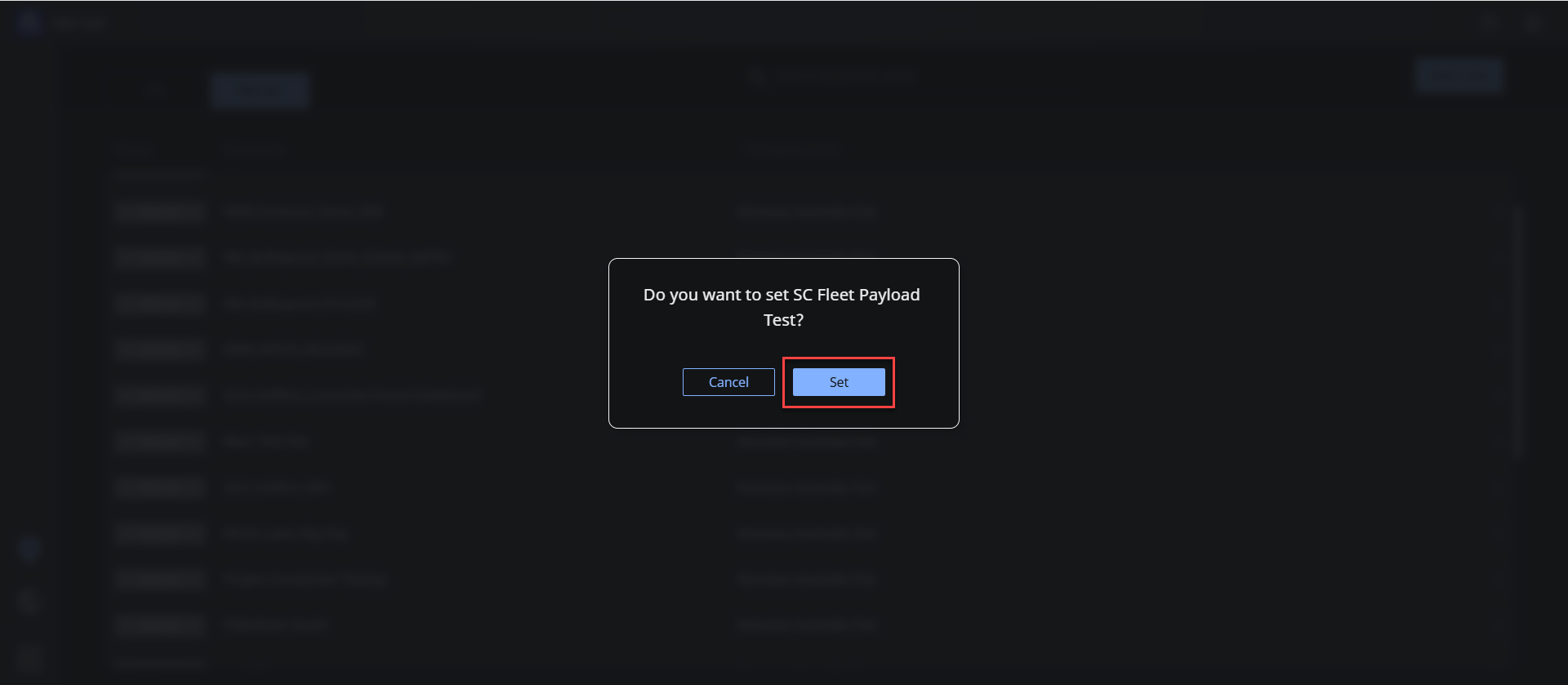

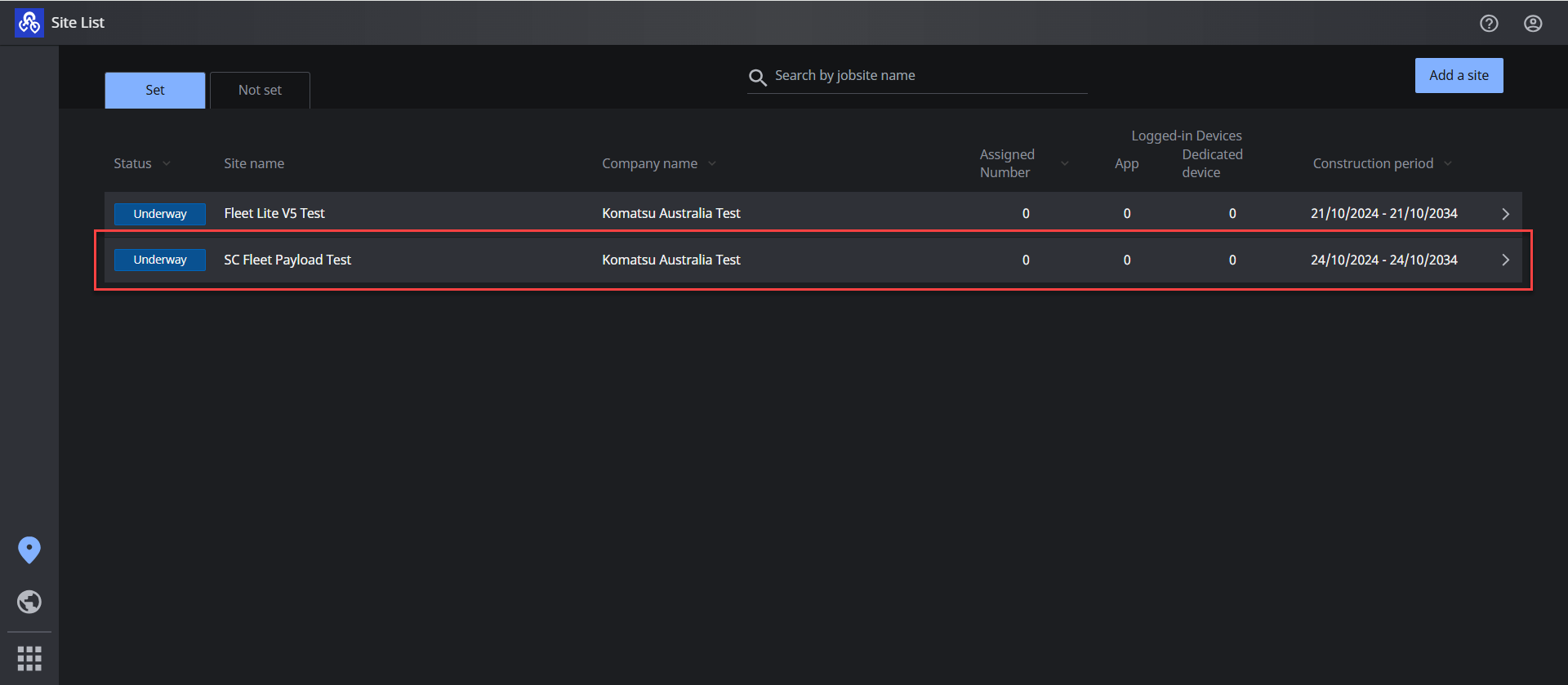

    2. Tap “Not Set” tab and press a site to set up a project


Register Payload Machine

  1. Press the project in “Set” tab

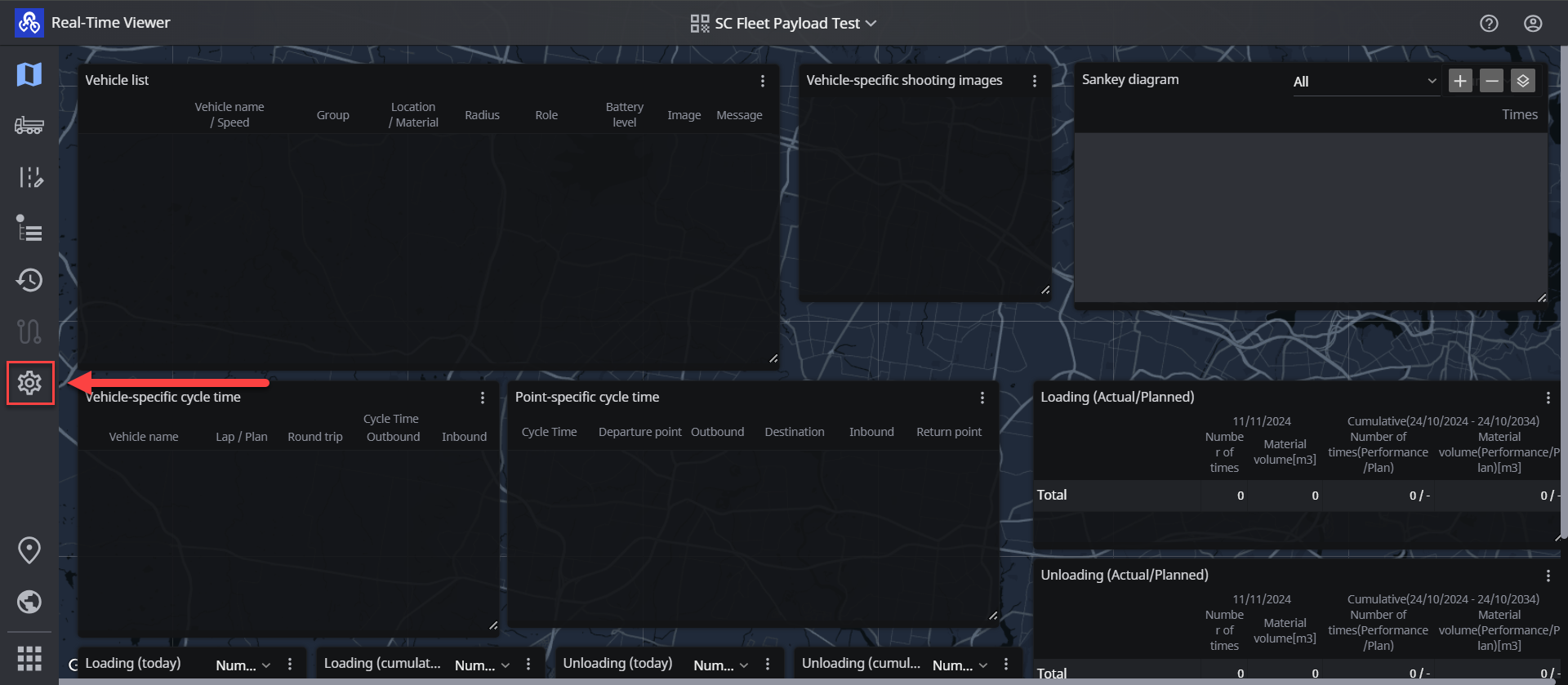

  1. Press the setting button (Left panel of window) to open the setting list

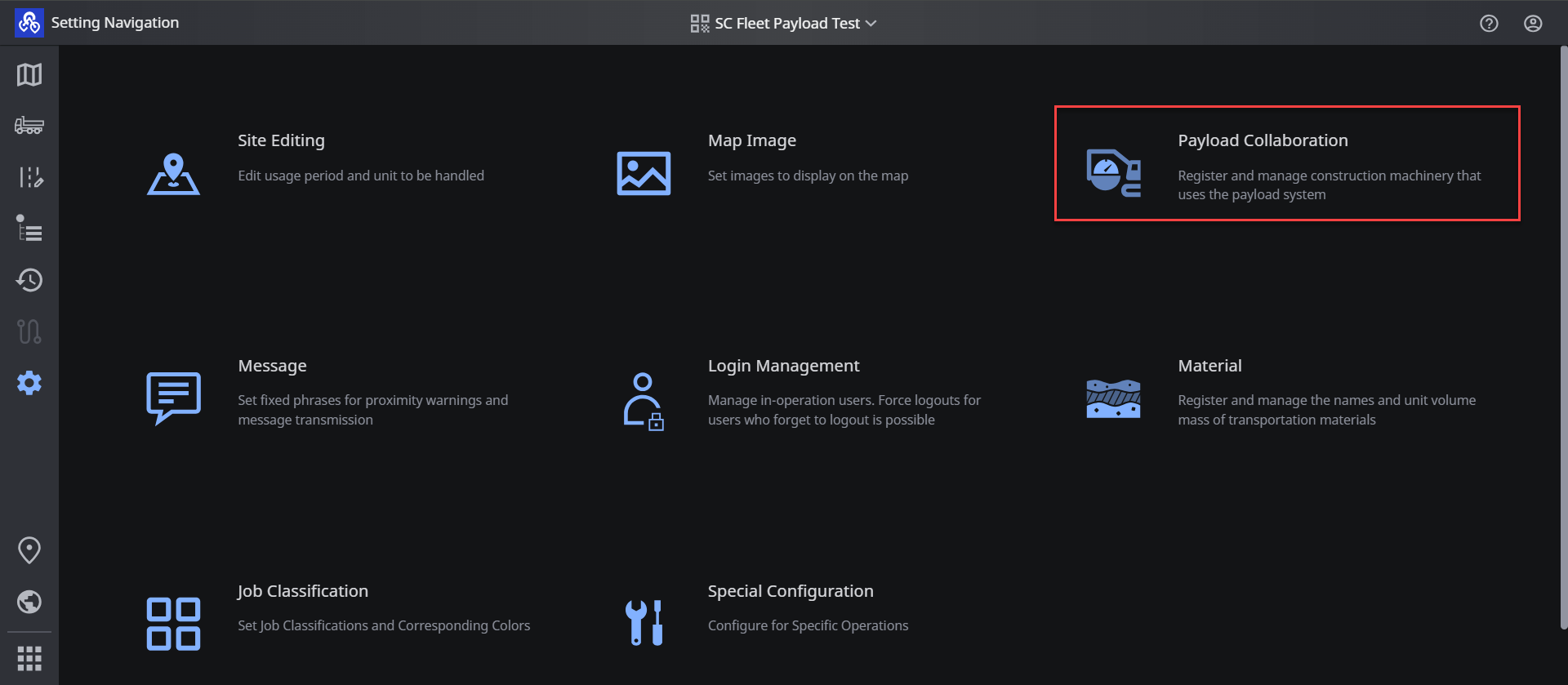

  1. Press “Payload Collaboration”

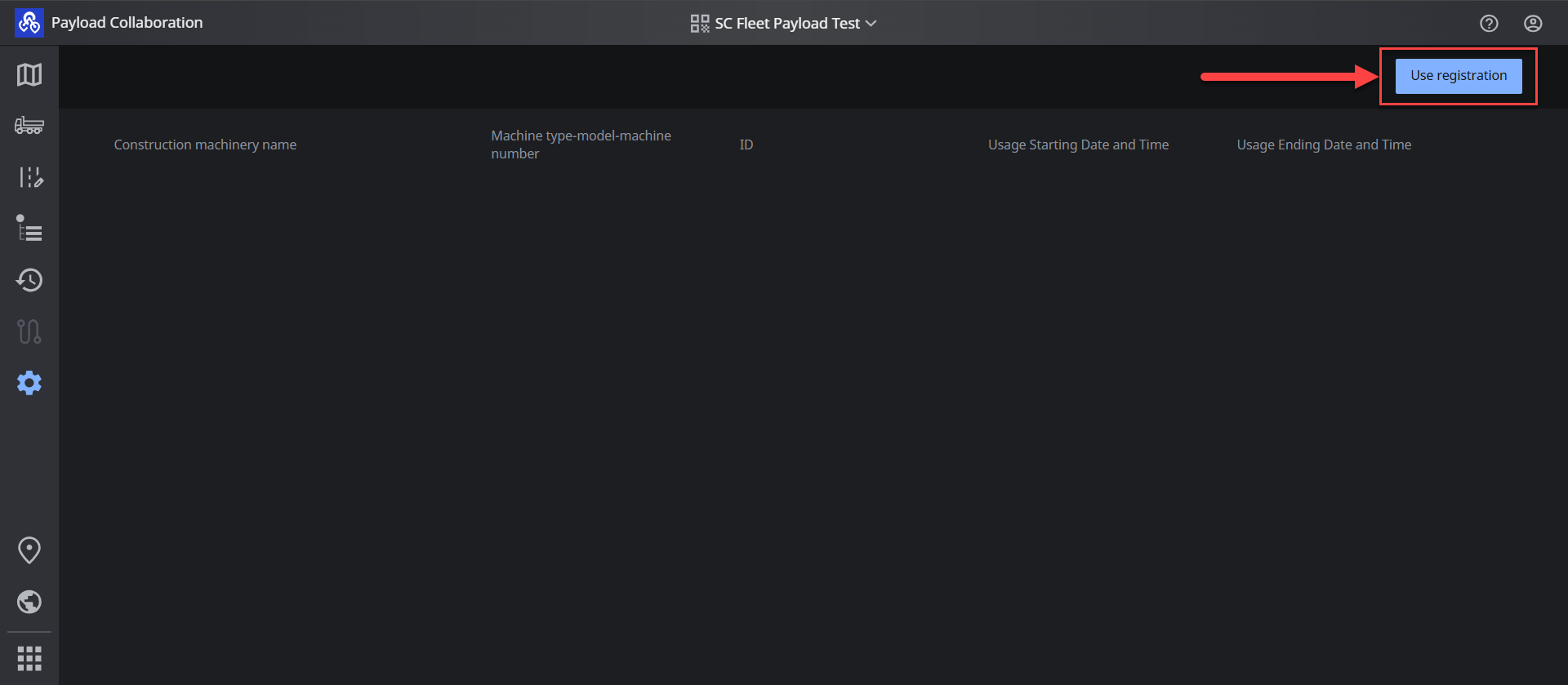

  1. Press “User registration” (Top right of window)

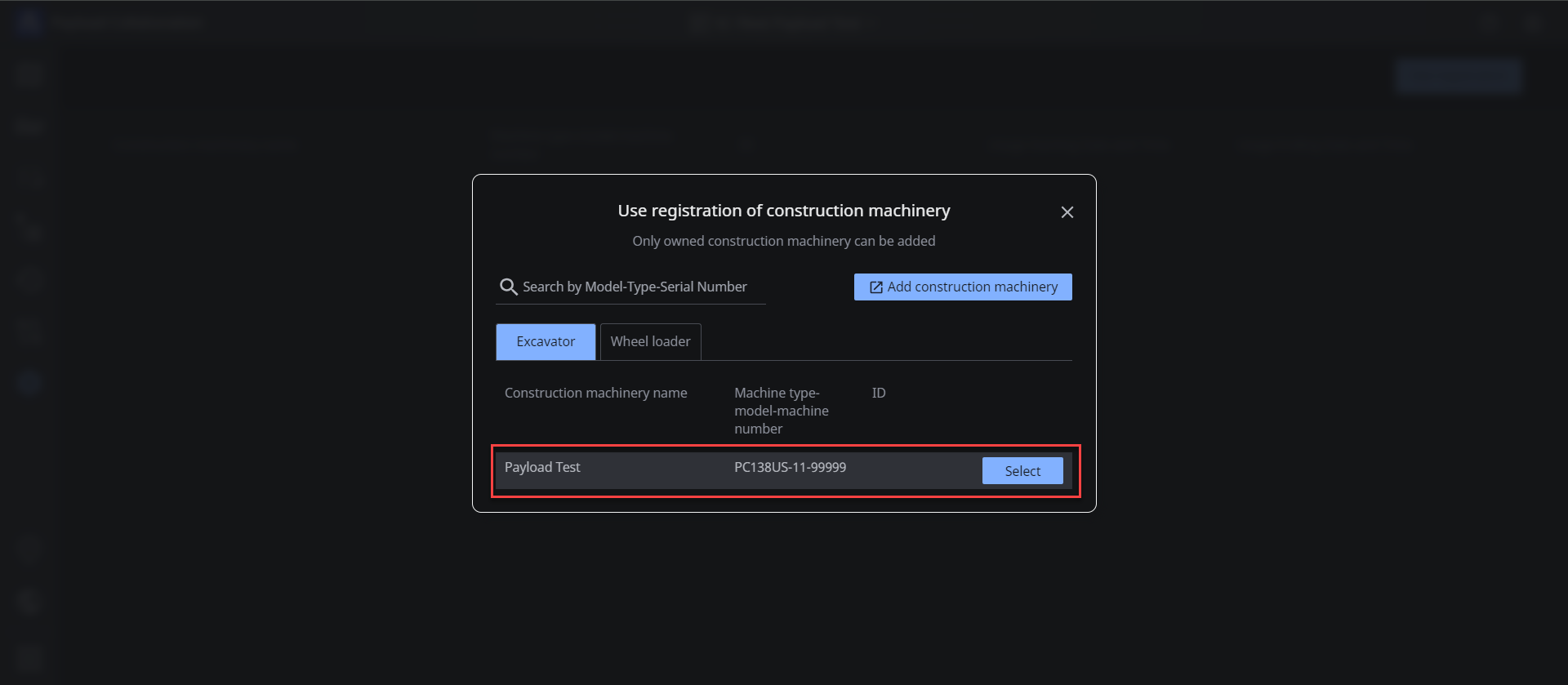

  1. Select the Payload machine from the machines list. This list contains all machines belonging to your organisation

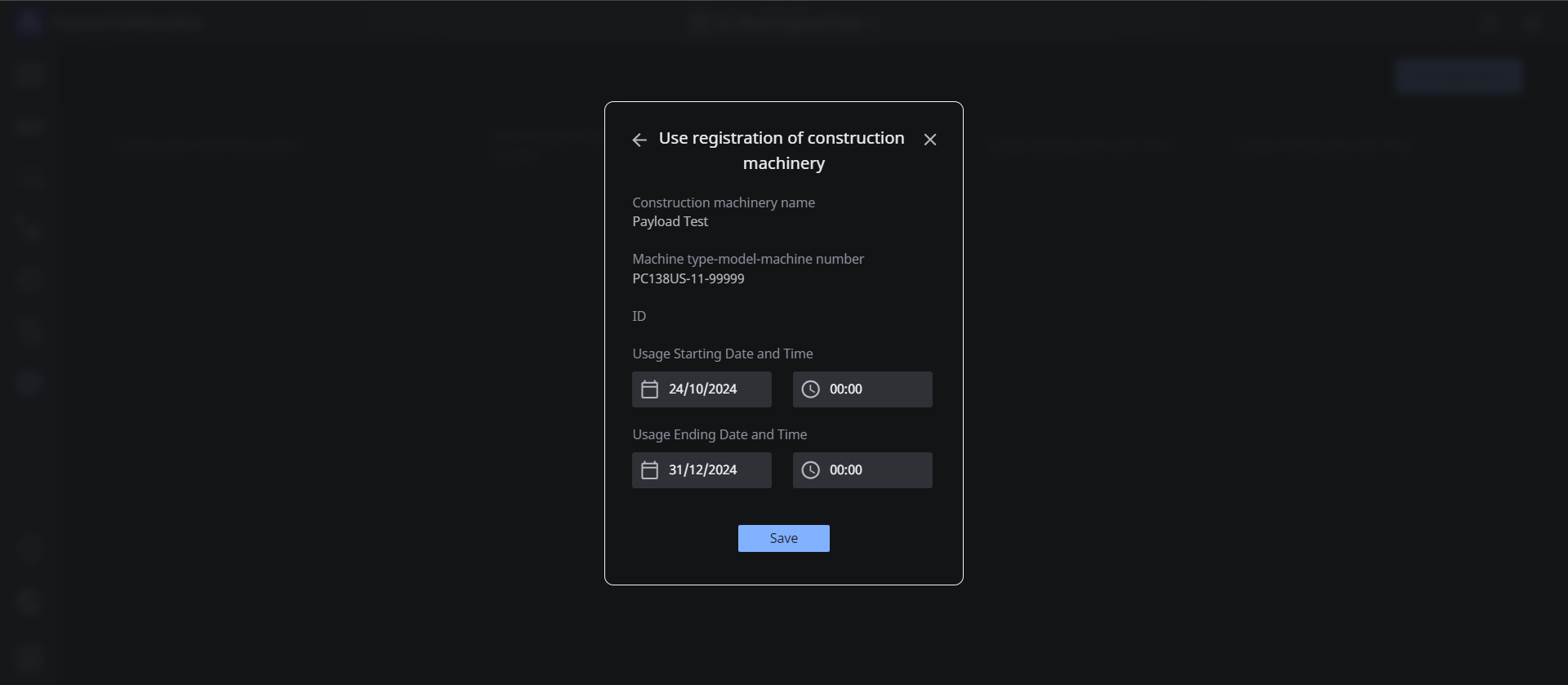

  1. Enter “Starting Date and Time” and “Ending Date and Time” and press “Save”

:warning:

Outside of the period, it will not be possible to search for dump trucks from SC Pilot tablet.

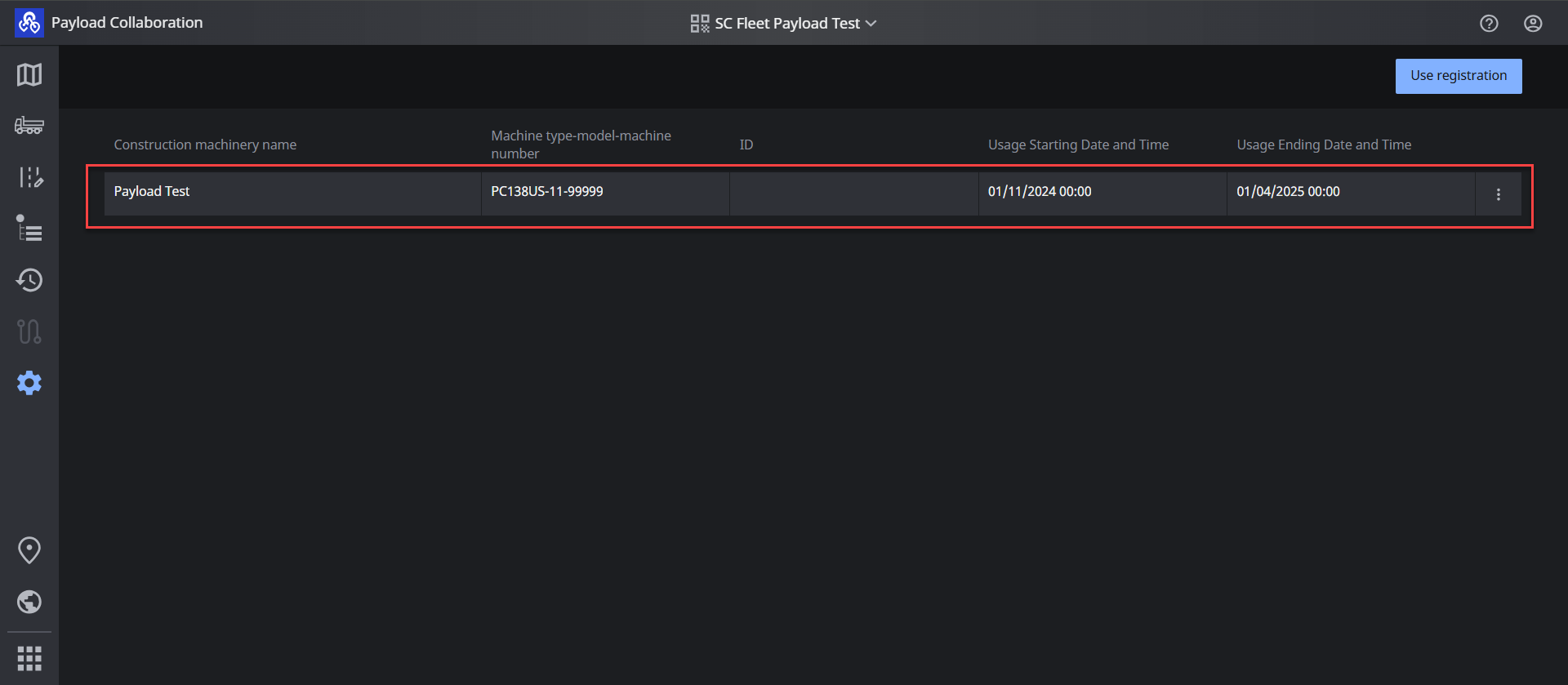

  1. The machine has been registered as Payload machine


Register Dump Truck

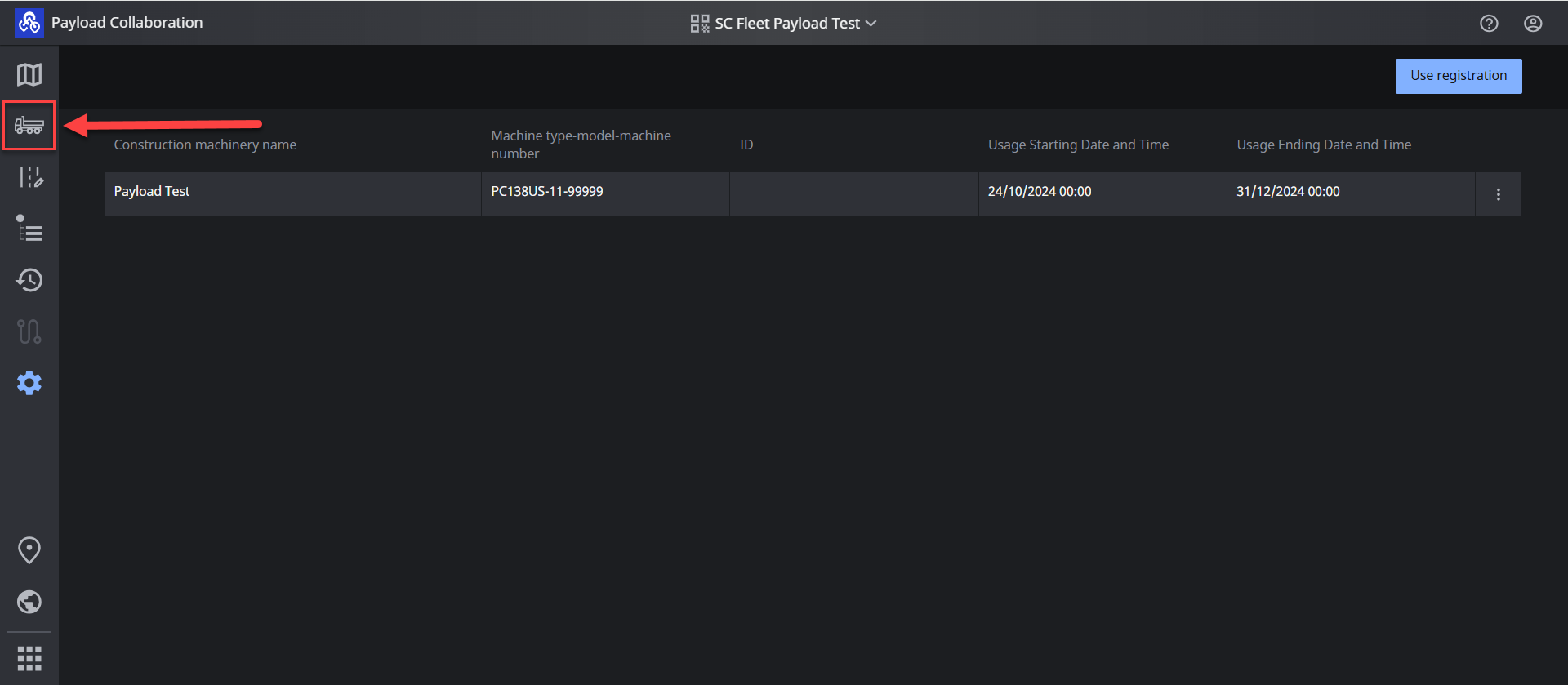

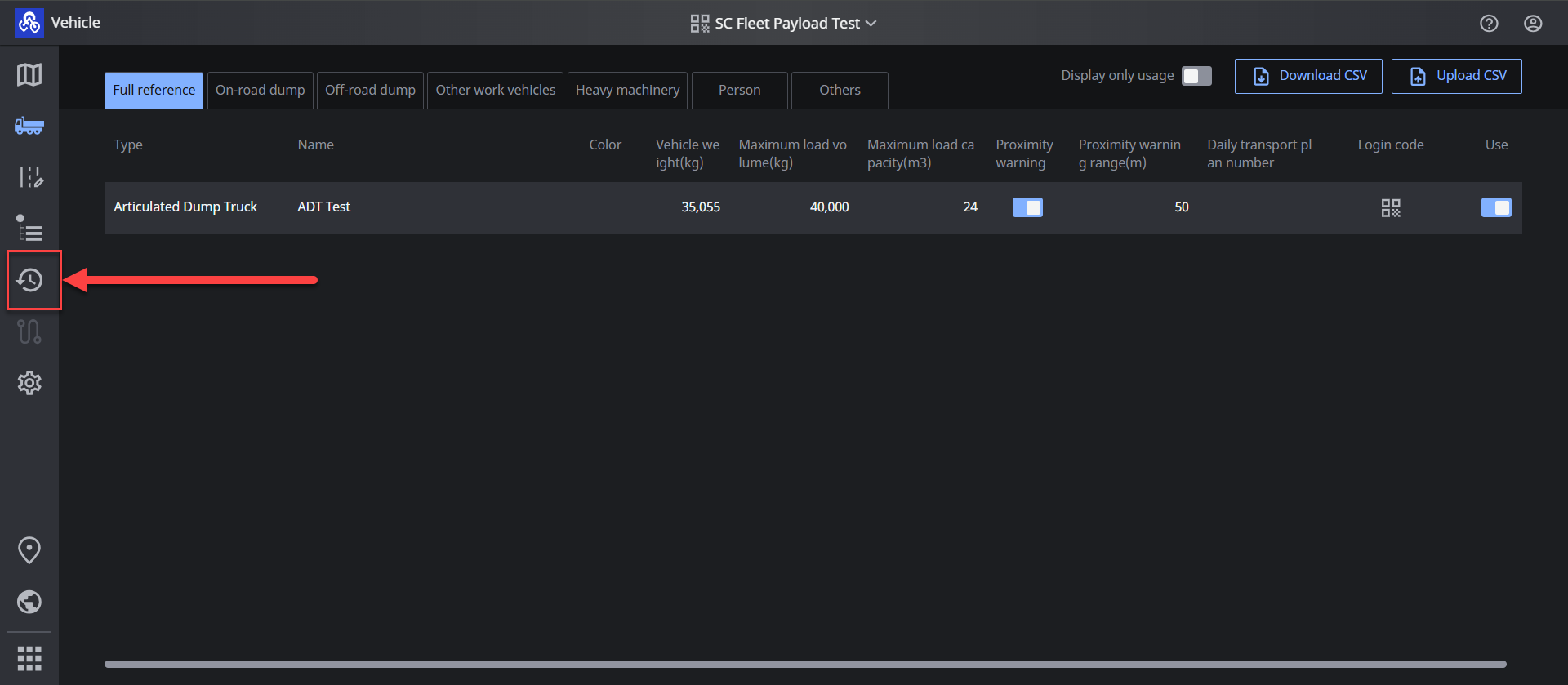

  1. Press Dump Truck button (Left panel of window)

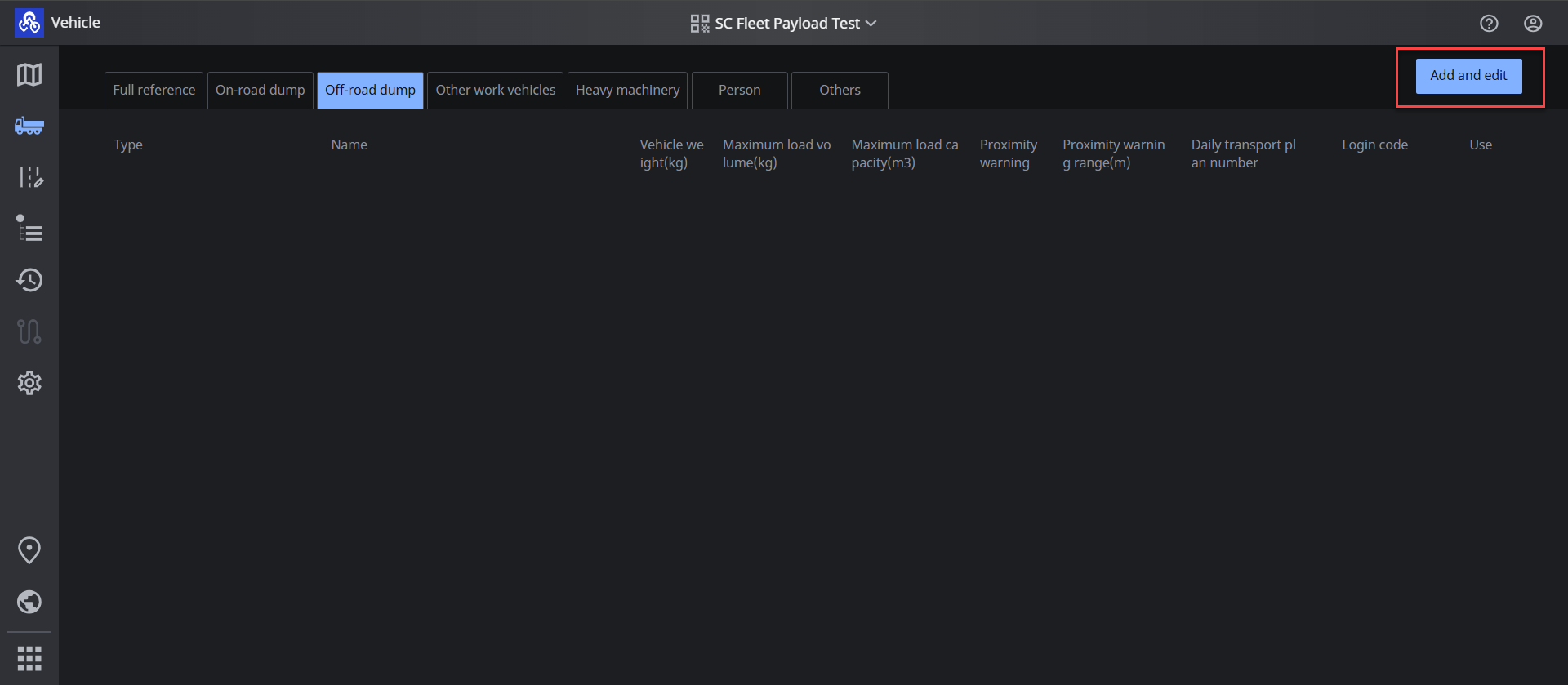

  1. Tap “On-road dump” tab or “Off-road dump” tab and press “Add and edit”

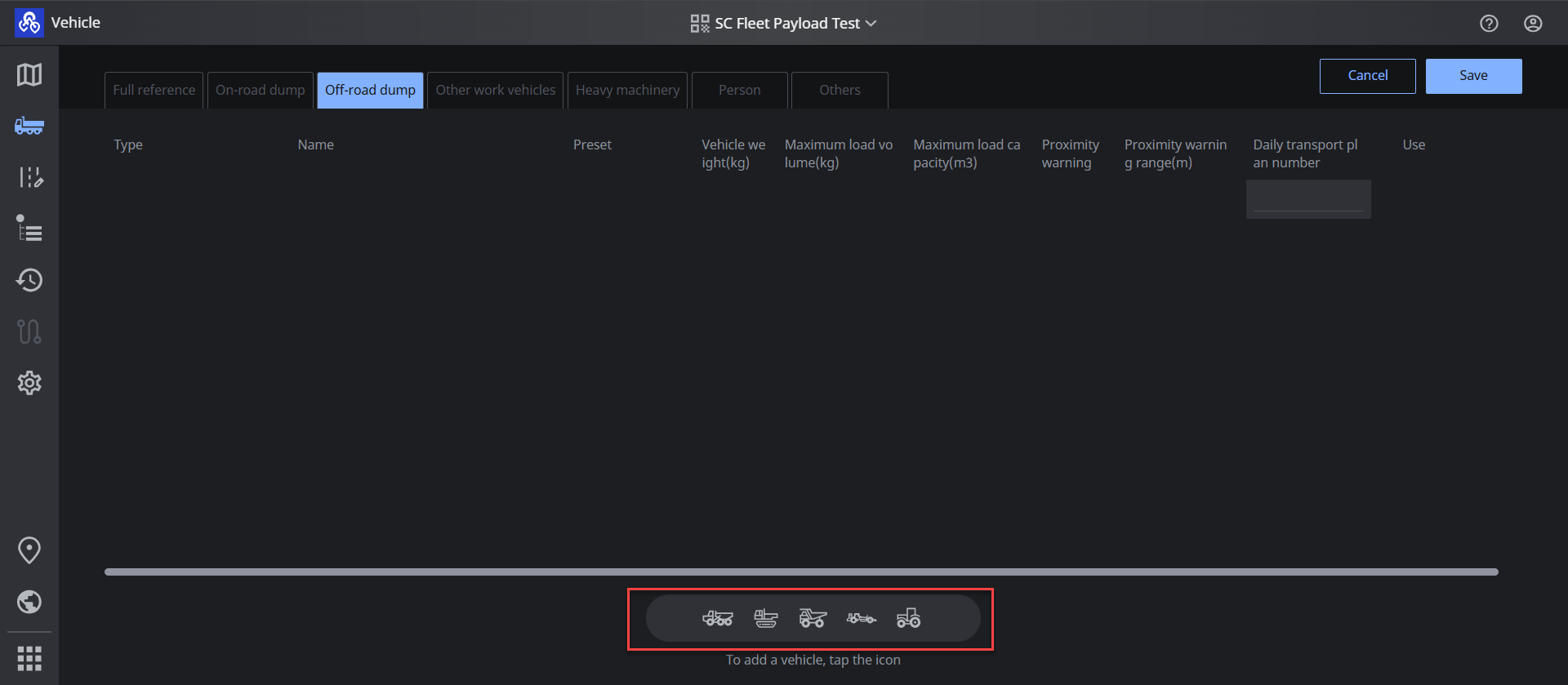

  1. Select Dump Truck type from the icons (Bottom of window)

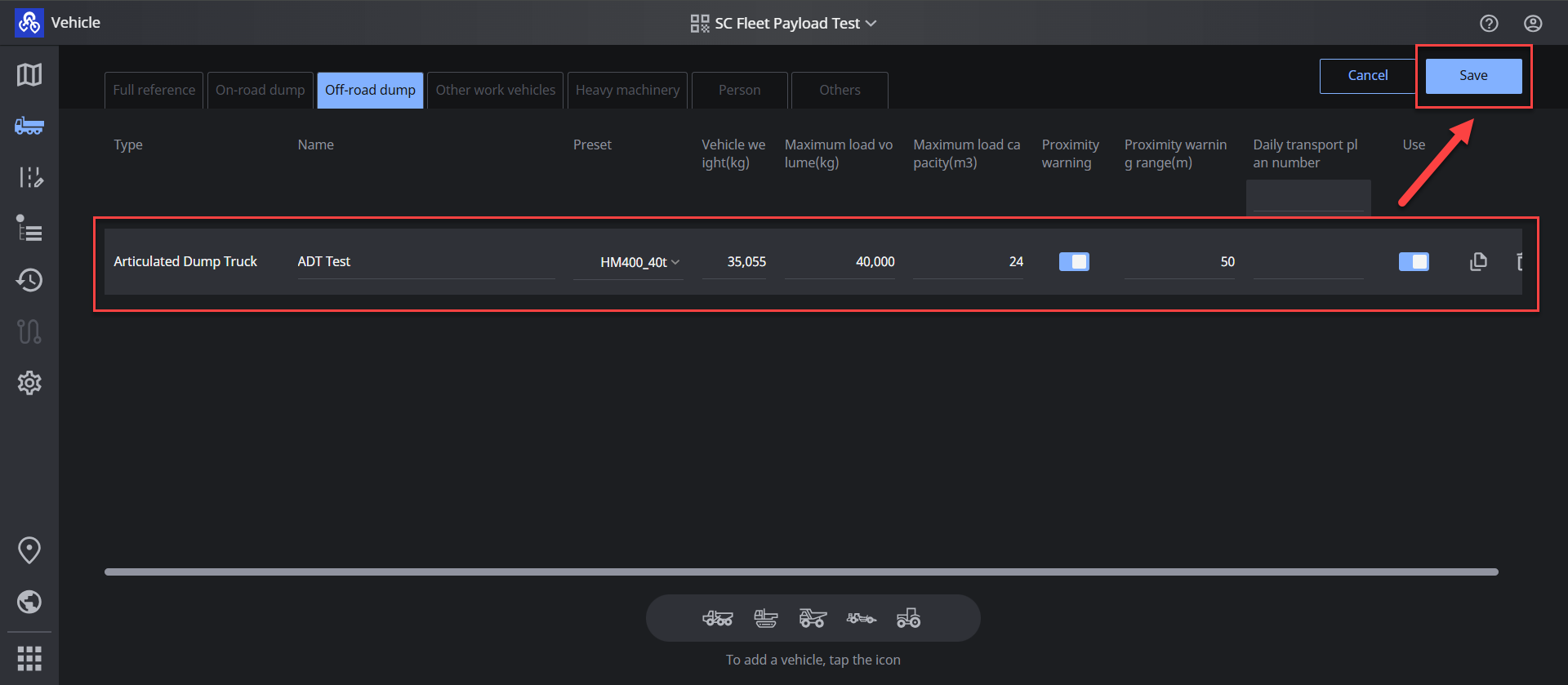

  1. Enter Dump Truck parameter and press “Save”

    1. Name

    2. Vehicle weight

    3. Maximum load volume

    4. Maximum load capacity

    5. Proximity warning (ON or OFF)**

    6. Proximity warning range**

    7. Daily transport plan mumber**

** - only applicable when using SC Fleet (Full version)


  1. If these steps are completed, the dump truck will appear in truck list on SC Pilot Tablet application (may require application restart to appear once new vehicle is added)

Register Payload Machine

Payload information must be correctly configured on the Pilot Tablet app, otherwise data syncing will not occur.

  1. In Smart Construction Pilot (Tablet app), access the Machine Settings menu in Administrator settings menu

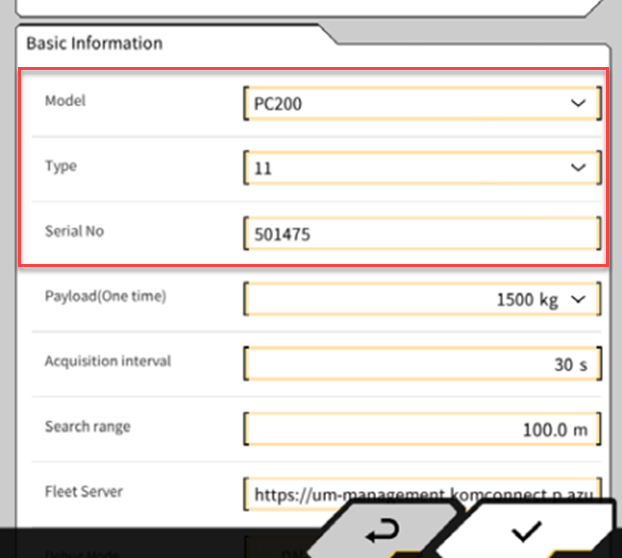

  2. Ensure the payload machine information entered is correct for Model, Type, and Serial.



For payload result to be accurate, machine must be properly configured, calibrated and verified. If the information is not populated, or not correct, Contact Smart Construction Support Centre (SCSC) for assistance.

Standalone mode vs Syncing mode

By default, every SC 3DMG system will be set to “Standalone” payload mode. Standalone mode does not sync any payload data to the server. Using the Payload system in standalone mode is for real time reference only and all data will be lost. Additionally, trucks created on SC Fleet Lite will not be displayed in Standalone mode.

In order to store all load data and obtain the truck list, the system must be configured to “Syncing” mode.


List of Dump Truck

If the SC Fleet Lite application and SC Pilot Tablet application are configured correctly and the system is set to “Syncing” mode, vehicles created in SC Fleet Lite will be shown on the operators payload interface.


View Payload Results

  1. Log into “SC Fleet Lite” web application

  2. Select the project by clicking the site name

  3. Press the performance button (Left panel of window)

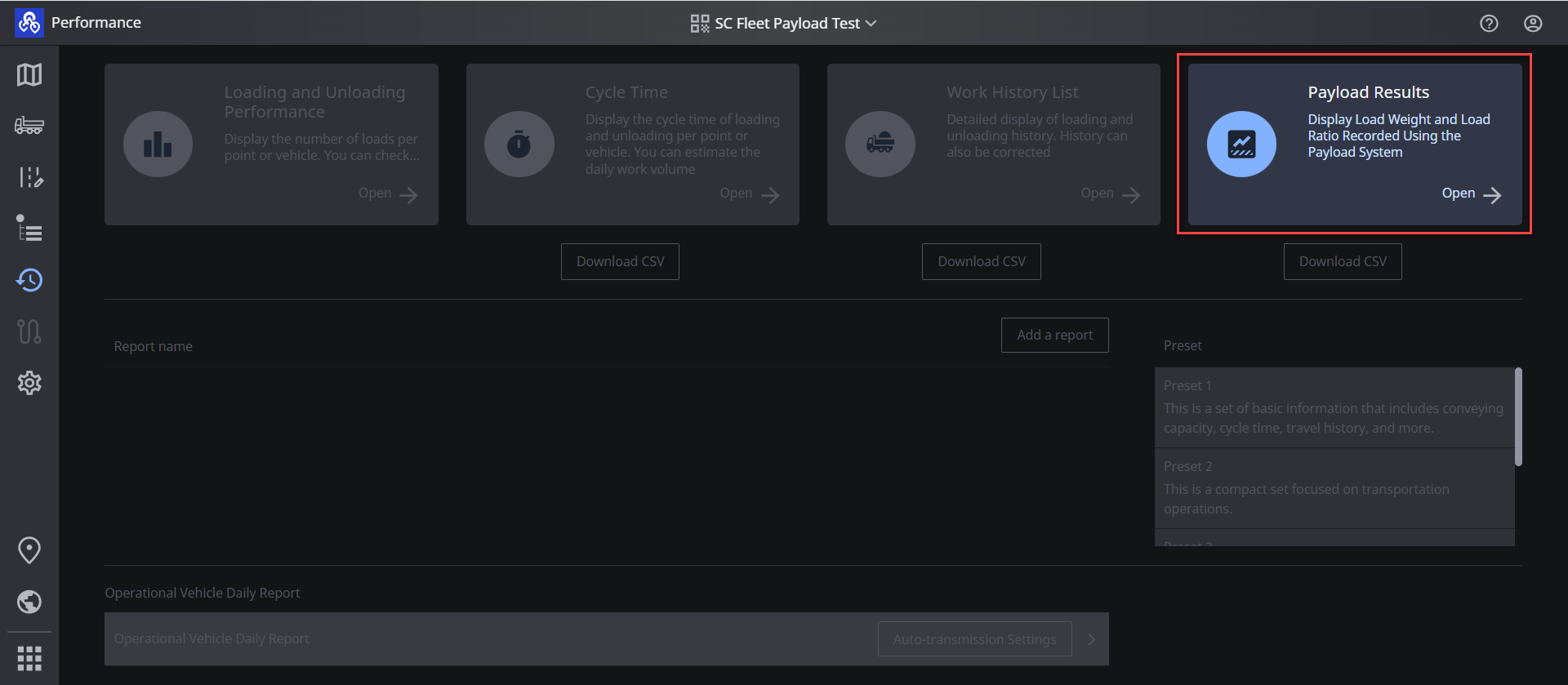

  1. Press “Payload Results”

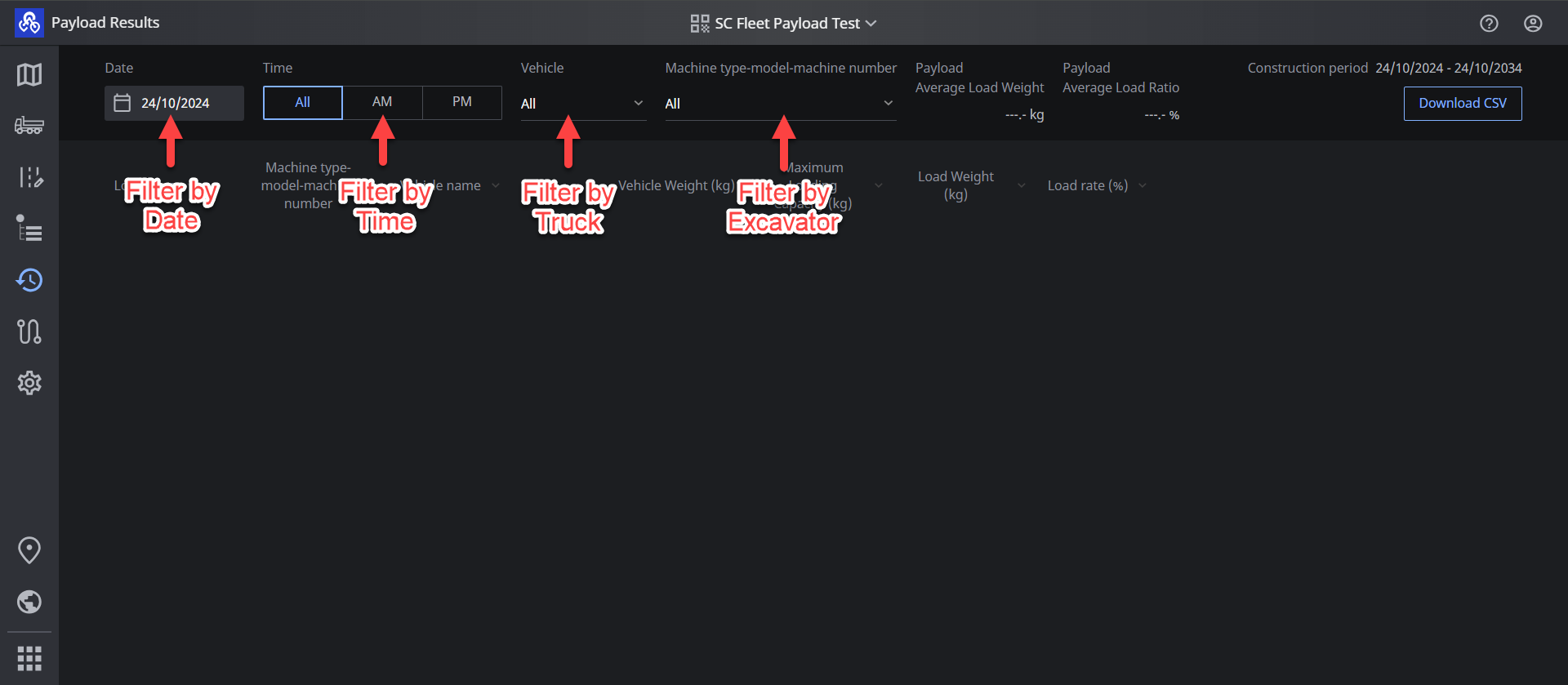

  1. Use the filters to show the required data

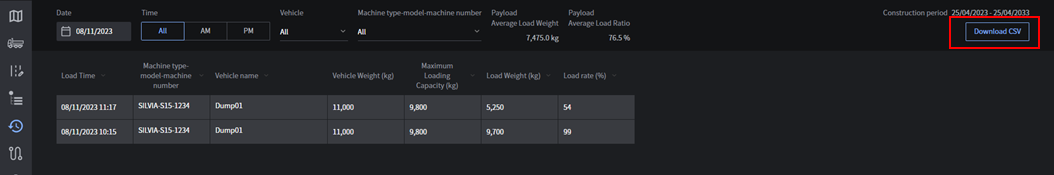

  1. The data can be viewed in the web viewer, or downloaded to text format (csv) using the download button (Top right of window)

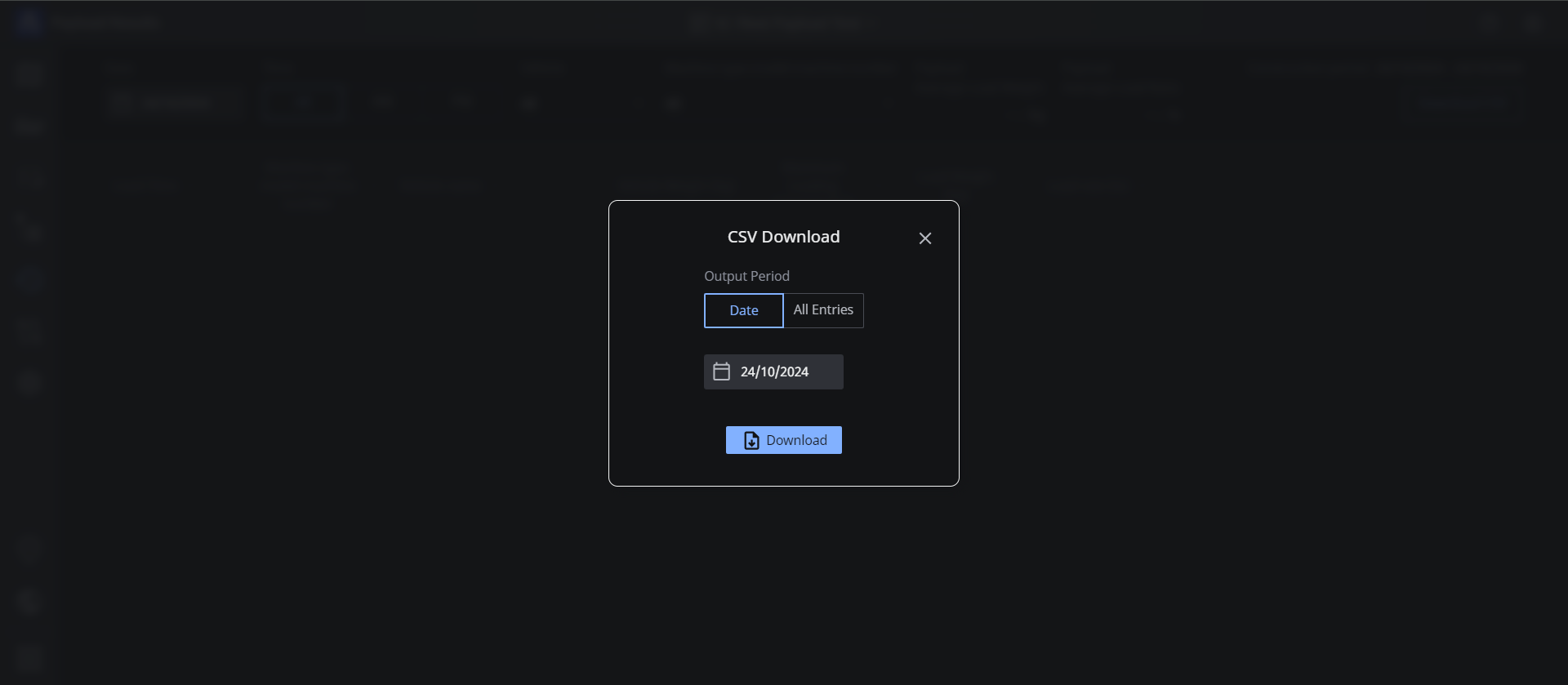

  1. CSV Download modal window will pop up. Specify “Date” or Select “All Entries” and press “Download”

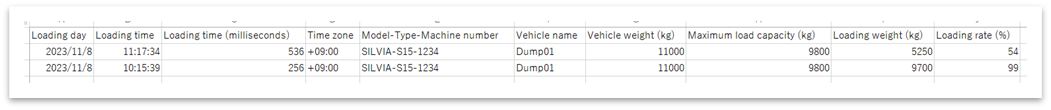

  1. CSV file will be download, which includes Loading date, Loading time, Excavator information, Dump Truck information, Payload weight, and Payload ratio
