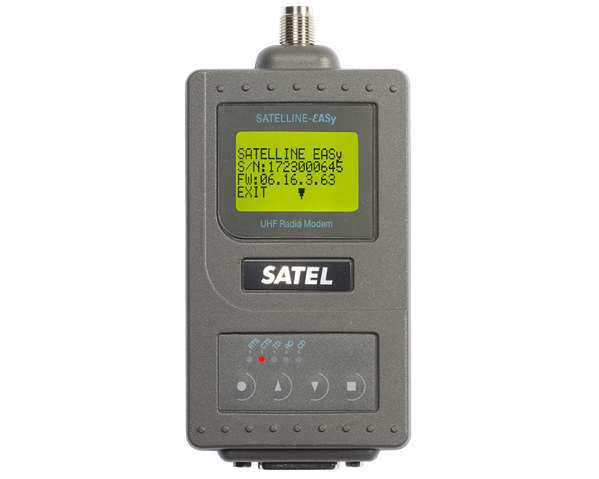

Configure Satel UHF radio

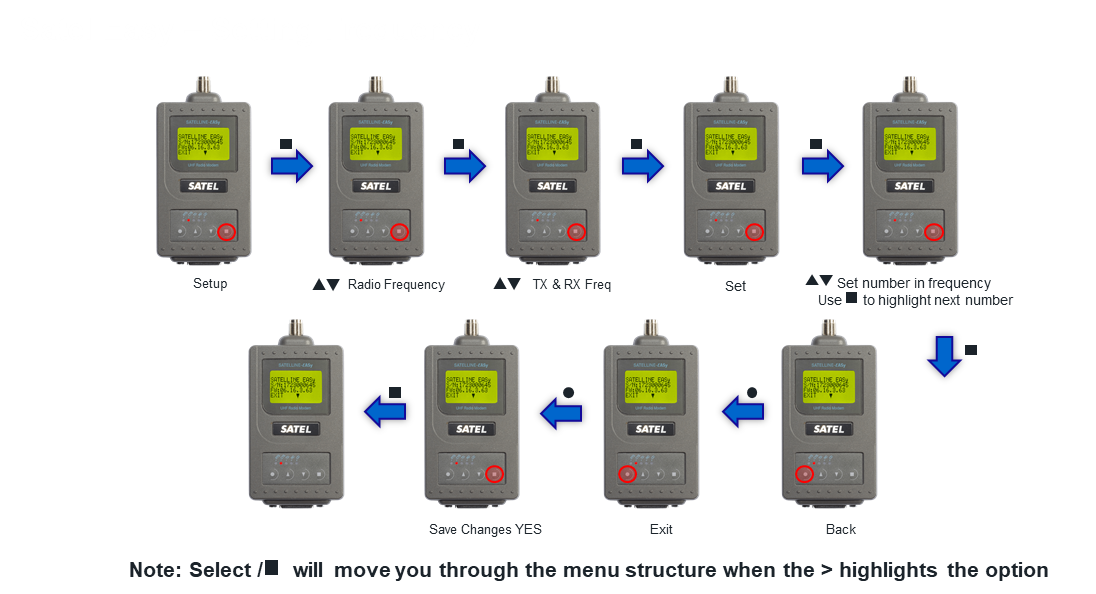

Set Radio Frequency

*Added step - after selecting TX/RX frequency, you will get a page that says High/Low - select set again to reach the frequency page

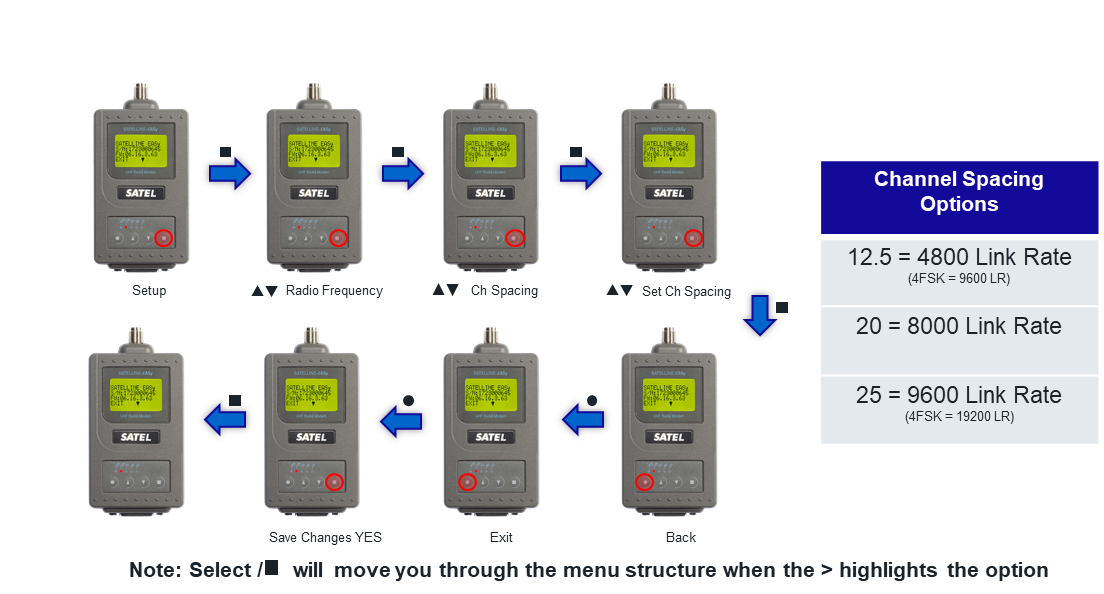

Set Channel Spacing

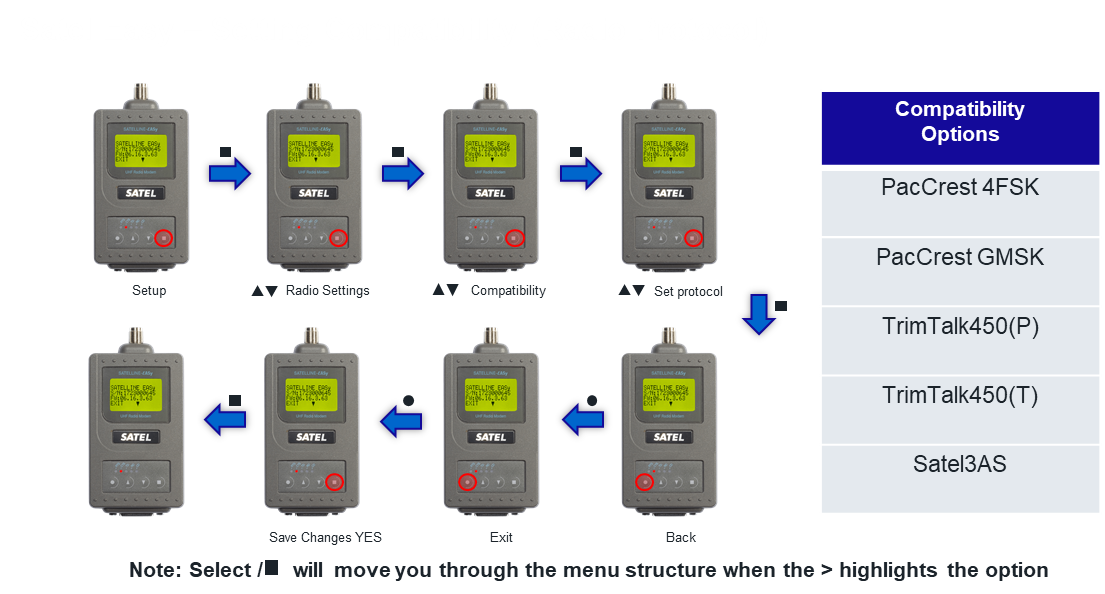

Set Compatibilty Options

Note: Trimtalk450 (P) = Topcon Base, Trimtalk450 (T) = Trimble base

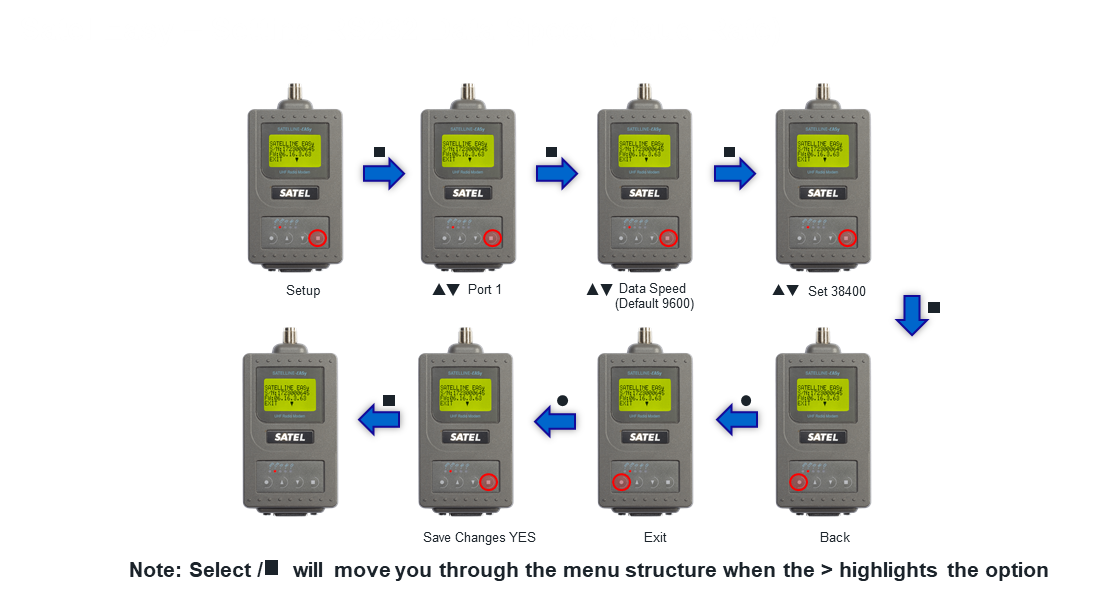

Set Port and baud rate

this should be minium 38400

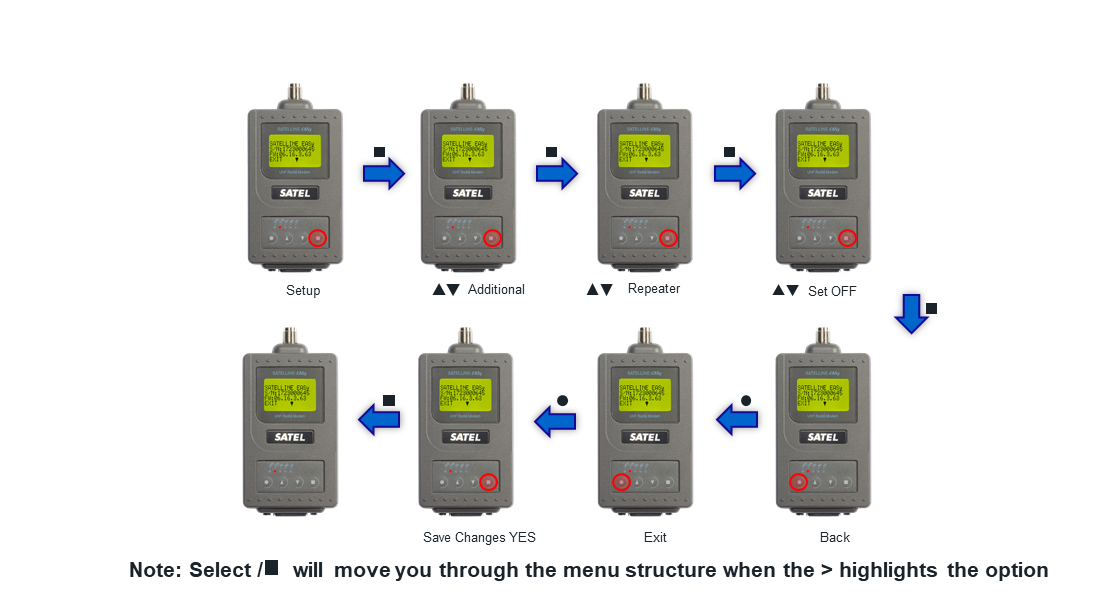

Set Additional settings
