Equipment and Park Brake Lock

  1. Always turn OFF Automatic control before leaving machine to prevent uncontrolled movement of machine

  2. Set work equipment to the ground (i.e. bucket or blade)

  3. Ensure control lever is set to the lock position and park brake engaged.


F = Free

L = Lock

** In cold weather, ensure adequate warm up process is undertaken to avoid slow work equipment response

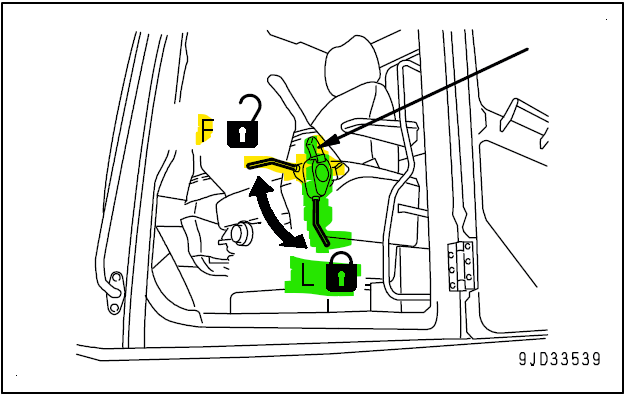

Excavator


Hydraulic lock lever

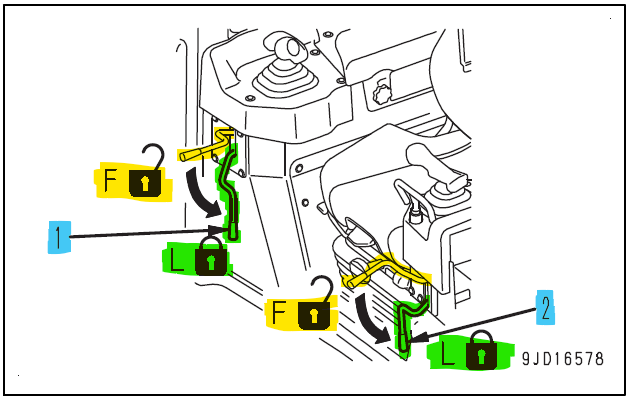

D61EXi


Hydraulic lock lever (1)

Park Brake lock lever (2)

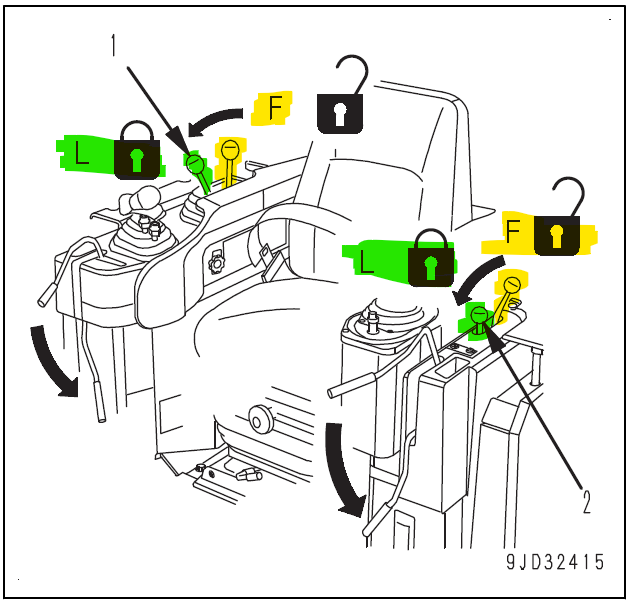

D65EXi-18

D85PXi-18


Hydraulic lock lever (1)

Park brake lever (2)

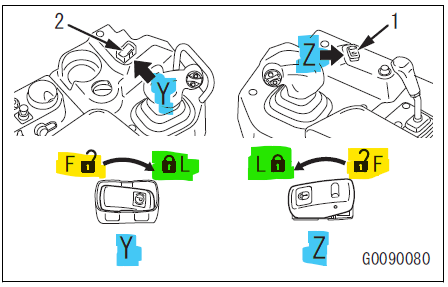

D71PXi-24



Hydraulic lock switch (Z)

Park brake switch (Y)

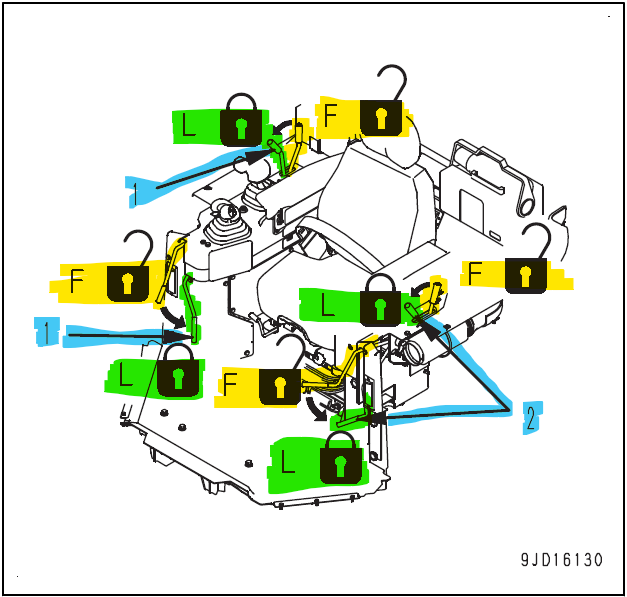

D155AXi-8


Hydraulic lock lever (1)


Park brake lever (2)
