Product Summary
By importing 3D design data and measured point cloud data into the web application, the required amount of soil can be calculated instantly.
Additionally, by integrating with ICT construction equipment, progress can be visualized, allowing users to easily track both the remaining and accumulated soil quantities.
・Data is stored in the cloud, enabling seamless sharing with relevant stakeholders.
・Progress management is facilitated by integrating the construction history data from ICT construction equipment with Asbuilt data*1,2.

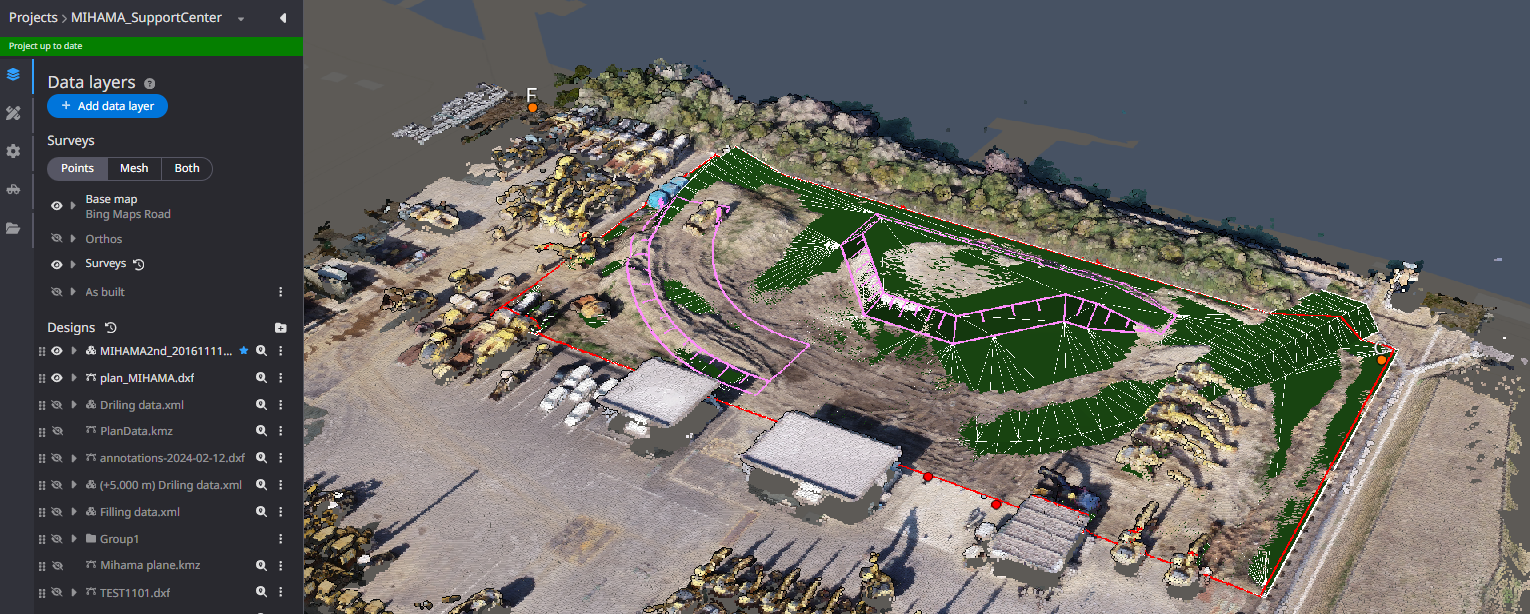

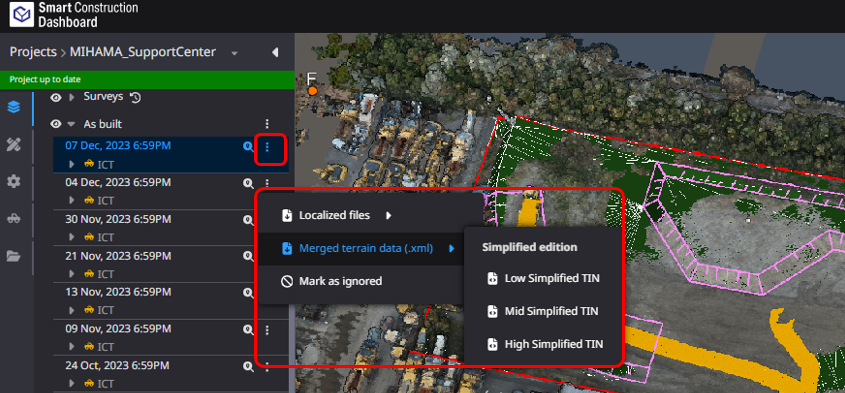

*1 When connected to SC 3D Machine Guidance system or Komatsu iMC, the Asbuilt data is automatically uploaded to SC Dashboard.
*2 Asbuilt from ICT construction equipment from other manufacturers can be integrated by manually uploading the files.
Data required for using Smart Construction Dashboard (BOLD: Recommended extension)
-

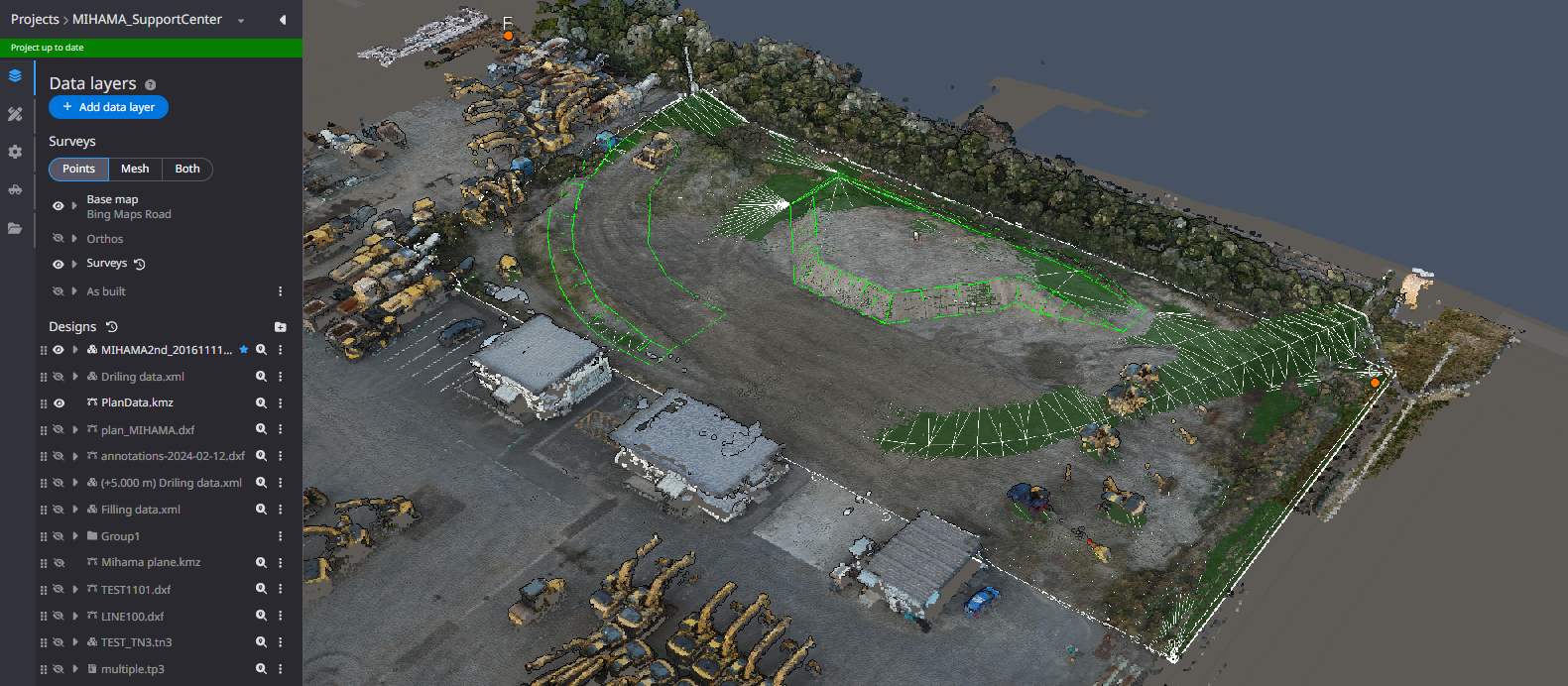

3D design data (dxf xml tp3 tn3 ttm svd dsz)
-
3D surveying data (dxf xml txt csv las laz)
Data more useful for site management
-
Surface data (dxf xml tp3 svl dsz)
Asbuilt data of ICT construction equipment on site
-
Asbuilt data (dxf xml txt csv svl dsz)
Komatsu iMC (Data automatically uploaded after connected to cloud)

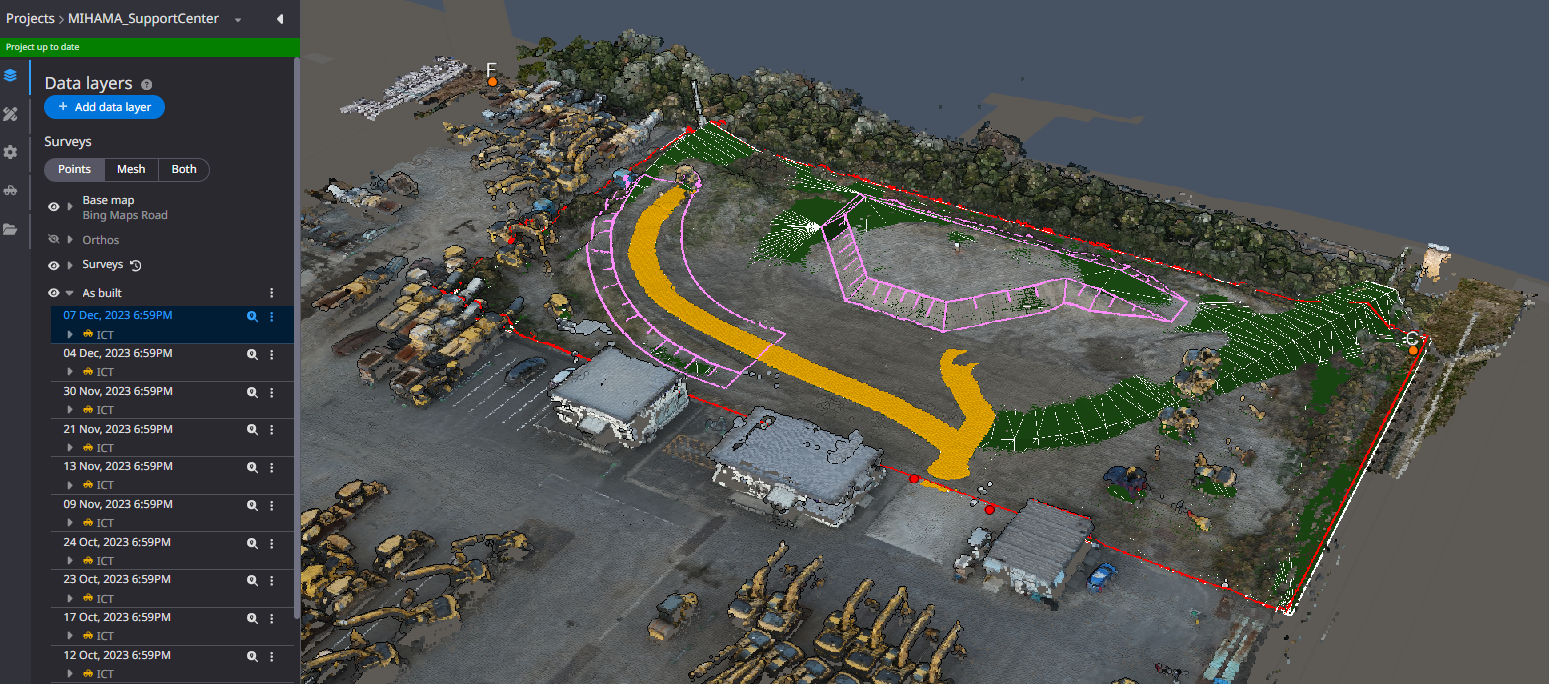

Smart Construction 3D Machine Guidance (Data automatically uploaded after connected to cloud)

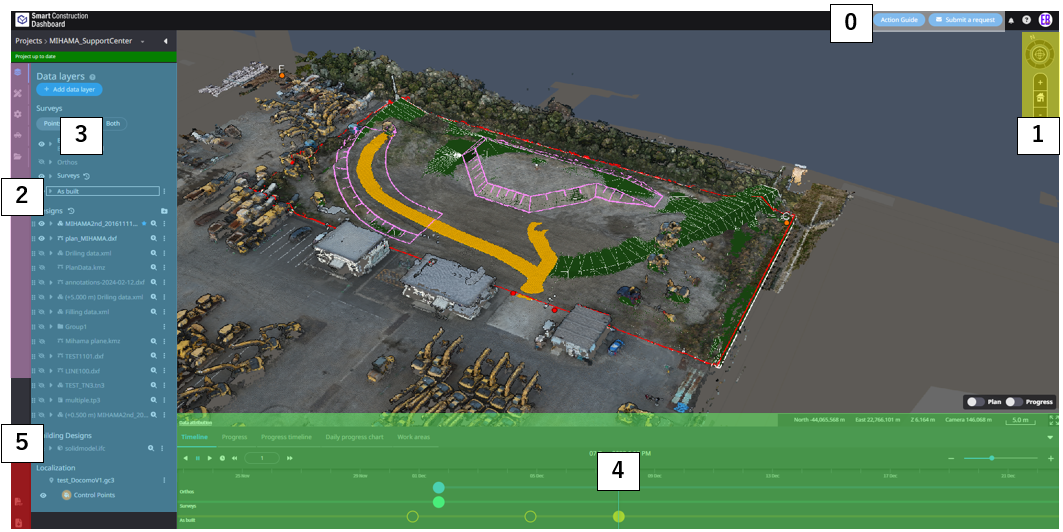

Display Guide
#0 Action Guide and Inquiry Form
Please refer to this section if you encounter any issues with the operation.
#1 Viewer Controls
Use the Home button and viewer rotation controls to adjust the zoom and navigate the view.
#2 Side Menu
Access measurement tools, construction equipment connections, basic settings, and shared files from the menu.
#3 Side Panel
Use the panel to import data.
#4 Bottom Panel

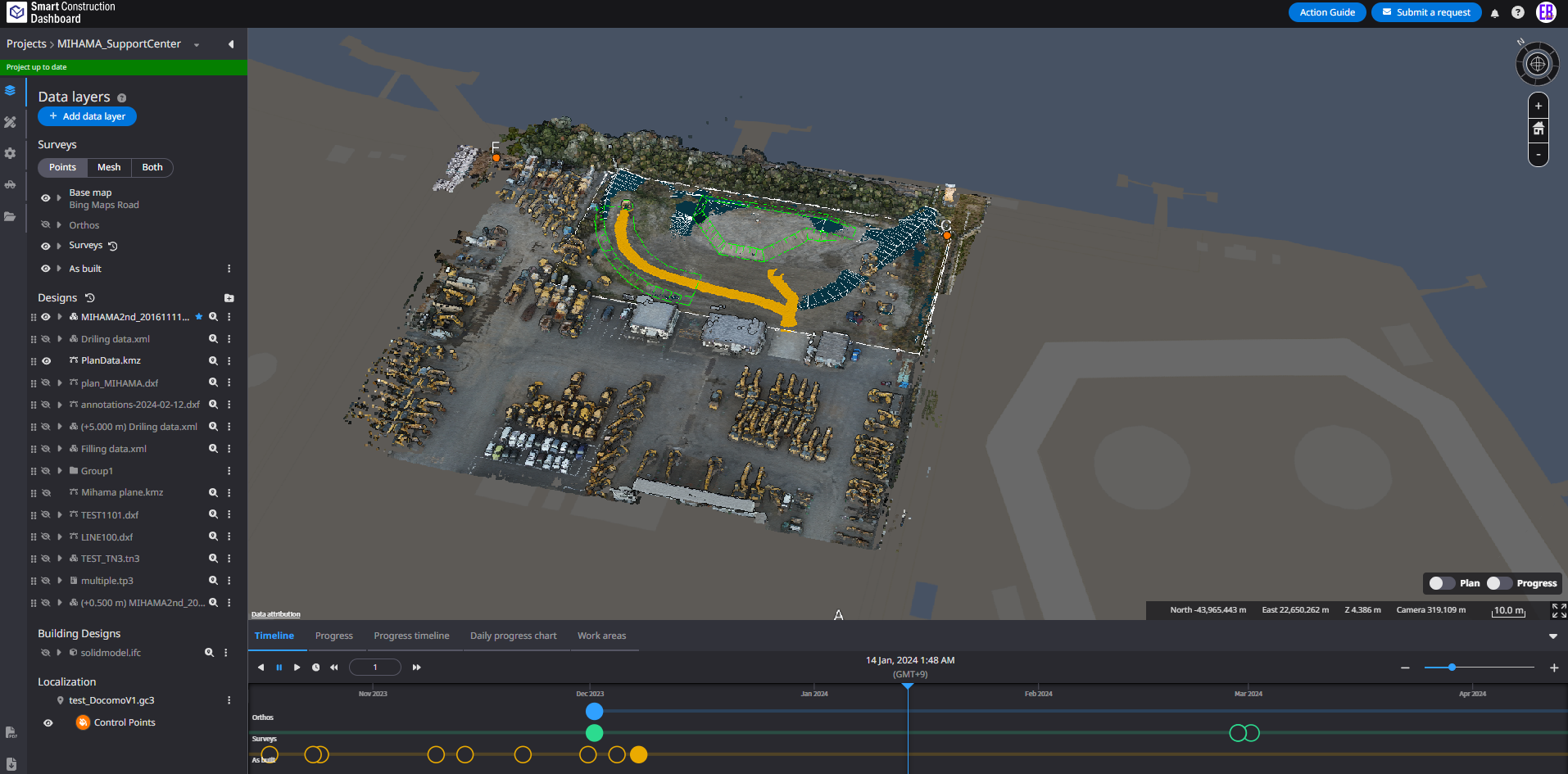

Displays the timeline of imported data, soil calculation results for progress management, daily progress, and more.
#5 Output Function Menu
This menu provides access to report generation function.
How to use Smart Construction Dashboard
Use Case1: Soil volume calculation (Design range or Partial range)
-

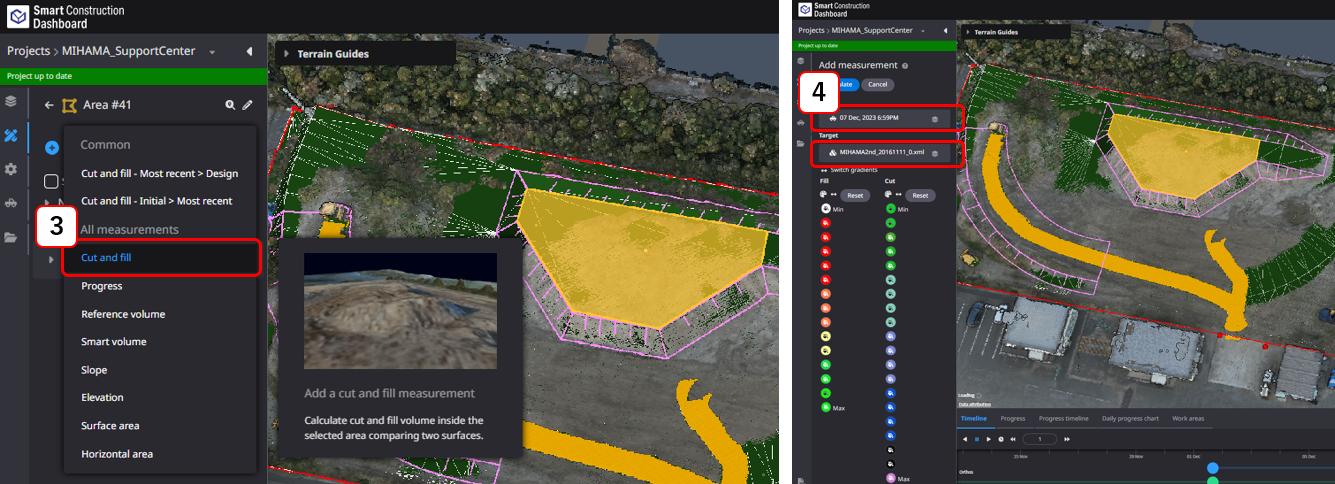

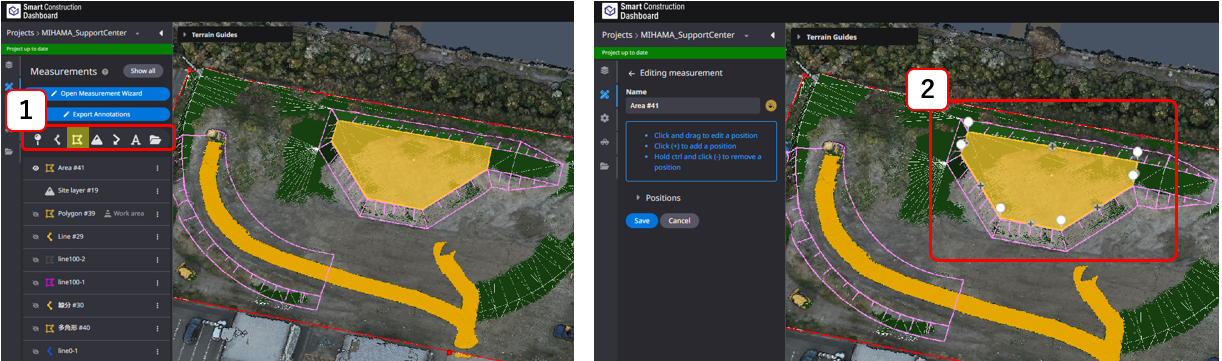

Select or outline the area you want to calculate.
-
Choose the required function from the menu.
-
Select the data to be used for comparison.
-
Execute the calculation.
Example: Progress Tracking

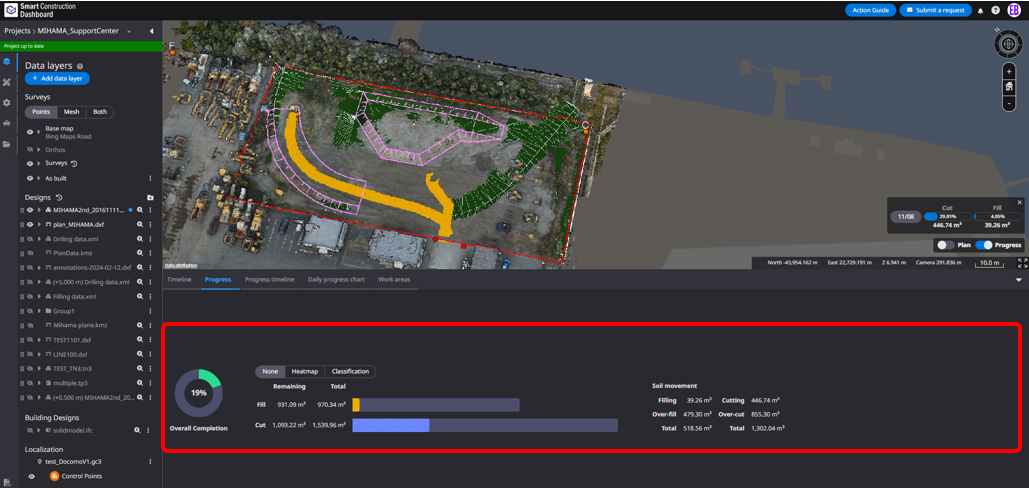

Check the progress of the construction work on site efficiently from the under panel, and daily quantities can also be monitored by switching menus.
Use Case2: Linkage with ICT construction equipment and 3D Machine Guidance
Asbuilt data is automatically uploaded from the connected Komatsu iMC or Smart Construction 3D Machine Guidance. Additionally, the constructed area can be exported in csv format, etc.
