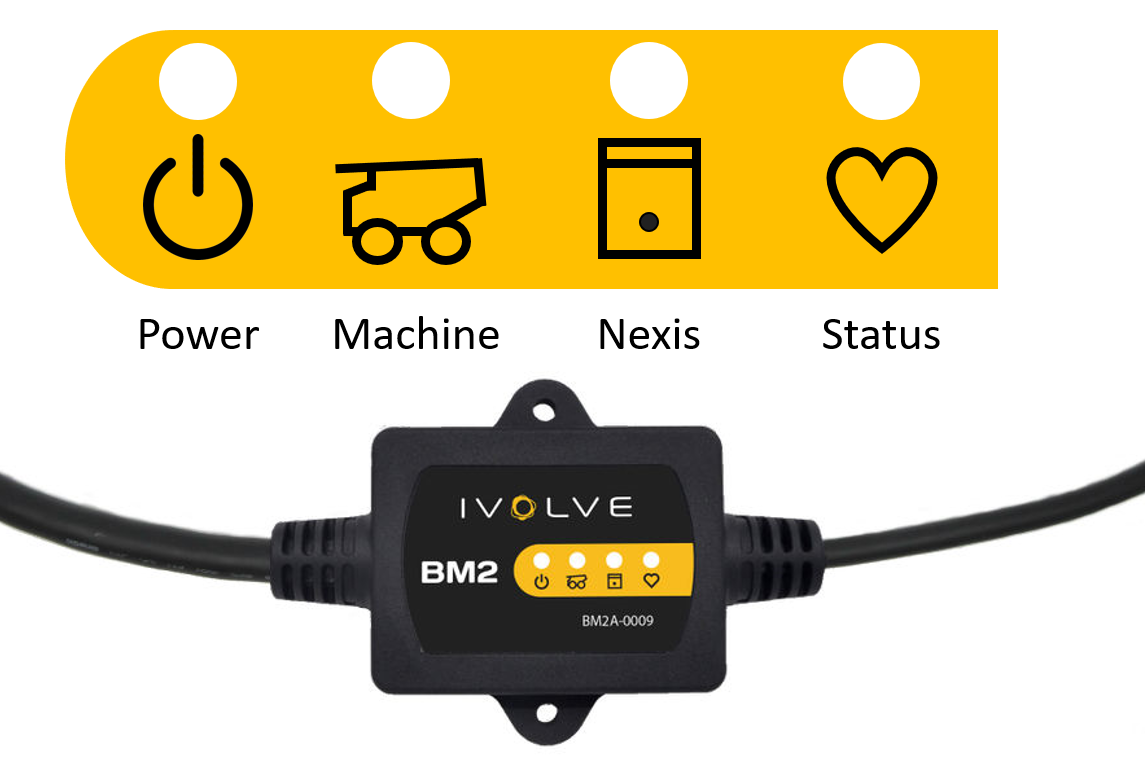

The LEDs on the BM2 change colour and illumination pattern to indicate various meanings.
The following LED behaviour applies to BM2s with serial numbers prior to BM2A0070. For later serial numbers, refer to the Interpreting LED states information.
BM2 devices with serial numbers after BM2A0070 have a different LED specification.
Power LED
|
State |
Meaning |
Action |
|---|---|---|
|
Solid red |
Power applied. |
None. |
|
Off |
No power. |
Is power expected? If so, check the device, Nexis cable, and Nexis connector. |
Nexis LED
|
State |
Meaning |
Action |
|---|---|---|
|
Green |
Received data from Nexis. |
None. |
|
Flashing red |
Initialisation failure of Nexis communications interface. |
Replace BM2. |
|
Solid red |
Initialisation failure of other component. |
Replace BM2. |
|
Flashing yellow Flashing white |
High Nexis communications error rate. |
Check Nexis cable and Nexis connector. |
|
Flashing purple Off |
No data received from Nexis. |
Is data expected from the Nexis? If so, complete the following actions:
|
Machine LED
|
State |
Meaning |
Action |
|---|---|---|
|
Solid red |
Software upgrade required. |
Upgrade BM2 software. |
|
Flashing green |
Received data from machine. |
None. |
|
Flashing yellow |
High machine communications error rate. |
Check machine cable and machine connector. |
|
Flashing purple |
Ignition status change. |
Was an ignition state change expected? If not, check ignition cable, ignition connector, and signal applied to ignition input. |
Status LED
The expected steady state of the Status LED during normal operation is off (no colour).
|
State |
Meaning |
Action |
|---|---|---|
|
Flashing red Flashing white Flashing blue |
Software upgrade required. |
Upgrade BM2 software. |
|
Solid blue |
Software upgrade in progress. |
Do not remove power or Nexis communications until upgrade is complete. |
|
Flashing purple |
Unexpected system reset. |
Upgrade BM2 software. |
|
Solid red |
System error. |
Replace BM2. |
